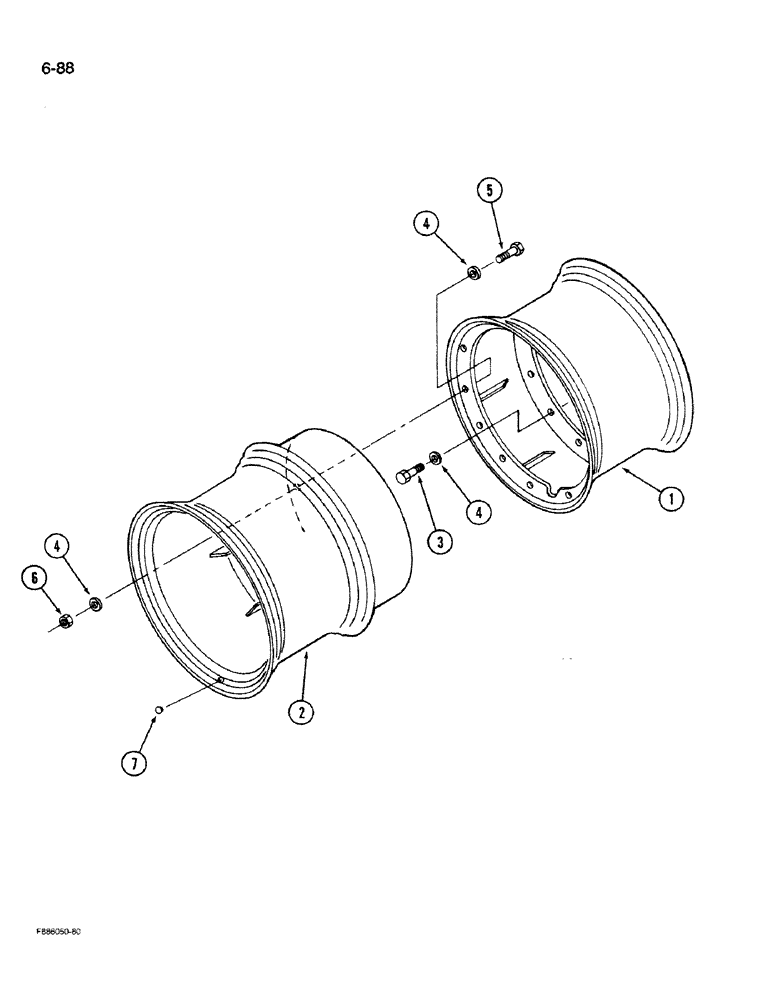

Запчасти Case IH 9270 (6-88) - WHEELS, HUB BOLTED DUALS (06) - POWER TRAIN

1

30-1295T1

RIM

WHEEL - inner, 20.8 x 38 inch, 18 inch width

4шт.

1

30-1486T1

RIM

WHEEL - inner, 23.1 x 34 inch, 20 inch width

4шт.

1

30-1485T1

RIM

WHEEL - inner, 24.5 x 32 inch, 21 inch width

4шт.

1

30-1223T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width

4шт.

1

30-1223T1

RIM

WHEEL - inner, 24.5 x 32 inch, 24 inch width

4шт.

1

30-1337T1

RIM

WHEEL - inner, 20.8 x 42 inch, 18 inch width

4шт.

1

30-1476T1

RIM

WHEEL - inner, 30.5 x 32 inch, 27 inch width

4шт.

1

30-1436T1

RIM

WHEEL - inner, 30.5 x 32, 30 inch width

4шт.

2

30-1291T1

RIM

WHEEL - dual, 20.8 x 38, 18 inch width, 8 inch dual spacing

4шт.

2

30-1191T1

RIM

WHEEL - dual, 23.1 x 34, 20 inch width, 8 inch dual spacing

4шт.

2

30-1051T1

RIM

WHEEL - dual, 23.1 x 34, 20 inch width, 8 inch dual spacing reinforced bead

4шт.

2

30-1192T1

RIM

WHEEL - dual, 24.5 x 32, 21 inch width, 8 inch dual spacing

4шт.

2

30-1193T1

RIM

WHEEL - dual, 24.5 x 32, 21 inch width, 4 inch dual spacing

4шт.

2

30-1217T1

RIM

WHEEL - dual, 24.5 x 32, 24 inch width, 8 inch dual spacing

4шт.

2

30-1222T1

RIM

WHEEL - dual, 24.5 x 32, 24 inch width, 4 inch dual spacing

4шт.

2

30-1215T1

RIM

WHEEL - dual, 24.5 x 32, 24 inch width, 8 inch dual spacing with reinforced bead

4шт.

2

30-1216T1

RIM

WHEEL - dual, 24.5 x 32, 24 inch width, 4 inch dual spacing with reinforced bead

4шт.

2

30-1338T1

RIM

WHEEL - dual, 20.8 x 42 inch, 18 inch dual spacing

4шт.

2

47-4529

RIM

WHEEL - dual, 30.5 x 32 inch, 27 inch width

4шт.

2

30-1212T1

RIM

WHEEL - outer, 30.5 x 32, 30 inch width, 8 inch dual spacing

4шт.

3

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, Grade 8

40шт.

4

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, hardened

136шт.

5

25738R1

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch, Grade 8

43шт.

6

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

48шт.

7

22-521

PLUG

- hole

8шт.
