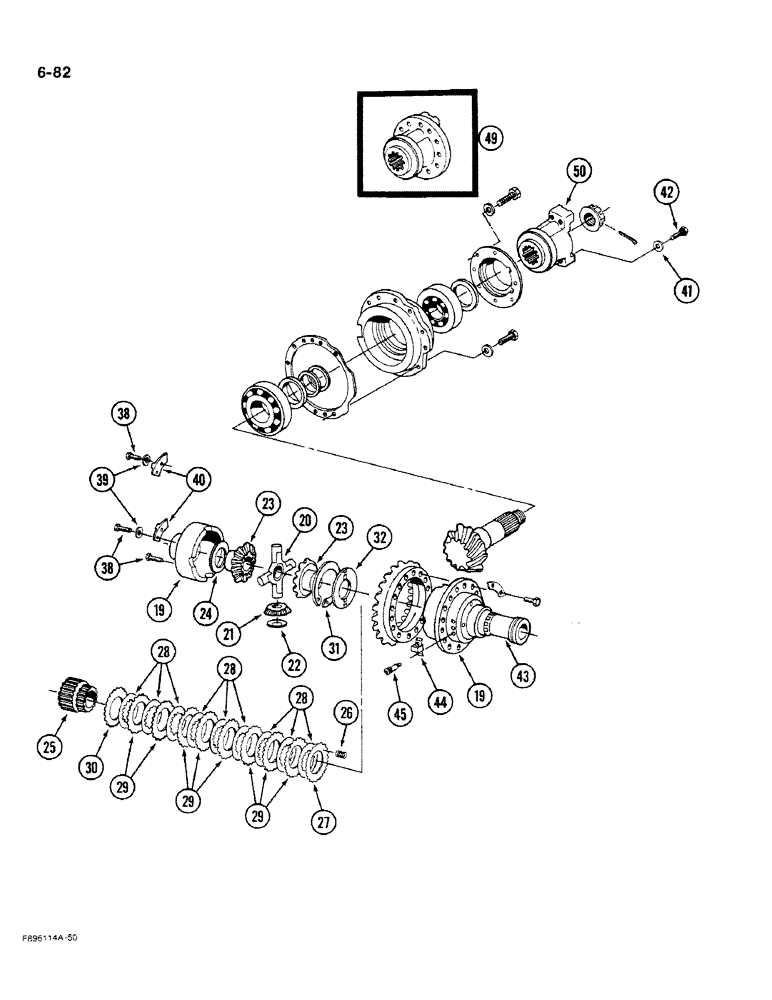

Запчасти Case IH 9270 (6-82) - AXLE ASSEMBLY, DIFFERENTIAL, K598.85/95 SERIES (CONTD) (06) - POWER TRAIN

90-6992T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, with traction control, Includes Ref. 19 - 50 and 1 - 17 on Figure 6-80

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear, with traction control, Includes Ref. 19 - 50 and 1 - 17 on Figure 6-80

1шт.

90-7180T91

DIFFERENTIAL

ASSEMBLY - front, with traction control, Includes: Ref. 19 - 45 and 1 - 17 on Figure 6-80

1шт.

90-7179T91

DIFFERENTIAL

ASSEMBLY - rear, with traction control, Includes: Ref. 19 - 45 and 1 - 17 on Figure 6-80

1шт.

90-7155T91

DIFFERENTIAL

ASSEMBLY - axle, front or rear, Includes: Ref. 19 - 32

1шт.

19

90-7153T91

DIFFERENTIAL

CASE - differential

1шт.

20

90-7159T1

DIFF. SPIDER

SPIDER - pinion gear

1шт.

21

90-7160T1

PINION

GEAR - pinion

4шт.

22

90-7161T1

WASHER

SPACER - cone, wear

4шт.

23

16-1559

PINION

GEAR - side

2шт.

24

90-7162T1

WASHER

- side gear

1шт.

25

90-7165T1

HUB

- splined

1шт.

26

90-7166T1

SPRING

- compression

16шт.

27

90-7167T1

THRUST WASHER

- thrust

1шт.

28

90-7168T1

DISC

PLATE - clutch, inner splined

11шт.

29

90-7169T1

DISC

PLATE - clutch, outer splined

10шт.

30

90-7170T1

THRUST WASHER

- thrust

1шт.

31

90-7172T1

RING, SNAP

RING - snap

1шт.

32

90-7171T1

WASHER

- differential side

1шт.

38

90-7154T1

SCREW

BOLT - flanged

12шт.

39

90-7156T1

WASHER

- flat

4шт.

40

90-7158T1

LARGE PLATE

BAFFLE - oil, front axle

2шт.

40

90-7157T1

LARGE PLATE

BAFFLE - oil, rear axle

2шт.

41

16-1586

SPRING WASHER

WASHER - flat, 8 mm

6шт.

42

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

6шт.

43

90-7164T1

SLEEVE

- clutch

1шт.

44

90-7173T1

LARGE PLATE

PLATE - oil bath

2шт.

45

90-7174T1

SCREW,CSK, M6 x 12mm, Cl 5.6

- flat, head, 6 x 12 mm

4шт.

49

90-6783T1

YOKE

- flanged, brake mount, front (Replaces 90-6566T1)

1шт.

50

1-6763

YOKE

- rear

1шт.
