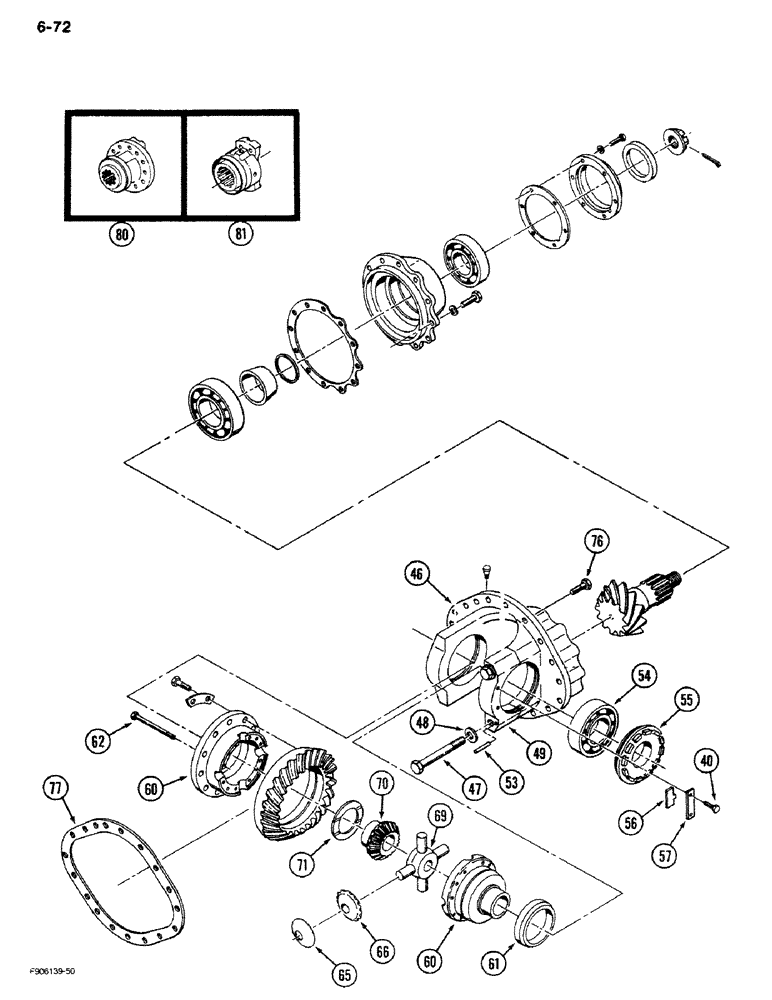

Запчасти Case IH 9270 (6-72) - DIFFERENTIAL ASSEMBLY, NO SLIP DIFFERENTIAL, STEERABLE AND RIGID PLANETARY AXLES (CONTD) (06) - POWER TRAIN

90-6556T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, Includes: Ref. 40 - 81 and 1 - 32 on Figure 6-70

1шт.

90-6557T91

AXLE HOUSING

AXLE ASSEMBLY - rear, Includes: Ref. 40 - 81 and 1 - 32 on Figure 6-70

1шт.

90-7233T91

DIFFERENTIAL

ASSEMBLY - front, Includes: Ref. 40 - 81

1шт.

90-7232T91

DIFFERENTIAL

ASSEMBLY - rear, Includes: Ref. 40 - 81

1шт.

40

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, Grade 10.9

8шт.

46

90-7231T1

HOUSING

ASSEMBLY - differential carrier, Includes: Ref. 47 - 49

1шт.

47

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

BOLT - hex

2шт.

48

90-4489T1

WASHER

- flat

2шт.

49

NSS

NOT SOLD SEPARAT

CAP - bearing retainer

1шт.

53

90-4485T1

DOWEL

PIN - dowel, 10 x 25 mm

1шт.

54

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - taper roller

2шт.

55

90-7230T1

SLOTTED NUT

NUT - bearing retainer

2шт.

56

16-1525

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1526

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

56

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut

1шт.

57

16-1524

LARGE PLATE

PLATE - locking

2шт.

90-7853T91

DIFFERENTIAL

ASSEMBLY - axle (front) (Replaces 90-7225T91), Includes: Ref. 60 - 71

1шт.

90-7224T91

DIFFERENTIAL

ASSEMBLY - axle (rear), Includes: Ref. 60 - 71

1шт.

90-7227T91

CAGE ASSY.

CASE ASSEMBLY - differential halves (front axle), Includes: Ref. 60 - 62

1шт.

90-7226T91

CAGE ASSY.

CASE ASSEMBLY - differential halve (rear axle), Includes: Ref. 60 - 62

1шт.

60

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

61

90-7229T1

BAFFLE

- oil (front axle)

1шт.

90-7228T1

BAFFLE

- oil (rear axle)

1шт.

62

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

BOLT - hex, 12 mm - 1.5 x 90 mm, Grade 10.9

12шт.

65

90-7161T1

WASHER

SPACER - cone, wear

4шт.

66

90-7160T1

PINION

GEAR - pinion

4шт.

69

90-7159T1

DIFF. SPIDER

SPIDER - pinion gear

1шт.

70

16-1559

PINION

GEAR - side

2шт.

71

90-7162T1

WASHER

SPACER - gear, 4.6 mm thick

2шт.

76

40-1102

SCREW,Hex, M12 x 1.75 x 40mm, Gr 10.9

BOLT - hex, 12 x 40 mm, Grade 10.9

18шт.

77

16-1531

GASKET

- differential (Order 1-1055, RTV sealant)

1шт.

80

90-6783T1

YOKE

- flanged, brake mount, front (Replaces 90-6566T1)

1шт.

81

1-6763

YOKE

- rear

1шт.
