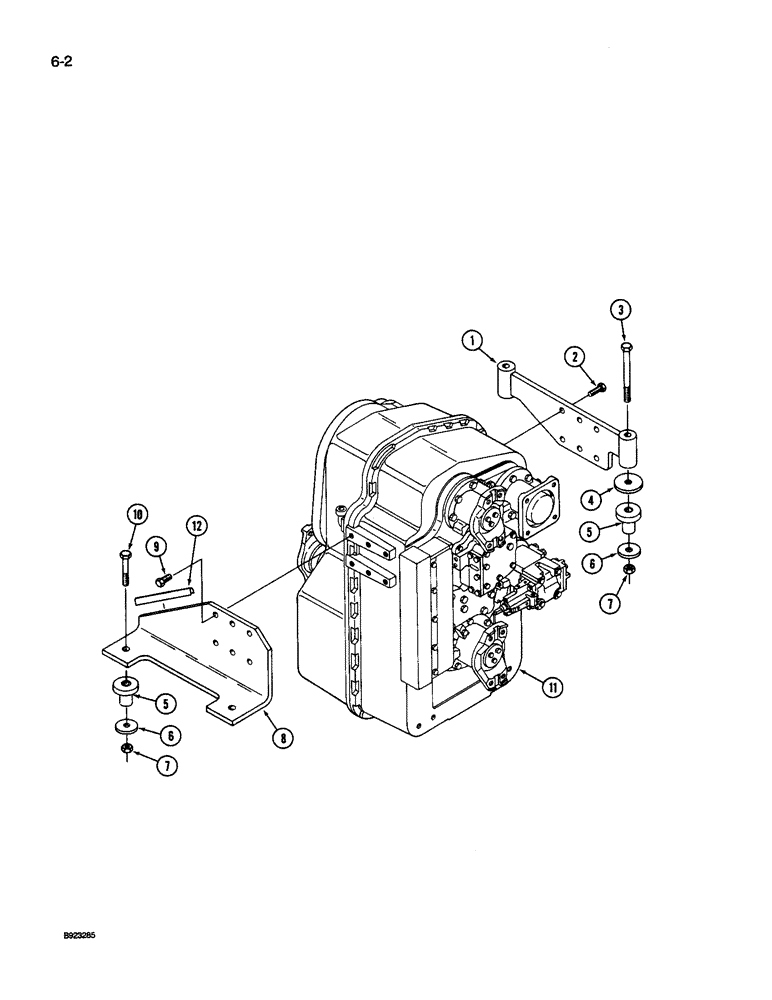

Запчасти Case IH 9260 (6-002) - TRANSMISSION MOUNTING, PRIOR TO P.I.N. JCB0028400 (06) - POWER TRAIN

1

90-6252T1

BRACKET

- transmission mounting, left

1шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-1/4 inch

6шт.

3

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch

2шт.

4

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, 3/4 x 3-3/4 x 3/16 inch

2шт.

5

47-4172

SHOCK ABSORBER

BUSHING - rubber, isolator

4шт.

6

19-5781

WASHER

- flat, 3/4 x 2-3/4 x 5/16 inch

4шт.

7

131-1252

LOCK NUT,7/8"-14, GC

NUT - hex lock, 3/4 inch NC

4шт.

8

90-6255T1

SUPPORT

BRACKET - transmission mounting, right

1шт.

9

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

6шт.

10

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

11

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - tractor, See Figures 6-006 through 6-034 for correct transmission

1шт.

12

31-1786

GROMMET

- protective, 10-1/2 inch (Order 31-1795T1 and, Serial Range: cut-length)

1шт.
