Запчасти Case IH 9260 (4-082) - TIME BASE FLASHER (04) - ELECTRICAL SYSTEMS

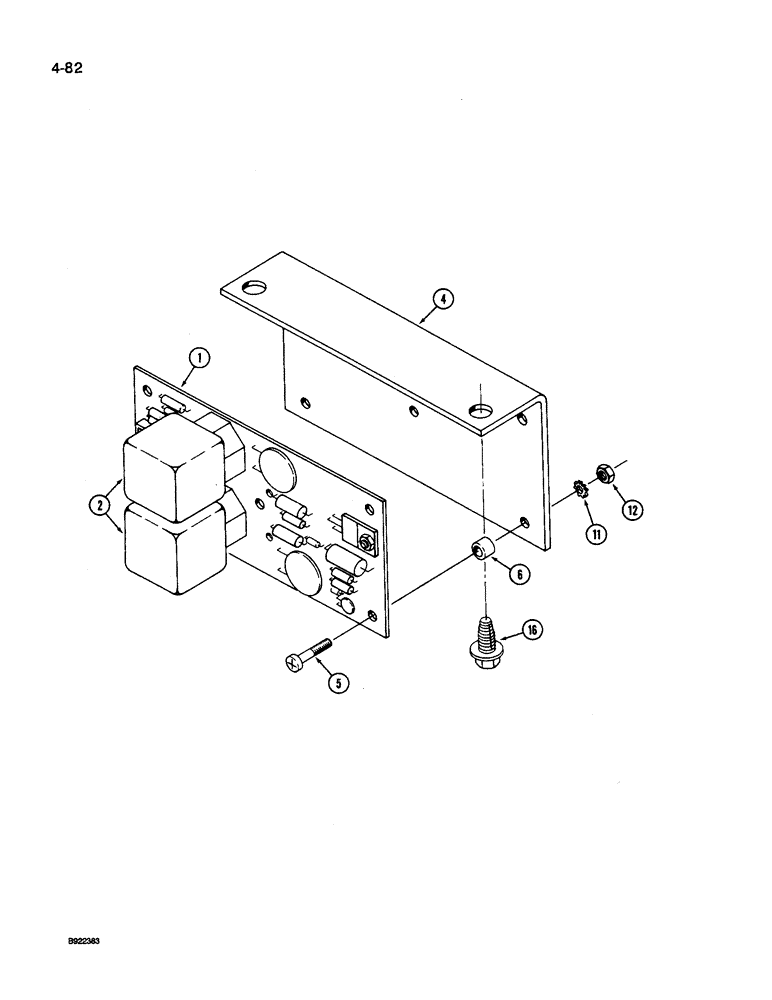

Схема запчастей Case IH 9260 - (4-082) - TIME BASE FLASHER (04) - ELECTRICAL SYSTEMS
1
6
4
11
12
2
16
5

Артикул

Название

Примечание

Количество

20-1954T93

FLASHER UNIT

FLASHER ASSEMBLY - time base, not available as an assembly, order component, Ref. 1 - 11, Includes: Ref. 1 - 11

1шт.

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-1954T93

1шт.

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

1

20-2123T3

BOARD, PRINTED CIRCU

BOARD - circuit, time base flasher, Includes: Ref. 2

1шт.

1

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-2123T3

1шт.

1

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

2

1983394C1

RELAY

- electrical (Replaces 1-7877)

2шт.

4

25-1000155

SUPPORT

BRACKET - mounting, circuit board

1шт.

5

159341

SCREW,Cross Pan Hd, #6 - 32 x 5/8"

- pan head machine, No. 6-32 x 5/8 inch

5шт.

6

25-1000174

SPACER

- circuit board

5шт.

11

19-601

LOCK WASHER,Ext, #6

WASHER - external lock, No. 6

5шт.

12

19-1013

NUT

- hex, No. 6-32

5шт.

16

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex flange tapping, 1/4 NC x 1/2 inch

2шт.

Выбрано товаров: 13
