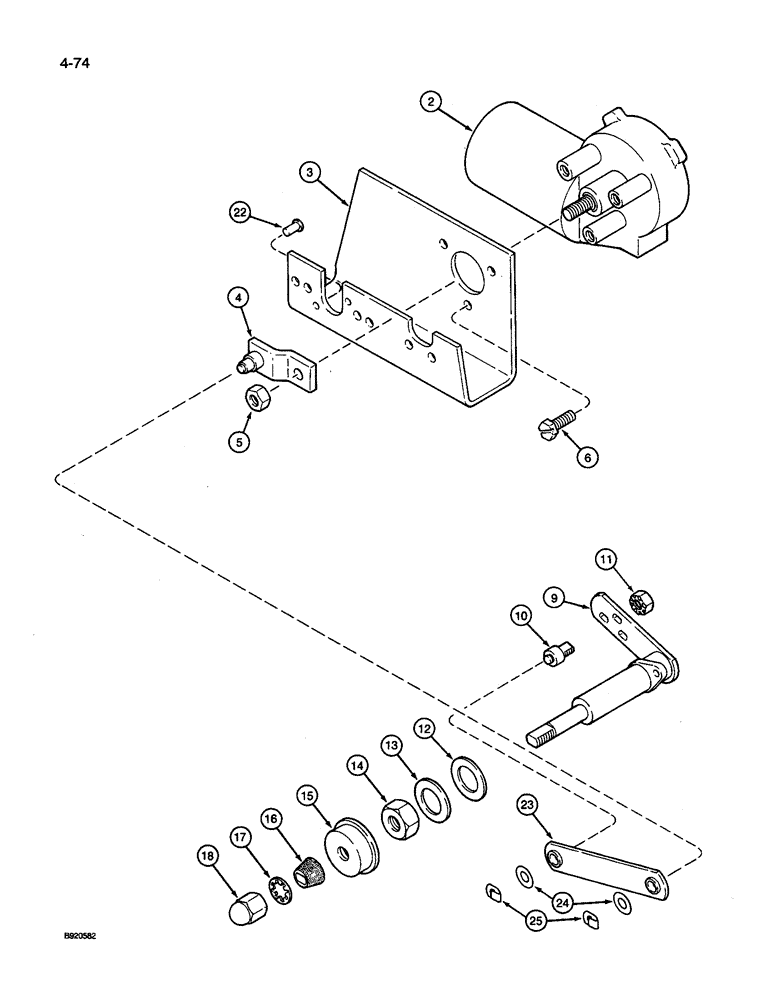

Запчасти Case IH 9260 (4-074) - WIPER DRIVE, REAR WINDOW, P.I.N. JCB0028400 AND AFTER (04) - ELECTRICAL SYSTEMS

60-6578T91

SMALL ELECTRIC MOTOR

DRIVE ASSEMBLY - wiper motor (Order components), Includes: Ref. 2 - 25

1шт.

2

60-6586T1

WIPER MOTOR

MOTOR - wiper drive

1шт.

3

60-6633T1

SUPPORT

BRACKET - wiper drive

1шт.

4

60-6626T1

LEVER

ARM - wiper drive

1шт.

5

60-6632T1

NUT

- drive arm retaining

1шт.

6

60-6631T1

SCREW

BOLT - slotted hex special, with lock washer

3шт.

60-6581T91

DRIVE ASSY.

SHAFT ASSEMBLY - wiper drive pivot, Includes: Ref. 9 - 18

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - drive pivot

1шт.

10

NSS

NOT SOLD SEPARAT

PIN - pivot shaft retaining

1шт.

11

NSS

NOT SOLD SEPARAT

NUT - pivot shaft retaining, with lock washer

1шт.

12

N6749

WASHER

- fiber

1шт.

13

N6750

WASHER

- flat, steel

1шт.

14

60-3497T1

NUT

- hex jam retaining

1шт.

15

N6752

CAP

- shaft, rubber

1шт.

16

N6753

BLOCK DRIVER

DRIVER - knurled

1шт.

17

60-6634T1

LOCK WASHER

WASHER - internal tooth lock

1шт.

18

60-6635T1

NUT

- retaining cap

1шт.

22

1-2686

SCREW,no

- pivot shaft retaining, with lock washer (Order 495-1108 screw and 492-11010 washer)

2шт.

23

D71427

LINK,85.85mm L

- connecting

1шт.

24

A22431

WASHER

- flat retaining

2шт.

25

D71414

CLIP

RETAINER - spring clip

2шт.
