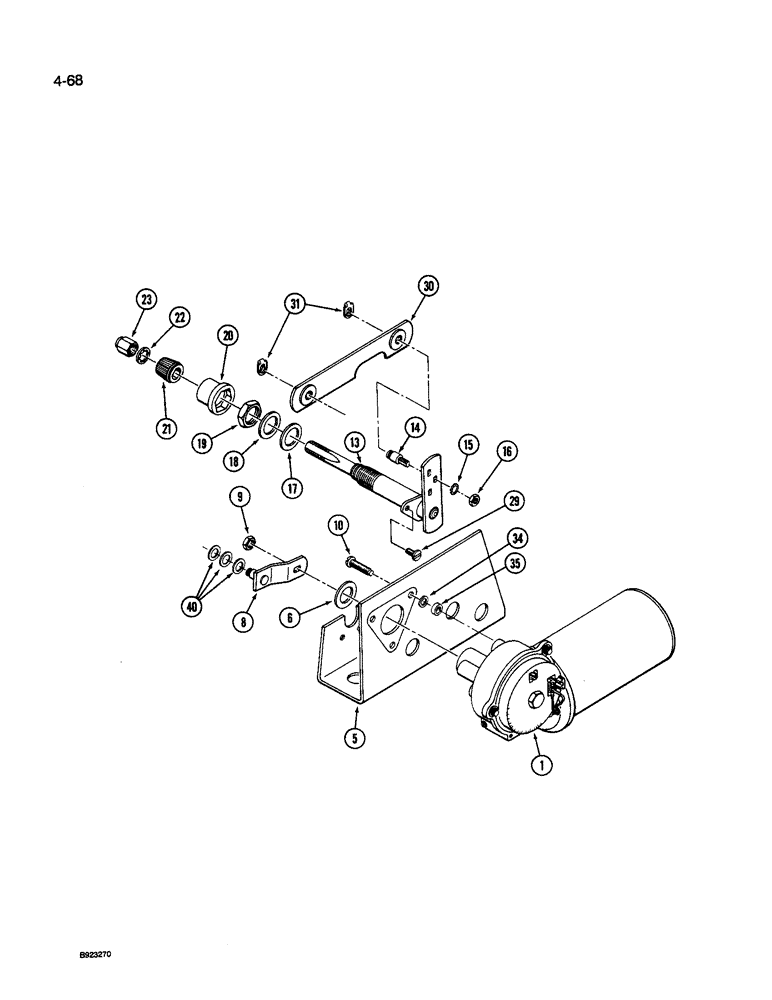

Запчасти Case IH 9260 (4-068) - WIPER DRIVE, FRONT WINDOWS, PRIOR TO P.I.N. JCB0027741 (04) - ELECTRICAL SYSTEMS

60-5908T91

WIPER MOTOR

DRIVE ASSEMBLY - wiper (Order components), Includes: Ref. 1 - 40

1шт.

1

129068A2

PACKAGE

MOTOR - wiper (Replaces 2-6866T1)

1шт.

5

D72850

BRACKET

- mounting, motor

1шт.

6

D71411

WASHER

- wave

1шт.

8

60-5914T1

LEVER

- drive

1шт.

9

F44452

LOCK NUT

- hex Keps

1шт.

10

D72849

SCREW

- round head machine

3шт.

2-6869T91

SHAFT ASSY.

DRIVE ASSEMBLY - shaft and pivot arm, Includes: Ref. 13 - 23

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - pivot arm drive

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - pivot arm drive shaft retaining

1шт.

15

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external lock, 1/4 inch

1шт.

16

129-121

NUT,1/4"-28, G5

- hex jam, 1/4 inch NF

1шт.

17

N6749

WASHER

- fiber, flat

1шт.

18

N6750

WASHER

- steel, flat

1шт.

19

60-3497T1

NUT

- hex jam

1шт.

20

N6752

CAP

- shaft, rubber

1шт.

21

N6753

BLOCK DRIVER

DRIVER - knurled, wiper arm

1шт.

22

60-6634T1

LOCK WASHER

WASHER - internal tooth lock

1шт.

23

60-6635T1

NUT

- retaining cap

1шт.

29

2-6870T1

SCREW

- pan head machine

1шт.

30

D71427

LINK,85.85mm L

- connecting

1шт.

31

D71414

CLIP

RETAINER - spring clip

2шт.

34

60-5913T1

SPACER

- motor

3шт.

35

19-6265T1

SPACER

- motor

3шт.

40

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch, 1 required if equipped with side wipers

1-3шт.
