Запчасти Case IH 9260 (4-060) - FRONT WINDOW WIPER (04) - ELECTRICAL SYSTEMS

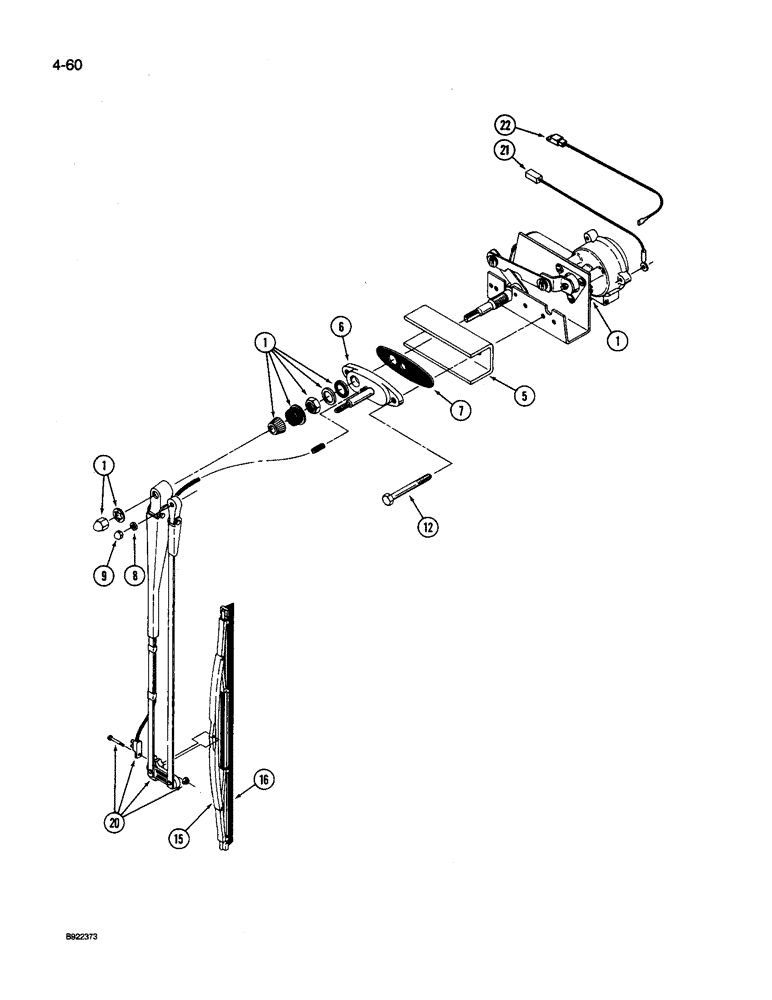

Схема запчастей Case IH 9260 - (4-060) - FRONT WINDOW WIPER (04) - ELECTRICAL SYSTEMS
1
12
8
22
7
1
15
9
5
20
6
21
1
16

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper, front window, See Figures 4-068 and 4-070 for correct wiper drive

1шт.

5

60-6528T1

SUPPORT

BRACKET - wiper mounting spacer (Replaces 2-2822T1)

1шт.

60-1436T91

PIVOT ASSY.

KIT - pivot, wiper blade, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

PIVOT - body and shaft, wiper blade (Order 60-1436T91)

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - pivot (Order 60-1436T91)

1шт.

8

2-4191T1

WASHER

- flat

1шт.

9

2-4192T1

NUT

- hex, cap

1шт.

12

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

12

414-440

BOLT,Hex, 1/4" - 28 x 2-1/2", Gr 5

- 1/4 NF x 2-1/2 inch

2шт.

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

FRAME - wiper blade

1шт.

16

2-4194T1

WIPER BLADE

BLADE - wiper, rubber, 18 inch

1шт.

20

60-1144T1

WIPER ARM

ARM - wiper, 17 inch

1шт.

21

20-1452T1

ELECTRICAL WIRE

WIRE - ground, with eyelet end

1шт.

22

60-6627T1

ELECTRICAL WIRE

WIRE - ground, with spade end

1шт.

Выбрано товаров: 15
