Запчасти Case IH 9260 (4-052) - ALTERNATOR WITH DEBRIS SCREEN (04) - ELECTRICAL SYSTEMS

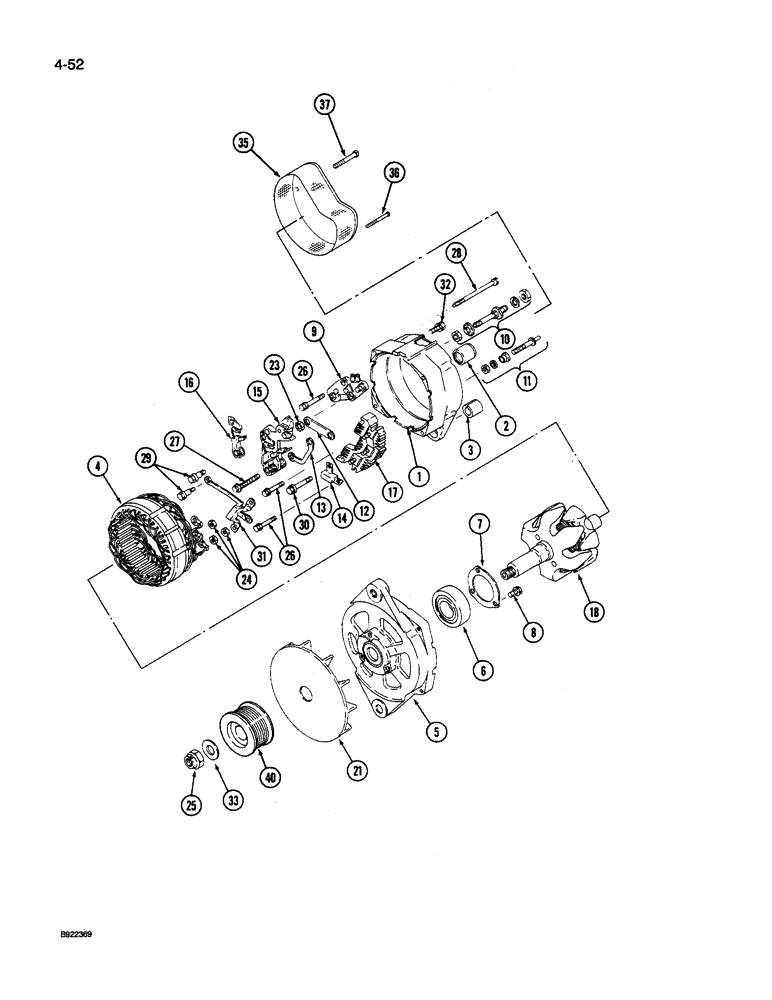

Схема запчастей Case IH 9260 - (4-052) - ALTERNATOR WITH DEBRIS SCREEN (04) - ELECTRICAL SYSTEMS
35
15
7
16
32
17
12
25
18
31
24
26
5
13
29
37
11
8
1
4
2
40
23
36
6
26
30
10
14
3
33
28
21
27
9

Артикул

Название

Примечание

Количество

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp (Replaces 1983221C1), Includes: Ref. 1 - 37

1шт.

1987560C1GV

ALTERNATOR

Value, 12V 125A

1шт.

1987560C1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 125 ampere

1шт.

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 12 Volt, 135 Amp

1шт.

91448C2

ALTERNATOR

ALTERNATOR N114V-40/110A

1шт.

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

91448C2GV

ALTERNATOR

Value, 14V, 110A

1шт.

1

10467269

FRAME

HOUSING - collector ring end, Includes: Ref. 2 & 3

1шт.

2

1987459C1

BEARING, ROLLER

BEARING - roller

1шт.

3

A49631

BUSHING

BUSHING, Mounting hinge

1шт.

4

1987457C1

STATOR

STATOR - alternator

1шт.

5

1987470C1

HOUSING

HOUSING - drive end, Includes: Ref. 6 - 8

1шт.

6

1987471C1

BEARING, BALL

BEARING - ball, drive end

1шт.

7

1987472C1

STOP

PLATE - retaining, bearing

1шт.

8

A48277

SCREW,#10 - 24 x 9/16"

SCREW - retaining plate, bearing

3шт.

9

1987454C1

GOVERNOR

REGULATOR - alternator

1шт.

10

1987466C1

TERMINAL CONNECTOR

KIT - terminal, battery

1шт.

11

1987467C1

TERMINAL CONNECTOR

KIT - terminal, relay

1шт.

12

1987476C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR - regulator to relay lamp

1шт.

13

1987456C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR - regulator mounting, Serial Range: screw-stud

1шт.

14

1987468C1

CAPACITOR

CAPACITOR AND BRACKET - alternator

1шт.

15

1987463C1

BRUSH HOLDER

HOLDER, BRUSH HOLDER ASSEMBLY - brush, Includes: Ref. 16

1шт.

16

1987464C1

BRUSH, COMMUTATOR

BRUSH BRUSH AND ARM - holder

2шт.

17

1987461C1

BRIDGE

RECTIFIER BRIDGE - alternator

1шт.

18

1987455C1

ROTOR

ROTOR - alternator

1шт.

21

1987474C1

FAN

FAN - alternator

1шт.

23

A45368

NUT

NUT - terminal

1шт.

24

225-14108

NUT,#8-32

NUT - hex, No. 8 NC

3шт.

25

A49635

NUT

NUT - shaft, drive end

1шт.

26

1987462C1

CAPTIVE WASHER SCREW

BOLT - hex washer, rectifier bridge retaining

3шт.

27

A48257

SCREW,#8 - 32 x 1.486"

SCREW - brush holder, retaining

1шт.

28

1987473C1

BOLT

BOLT - retaining, alternator

4шт.

29

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - retaining, regulator

2шт.

30

1987469C1

SCREW

SCREW - retaining, capacitor

1шт.

31

1987460C1

DIODE

DIODE - trio

1шт.

32

1987475C1

CAPTIVE WASHER SCREW

SCREW - hex washer, ground

1шт.

33

A40792

WASHER

WASHER - flat, shaft

1шт.

35

1987552C1

SCREEN

SCREEN - debris, alternator

1шт.

36

281-14428

SELF-TAP SCREW,Hex Wash Hd, #6 x 1 3/4"

SCREW - hex, 8-32 x 1-3/4 inch

1шт.

37

281-14728

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 3/4"

SCREW - hex, 1/4 NC x 1-3/4 inch

1шт.

40

A189616

PULLEY

PULLEY - alternator (9240 Tractor, See Figure 4-048)

1шт.

REF

INSTRUCTION

PULLEY - alternator (9250 and 9260 Tractor)

1шт.

Supplied with Cummins engine.

1шт.
