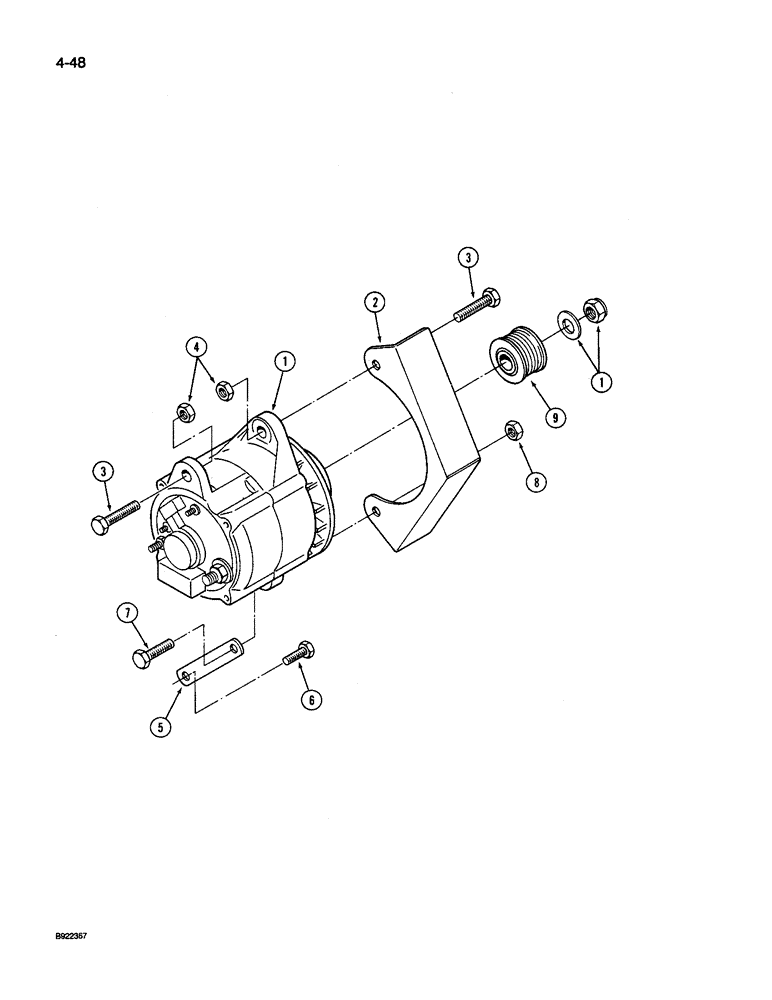

Запчасти Case IH 9260 (4-048) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, See Figures 4-050 and 4-052 for correct alternator

1шт.

2

70-5828T1

GUARD

SHIELD - alternator

1шт.

All parts listed above are used on 9240. On 9250 and 9260, only Ref. 2 is used. All other mounting parts are supplied with the engine.

1шт.

3

854-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 60 mm, class 10.9

2шт.

4

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10.9

2шт.

5

J911485

SUPPORT

BRACE - alternator

1шт.

6

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

9

A189616

PULLEY

- alternator (9240 Tractor)

1шт.

REF

INSTRUCTION

PULLEY - alternator, not shown (9250 and 9260 Tractor) (Pulley supplied with Cummins engine)

1шт.

90-3650T1

V-BELT,0.14" W x 34.50" L, 5 Ribs

Alternator, not shown (9250 and 9260 Tractor, See Figure 2-026) 0.14" W x 34.50" L, 5 Ribs

1шт.

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Alternator, Not Shown 9240 Tractor, See Figure 2-028 3.56 mm W x 1549.90 mm L, 8 Ribs

1шт.
