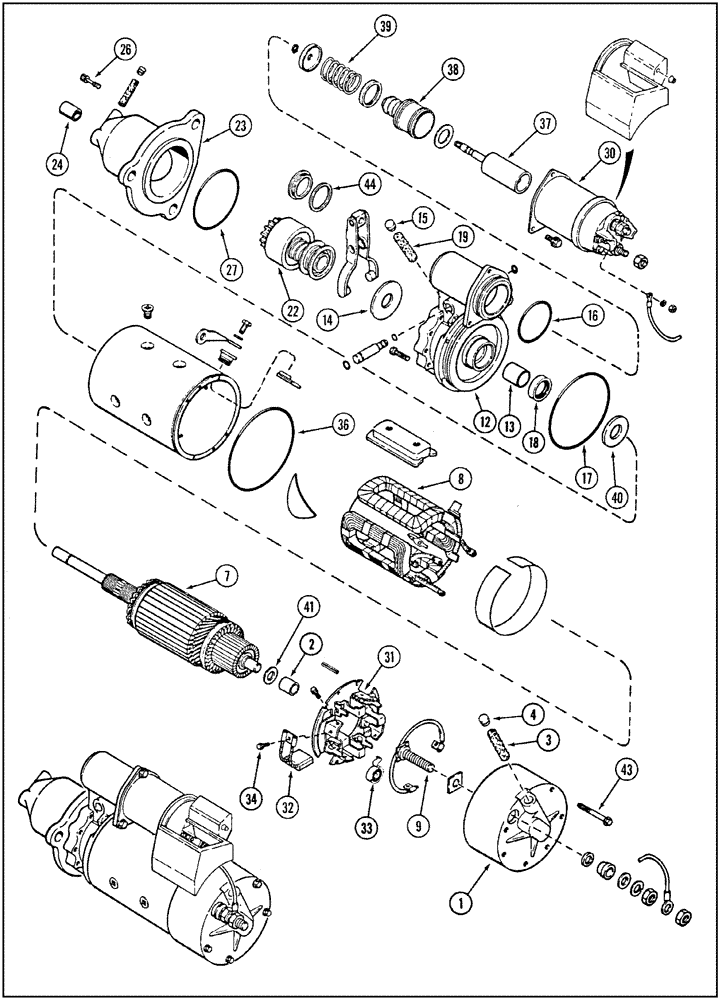

Запчасти Case IH 9260 (4-047A) - STARTER ASSEMBLY, 9250 AND 9260 TRACTORS, DELCO REMY, 107717A1 STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

107717A1

STARTING MOTOR

STARTER ASSEMBLY - Delco Remy, 12 volt, replacement, must also order L128826 terminal guard, Ref. 73 and 1546549C1 nut, Ref. 55 Figure 4-047C, Includes: Ref. 1 - 44 and 50 - 100 on Figure 4-047C

1шт.

1

A187561

COVER

ASSEMBLY - commutator end, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BUSHING - armature, commutator end

1шт.

Part of bushing kit P/N A187514.

1шт.

3

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of bushing kit P/N A187514.

1шт.

4

NSS

NOT SOLD SEPARAT

CUP - oil reservoir

1шт.

Part of bushing kit P/N A187514.

1шт.

7

142943A1

ROTOR

ARMATURE - starter

1шт.

8

142944A1

COIL

- field

1шт.

9

A49764

TERMINAL CONNECTOR

WIRE - terminal, commutator end

1шт.

12

A49772

HOUSING

- shift lever, Includes: Ref. 13 - 19

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - armature, lever housing

1шт.

Part of bushing kit P/N A187514.

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - shift lever housing, brake

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - oil reservoir

1шт.

Part of bushing kit P/N A187514.

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - seal, switch

1шт.

Part of bushing kit P/N A187514.

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - seal, lever housing

1шт.

Part of bushing kit P/N A187514.

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - oil lever housing

1шт.

Part of bushing kit P/N A187514.

1шт.

19

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of bushing kit P/N A187514.

1шт.

22

20-1343T1

DRIVE ASSY.

CLUTCH - drive

1шт.

23

A49773

HOUSING

- drive end, Includes: Ref. 24 - 27

1шт.

24

NSS

NOT SOLD SEPARAT

BUSHING - armature, drive housing

1шт.

Part of bushing kit P/N A187514.

1шт.

25

NSS

NOT SOLD SEPARAT

FELT - bearing oil

1шт.

Part of bushing kit P/N A187514.

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - oil reservoir

1шт.

Part of bushing kit P/N A187514.

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, drive housing

1шт.

Part of bushing kit P/N A187514.

1шт.

30

112848A1

SOLENOID

- magnetic, 12 volt

1шт.

31

142949A1

BRUSH HOLDER

PLATE - brush, Includes: Ref. 32 - 36

1шт.

142961A1

BRUSH SET

KIT - brush, starter, repair, Includes: Ref. 32 - 36

1шт.

32

NSS

NOT SOLD SEPARAT

BRUSH - starter

4шт.

33

NSS

NOT SOLD SEPARAT

SPRING - brush

4шт.

34

NSS

NOT SOLD SEPARAT

SCREW - brush lead

4шт.

36

NSS

NOT SOLD SEPARAT

O-RING - seal, commutator end

1шт.

37

A49757

PLUNGER

- solenoid

1шт.

38

A49589

BOOT

- plunger, cover

1шт.

39

A41242

SPRING

- plunger return

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/16 x 1-3/4 x 3/16 inch

1шт.

Part of bushing kit P/N A187514.

1шт.

41

NSS

NOT SOLD SEPARAT

WASHER - thrust

1шт.

Part of bushing kit P/N A187514.

1шт.

42

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF

1шт.

Part of bushing kit P/N A187514.

1шт.

43

NSS

NOT SOLD SEPARAT

SCREW - hex Keps

6шт.

Part of bushing kit P/N A187514.

1шт.

44

NSS

NOT SOLD SEPARAT

GASKET - inspection plug

1шт.

Part of bushing kit P/N A187514.

1шт.

A187514

KIT

- bushing, Includes: Ref. 2 - 4, 13, 15 - 19, 24 - 27 and 40 - 44

1шт.
