Запчасти Case IH 9260 (4-046) - STARTER ASSEMBLY, 9250 AND 9260 TRACTORS, DELCO REMY, 20-2384T91 STARTER ASSEMBLY (CONTD) (04) - ELECTRICAL SYSTEMS

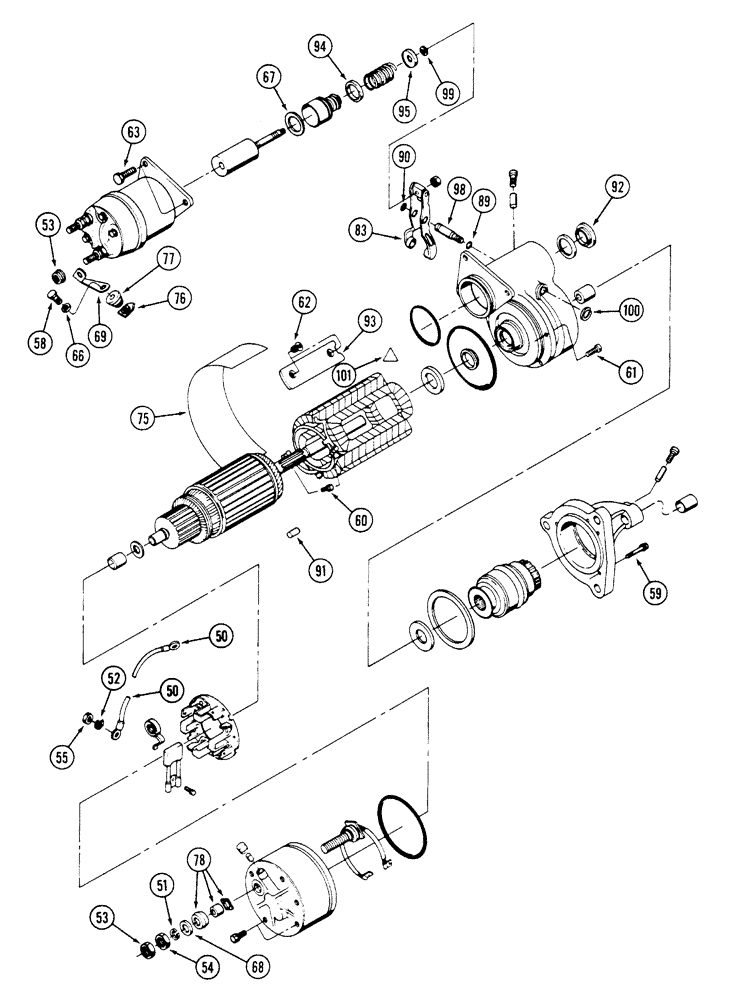

Схема запчастей Case IH 9260 - (4-046) - STARTER ASSEMBLY, 9250 AND 9260 TRACTORS, DELCO REMY, 20-2384T91 STARTER ASSEMBLY (CONTD) (04) - ELECTRICAL SYSTEMS
68
54
55
94
53
99
101
69
59
91
89
50
92
53
61
78
90
93
77
67
52
100
62
60
75
50
76
98
63
66
83
95
56
51

Артикул

Название

Примечание

Количество

20-2384T91

STARTING MOTOR

STARTER ASSEMBLY - 12 volt, Delco Remy, no longer available, order 107717A1 starter, L128826 shield and 1546549C1 nut, see Figures 4-047A and 4-047C, Includes: Ref. 50 - 101 and 1 - 44 on Fiugre 4-044

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

50

A47895

ELECTRICAL WIRE

WIRE - field coil, Serial Range: terminal-solenoid

1шт.

51

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

52

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

53

A47890

NUT

NUT - flange type, special, 1/2 inch NC

2шт.

54

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

1шт.

55

225-14210

NUT,#10-32

1шт.

58

A49751

BOLT,Hex, 1/4" - 20 x 9/16"

- field terminal connector

1шт.

59

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

60

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer

2шт.

61

276-60716

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - self-tapping, hex head, No. 4 NF x 3/8 inch

5шт.

62

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

- machine, flat Phillips, 3/8 NF x 21/32 inch

8шт.

63

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW - special

3шт.

66

A42100

WASHER

- flat, special

1шт.

67

A41922

WASHER

- plunger seat

1шт.

68

D30006

WASHER

- flat, special

1шт.

69

A49779

TERMINAL CONNECTOR

CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

75

A49767

RUBBER INSULATOR

INSULATOR - field coil terminal

1шт.

76

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal

1шт.

77

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal

1шт.

78

A49768

KIT

- insulator, terminal

1шт.

83

NSS

NOT SOLD SEPARAT

LEVER - shift

1шт.

Part of shift lever kit P/N 33-1031T91.

1шт.

89

NSS

NOT SOLD SEPARAT

O-RING - seal, shift lever rod

1шт.

Part of shift lever kit P/N 33-1031T91.

1шт.

90

NSS

NOT SOLD SEPARAT

O-RING - seal, shift lever rod

1шт.

Part of shift lever kit P/N 33-1031T91.

1шт.

91

A49753

PIN, SPLIT (COTTER)

PIN - roll, end cover locating, spring

1шт.

92

R21587

PLUG

inspection, lever housing

1шт.

93

R15115

SHOE

- pole, starter

4шт.

94

A43380

BACK-UP RING

SEAT - plunger spring

1шт.

95

22-1056

RETAINER

SEAT - spring

1шт.

98

NSS

NOT SOLD SEPARAT

SHAFT - shift lever

1шт.

Part of shift lever kit P/N 33-1031T91.

1шт.

99

20-2112T1

RING, SNAP

RING - snap, plunger

1шт.

100

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

Part of shift lever kit P/N 33-1031T91.

1шт.

101

A41977

RUBBER INSULATOR

INSULATOR - field coil

1шт.

33-1031T91

LEVER

KIT - shift lever, Includes: Ref. 83 - 90, 98 and 100

1шт.
