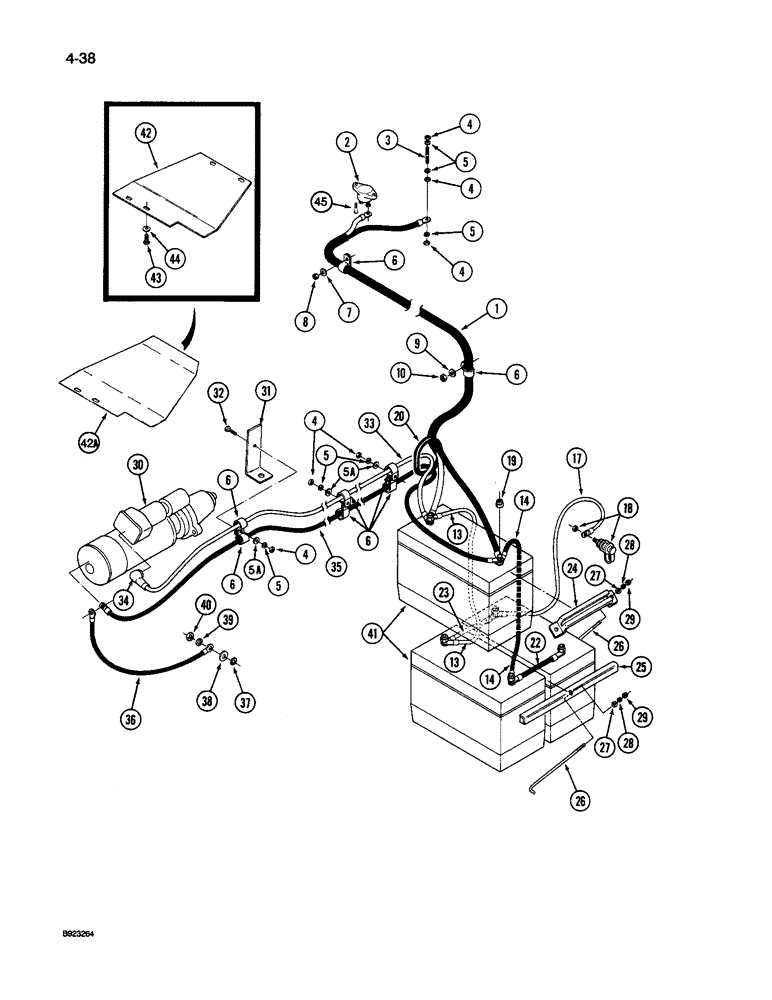

Запчасти Case IH 9260 (4-038) - BATTERY AND CABLES, 9250 AND 9260 TRACTOR (04) - ELECTRICAL SYSTEMS

1

20-1972T1

HARNESS

HARNESS - cab power

1шт.

2

20-2041T1

CIRCUIT-BREAKER

BREAKER - circuit, electrical

1шт.

3

60-1880T1

STUD

STUD - ground

1шт.

4

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

6шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

5a

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

6

T50104

CLAMP

CLAMP - harness retaining (Replaces 299416C1)

8шт.

7

495-21038

WASHER,5/16"

WASHER, (flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

8

27254R1

NUT

NUT - hex lock, 5/16 inch NC

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

10

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

13

20-2094T2

CABLE

CABLE - battery, jumper, positive

1шт.

14

1-4965

CABLE

CABLE - battery, jumper, negative

1шт.

17

20-2425T1

CABLE

CABLE - battery to terminal stud

1шт.

18

1964554C1

TERMINAL

STUD - terminal, jump start (Replaces 582785C91)

1шт.

19

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex lock, 3/8 inch NC

6шт.

20

31-2493

HOSE

GROMMET - cable protective, 11-1/2 inch (Order 31-1785T1 and, Serial Range: cut-length)

1шт.

22

20-1744T1

CABLE

CABLE - battery, jumper, negative

1шт.

23

20-1743T1

CABLE

CABLE - battery, jumper, positive

1шт.

24

70-5525T1

SUPPORT

BRACKET - retaining, battery

1шт.

25

70-5526T1

SUPPORT

BRACKET - angle, battery

1шт.

26

70-5527T1

ROD

ROD - retaining, battery

3шт.

27

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

29

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

3шт.

30

20-2384T91

STARTING MOTOR

STARTER - engine, See Figures 4-044 and 4-046

1шт.

30

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

30

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

31

70-4739T1

SUPPORT

BRACKET - support, clamp

1шт.

32

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/2", G5

1шт.

33

20-2347T1

CABLE

CABLE -, Serial Range: battery-starter

1шт.

34

20-2424T1

BOOT

BOOT - cable end

1шт.

35

60-6790T1

CABLE

CABLE - battery to starter ground

1шт.

36

60-6785T1

CABLE

CABLE - starter, ground (Replaces 22-33)

1шт.

37

493-41065

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external lock, 5/8 inch NC

1шт.

38

495-11053

WASHER,1/2", SAE

WASHER - flat, 1/2 x 1-1/4 x 1/16 inch

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

40

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

41

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

3шт.

42

60-4661T1

COVER

COVER - power supply, used on cabs without radiused corners for glass

1шт.

42a

60-6867T1

COVER

COVER - power supply, used on cabs with radiused corners for glass

1шт.

43

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT - hex, 1/4 NC x 3/4 inch

2-4шт.

44

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2-4шт.

45

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - pan head machine, No. 10-24 x 3/4 inch

2шт.
