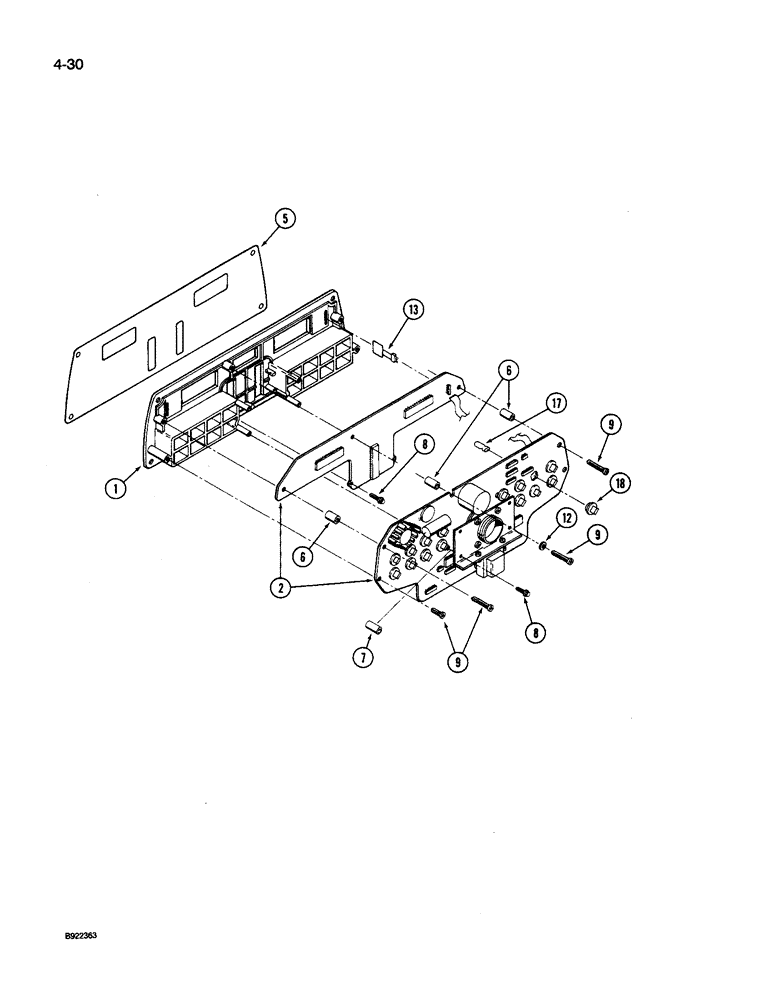

Запчасти Case IH 9260 (4-030) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

60-6135T92

INSTRUMENT CLUSTER

CLUSTER ASSEMBLY - instrument, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

DASH - instrument cluster

1шт.

2

NSS

NOT SOLD SEPARAT

BOARD - printed circuit, instrument cluster

1шт.

5

60-6344T1

DECAL

- instrument cluster

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - circuit board

3шт.

7

NSS

NOT SOLD SEPARAT

SPACER - circuit board

4шт.

8

NSS

NOT SOLD SEPARAT

SCREW - flanged tap, No. 3 x 3/8 inch

6шт.

9

NSS

NOT SOLD SEPARAT

SCREW - pan head tap, No. 8 x 1-1/8 inch

5шт.

12

NSS

NOT SOLD SEPARAT

WASHER - flat, No. 8

1шт.

13

25-9000262

IGNITION SWITCH

SWITCH - instrument cluster

2шт.

17

W10478

LAMP

BULB - lamp, No. 194

16шт.

18

20-1178T1

HOLDER

SOCKET - bulb

16шт.
