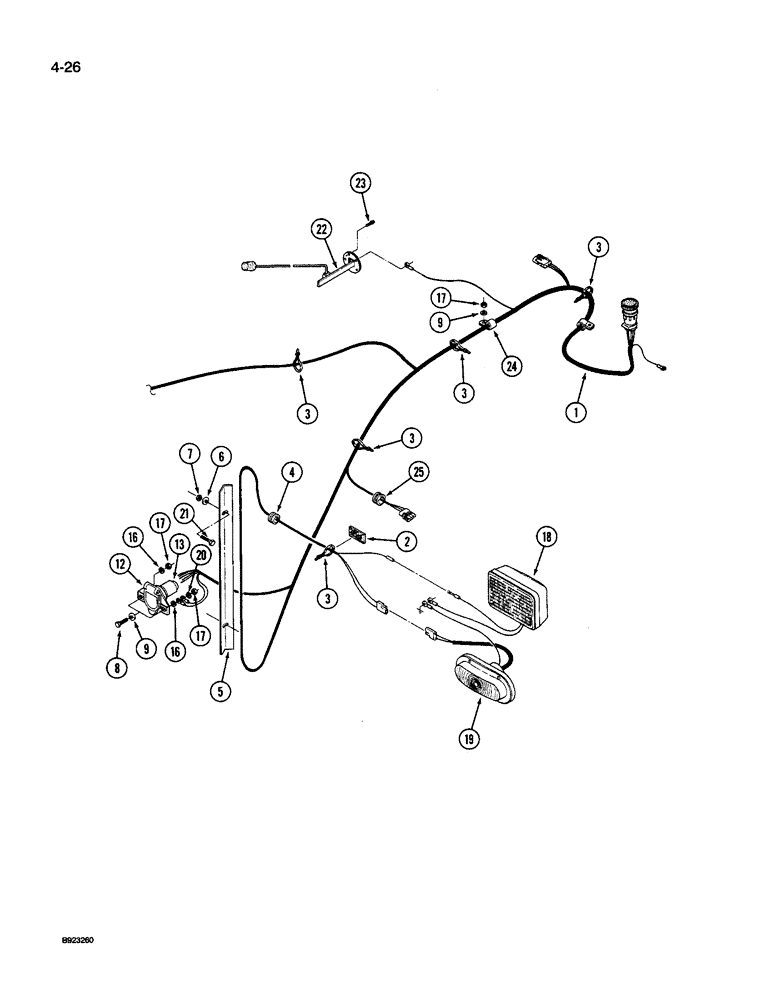

Запчасти Case IH 9260 (4-026) - REAR FRAME HARNESS, 9240 AND 9260 TRACTOR (04) - ELECTRICAL SYSTEMS

1

60-6787T1

HARNESS

- rear frame (Replaces 60-6442T2)

1шт.

2

22-823

MOUNT

MOUNT - strap, adhesive backed

2шт.

3

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

4

31-2242

GROMMET

- harness

2шт.

5

51-366

PROTECTOR

GUARD - wire

2шт.

6

495-11028

WASHER,1/4", SAE

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

12

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - socket (Replaces A145795)

3шт.

13

A169283

BOOT

- rubber

1шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

18

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood, See Figure 4-054

2шт.

19

20-1308T91

LAMP, TAIL

LAMP ASSEMBLY - tail, See Figure 4-056

2шт.

20

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

21

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

4шт.

22

REF

INSTRUCTION

SENSOR - fuel, See Figure 3-010 for correct sensor

2шт.

23

463-3108

SCREW,Hex Wash Hd, #10-24 x 1/2"

- hex washer head, No.10-24 x 1/2 inch

5шт.

24

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

25

1-1511

GROMMET

- wire

1шт.
