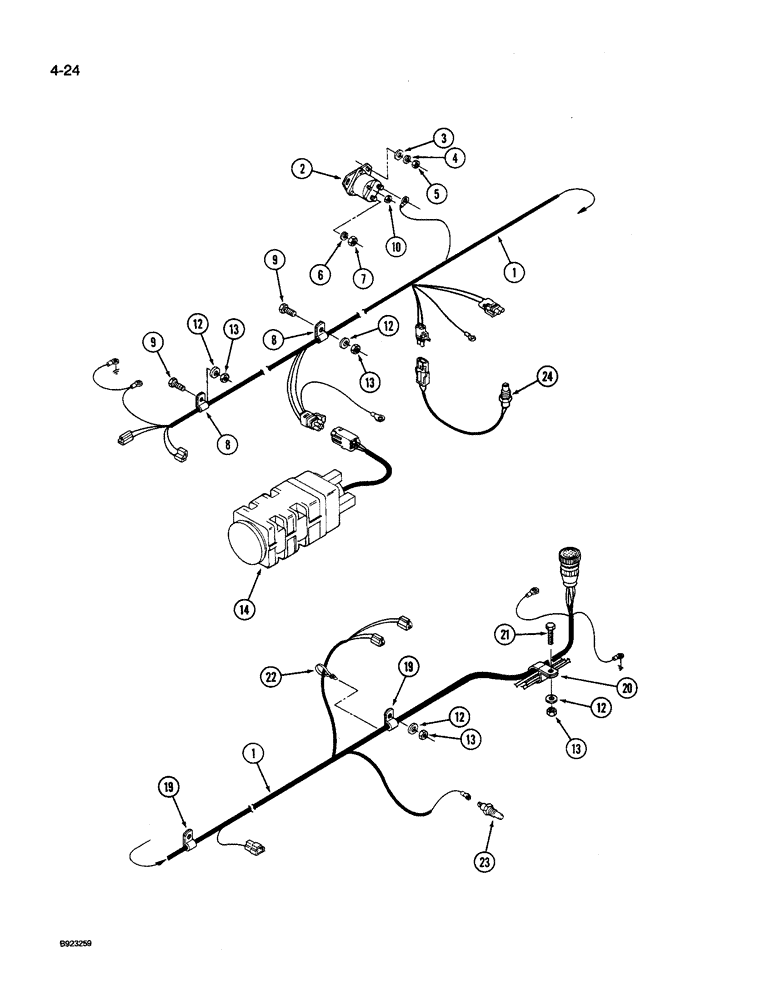

Запчасти Case IH 9260 (4-024) - FRONT FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6727T1

HARNESS

ASSEMBLY - front frame (Replaces 60-6450T2)

1шт.

2

A39079

SOLENOID

SWITCH - magnetic (Replaces 121613C1)

1шт.

3

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

8

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

10

19-481

SERRATED NUT

- Keps, No. 10-32

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

7шт.

13

425-106

NUT,3/8"-16, Cl 5

7шт.

14

REF

INSTRUCTION

SENSOR - speed, ground, See Figure 4-084

1шт.

19

31-1776

MOUNTING CLIP

CLAMP - retaining (Replaces 31-2488)

4шт.

20

31-1427

MOUNTING CLIP

CLAMP - retaining

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

23

20-1989T1

SWITCH

- temperature

1шт.

24

1964538C1

SWITCH

- temperature

1шт.
