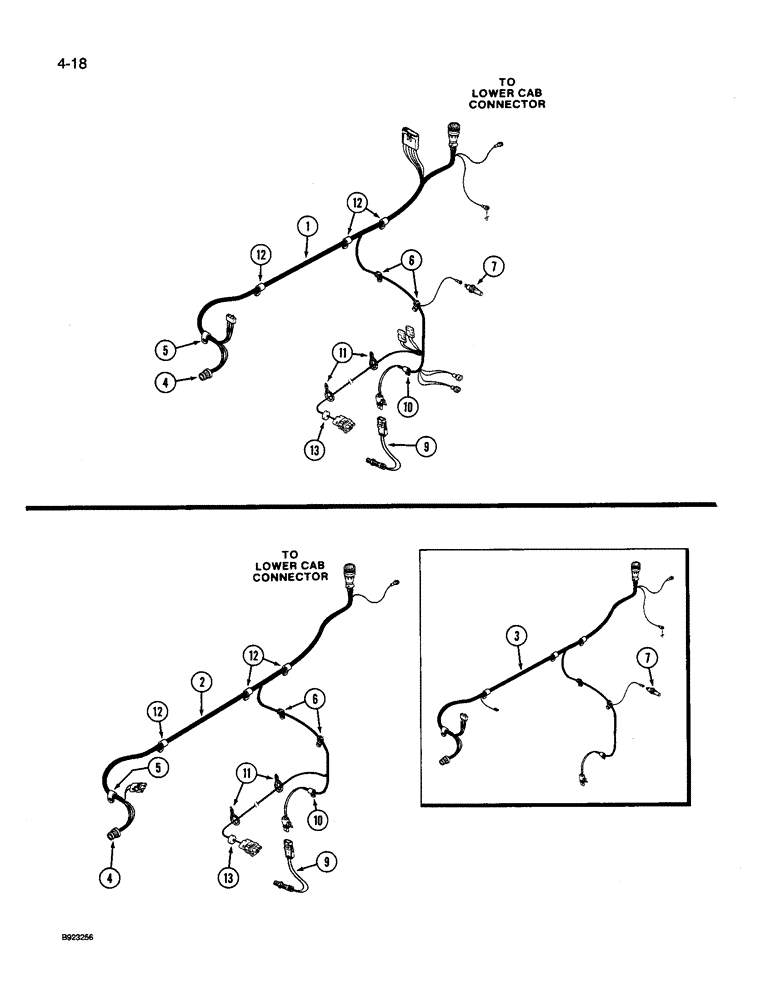

Запчасти Case IH 9260 (4-018) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

60-6448T1

HARNESS

ASSEMBLY - transmission (9240 and 9260 Tractor with power shift), Includes: Ref. 4

1шт.

2

60-6725T1

HARNESS

ASSEMBLY - transmission (9250 Tractor with power shift) (P.I.N. JCB0028400 and after), Includes: Ref. 4

1шт.

3

60-6092T3

HARNESS

ASSEMBLY - transmission (9250 Tractor with power shift) (Prior to P.I.N. JCB0028400), Includes: Ref. 4

1шт.

4

60-6638T1

PLUG

CONNECTOR - male plug

1шт.

5

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

6

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining (9240 and 9260 Tractor)

2шт.

6

31-1775

CLAMP

- retaining (9250 Tractor)

2шт.

7

47-4181

IGNITION SWITCH

SWITCH - temperature

1шт.

9

60-6085T1

SENSOR

- magnetic, MPH

1шт.

10

31-1862

CLAMP

- retaining

1шт.

11

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

12

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining (9240 and 9260 Tractor)

3шт.

12

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining (9250 Tractor)

3шт.

13

1-1511

GROMMET

- wire protection (9240 and 9260 Tractor)

1шт.
