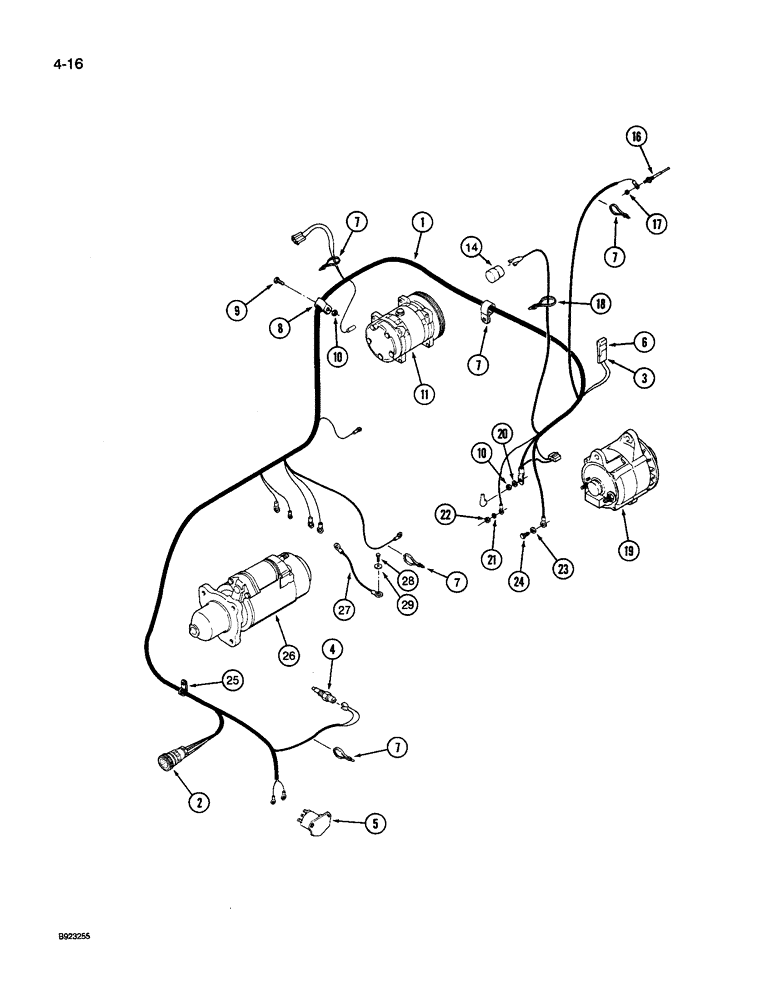

Запчасти Case IH 9260 (4-016) - ENGINE HARNESS, 9250 AND 9260 TRACTOR (04) - ELECTRICAL SYSTEMS

1

60-6726T1

HARNESS

HARNESS ASSEMBLY - engine (Replaces 60-6447T1), Includes: Ref. 2 & 3

1шт.

Use 60-6975T1 harness for SN 31850 and after update for use of HFC 134A refrigerant

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

1шт.

3

60-6639T1

DIODE ELEMENT

DIODE - alternator connector

1шт.

4

20-1676T2

TEMPERATURE SENDER

SWITCH - temperature, sender

1шт.

5

A39079

SOLENOID

SWITCH - magnetic (Replaces 121613C1), See Figure 4-024

1шт.

6

60-6251T1

DIODE

DIODE - electrical

1шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

1шт.

8

T50104

CLAMP

CLAMP - harness retaining (Replaces 299416C1)

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT - hex, 5/16 NC x 5/8 inch

1шт.

10

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

11

60-2921T94

AIRCOND. COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioner, See Figure 9-120

1шт.

11

60-2921T94R

REMAN-A/C COMPRESSOR

9250 (9/90-5/95), 9260 (10/90-10/94)

1шт.

11

60-2921T94C

CORE-A/C COMPRESSOR

Return Part Number

1шт.

14

A172784

RESTRICTION SWITCH

SWITCH, air restriction

1шт.

16

A145513

SENSOR

SENSOR - level, coolant

1шт.

17

19-481

SERRATED NUT

NUT - hex Keps lock, No. 10-32

1шт.

18

19-135

CABLE TIE

CABLE STRAP STRAP - nylon

2шт.

19

REF

INSTRUCTION

ALTERNATOR - engine, See Figures 4-050 and 4-052 for correct alternator

1шт.

20

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

21

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

22

225-14110

NUT,#10-24

NUT, #10-24

1шт.

23

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4 inch

1шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT - hex, 1/4 NC x 1/2 inch

1шт.

25

31-1775

CLAMP

CLAMP - retaining

1шт.

26

20-2384T91

STARTING MOTOR

STARTER - engine, See Figures 4-044 and 4-046

1шт.

26

140855A3R

REMAN-STARTER,12V

Remanufactured Starter 12 volt, 42MT

1шт.

26

140855A3C

CORE-STARTER,12V

Return Part Number, Starter 12 volt, 42MT

1шт.

27

60-6862T1

CABLE

CABLE - ground, starter

1шт.

28

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 20, 8.8, Full Thd

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.
