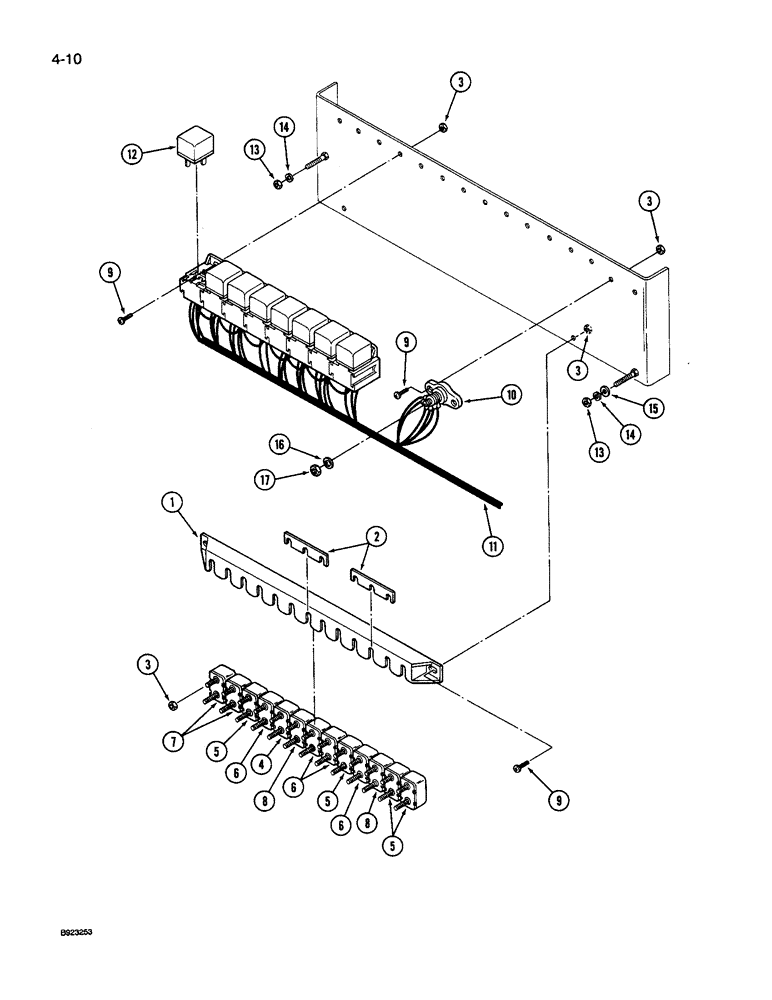

Запчасти Case IH 9260 (4-010) - OVERHEAD CIRCUIT BREAKERS (04) - ELECTRICAL SYSTEMS

60-6754T91

CIRCUIT BREAKER

BREAKER ASSEMBLY - cab circuit (Replaces 60-6519T92), not available as an assembly, order components, Includes: Ref. 1 - 8

1шт.

1

22-674

BRACKET

- circuit breaker

1шт.

2

22-676

BREAKER

CONNECTOR - circuit breaker

2шт.

3

19-481

SERRATED NUT

- hex Keps, No. 10-32

1шт.

4

22-809

BREAKER

CIRCUIT BREAKER - 5 ampere

1шт.

5

22-670

BREAKER

CIRCUIT BREAKER - 10 ampere

4шт.

6

22-671

BREAKER

CIRCUIT BREAKER - 15 ampere

4шт.

7

245765C1

CIRCUIT-BREAKER,30A

CIRCUIT BREAKER - 30 ampere

2шт.

8

22-672

BREAKER

CIRCUIT BREAKER - 20 ampere

2шт.

9

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- pan head machine, No. 10 NC x 1/2 inch

1шт.

10

20-1451T1

BLOCK

- junction

1шт.

11

REF

INSTRUCTION

HARNESS - main, cab or ROPS, See Figures 4-002 and 4-004 for correct harness

1шт.

12

1983394C1

RELAY

- electrical (Replaces 1-7877)

7шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

16

19-5577

LOCK WASHER

- lock, 3/8 inch brass

1шт.

17

115772

NUT

- hex brass, 3/8 inch NC

1шт.
