Запчасти Case IH 9260 (4-008) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS

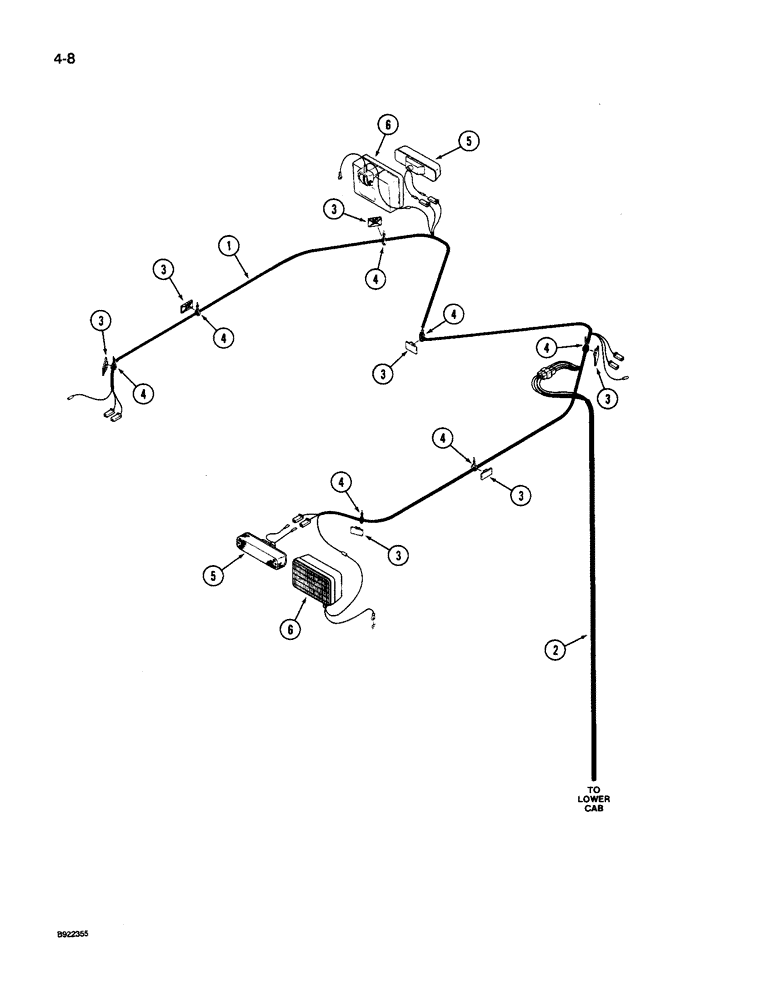

Схема запчастей Case IH 9260 - (4-008) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS
3
3
3
6
4
6
4
4
3
3
5
1
4
5
3
3
4
4
4
2

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

- overhead

1шт.

2

60-6452T2

HARNESS

- main ROPS, See Figure 4-004

1шт.

3

22-823

MOUNT

MOUNT - strap, adhesive backed

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

22-665T1

LIGHT ASSY.

LAMP ASSEMBLY - warning, See Figure 4-056

4шт.

6

20-1730T91

LAMP, WORK

LAMP ASSEMBLY - flood, See Figure 4-054

4шт.

Выбрано товаров: 6
