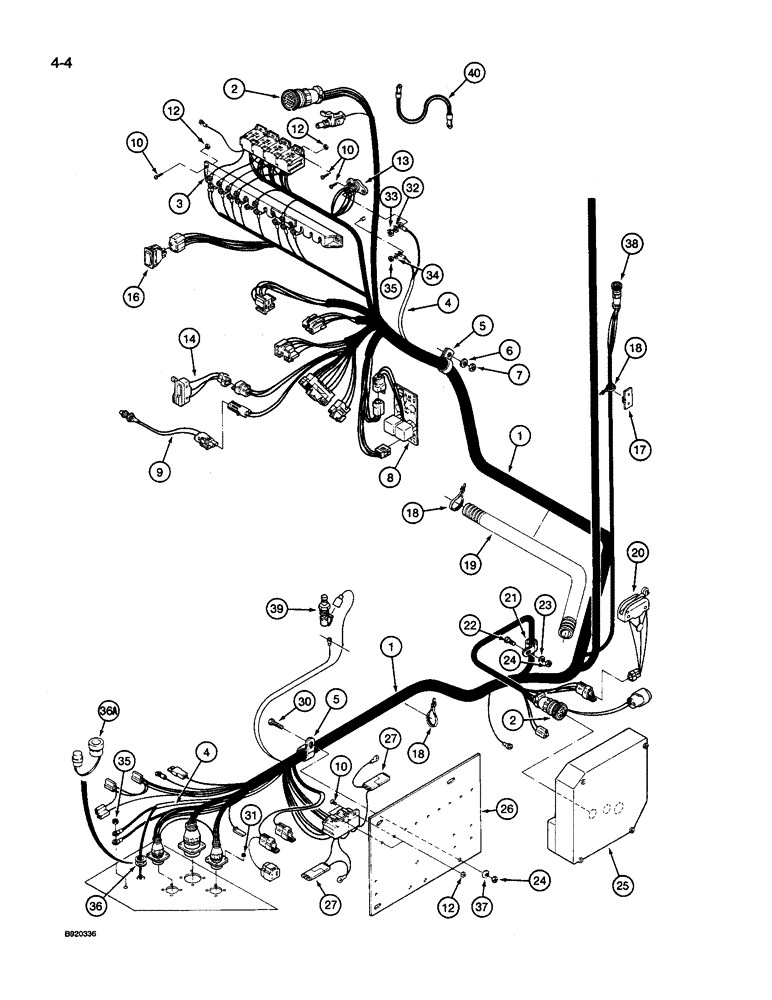

Запчасти Case IH 9260 (4-004) - LOWER ROPS HARNESS, POWER SHIFT (04) - ELECTRICAL SYSTEMS

1

60-6452T2

HARNESS

ASSEMBLY - ROPS main, Includes: Ref. 2

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

22-674

BRACKET

- mounting, circuit breaker, See Figure 4-010

1шт.

4

60-6301T1

HARNESS

- relay power (Prior to P.I.N. JCB0028400)

1шт.

4

60-6803T1

HARNESS

- relay power (P.I.N. JCB0028400 and after)

1шт.

5

31-1349

MOUNTING CLIP

CLAMP - retaining, harness

2шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

7

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

8

20-1954T93

FLASHER UNIT

FLASHER ASSEMBLY - time base (Order components, See Figure 4-082)

1шт.

8

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-1954T93

1шт.

8

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

9

60-6027T1

SENSOR

- proximity, See Figure 6-042

1шт.

10

459-5108

SCREW,Slotted Pan Hd, #10-32 x 1/2", G5

- pan head machine, No. 10-32 x 1/2 inch

8шт.

12

19-481

SERRATED NUT

- Keps, No. 10-32

8шт.

13

20-1451T1

BLOCK

- junction

1шт.

14

20-2340T91

IGNITION SWITCH

SWITCH - micro, See Figure 6-042 (Order 20-2333T1 switch and 60-2666T1 wire)

1шт.

16

1964752C1

SWITCH

- lamp

1шт.

17

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

19

50-2962T1

CONDUIT

PROTECTOR - flexguard (Order S119717 and, Serial Range: cut-length)

1шт.

20

60-6059T91

IGNITION SWITCH

SWITCH - neutral, shift control, See Figure 6-038

1шт.

21

T50104

CLAMP

- harness retaining (Replaces 299416C1)

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

24

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

25

REF

INSTRUCTION

CONTROLLER ASSEMBLY - transmission, See Figure 6-036, Ref. 3 for correct controller

1шт.

26

60-5052T2

LARGE PLATE

PLATE - mounting, relay, See Figure 4-012

1шт.

27

22-738

DIODE

- electrical

2шт.

30

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

31

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6-32

12шт.

32

19-5577

LOCK WASHER

- lock, 3/8 inch

1шт.

33

115772

NUT

- hex brass, 3/8 inch NC

1шт.

34

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

36

D37936

GROMMET

- floor plate (Prior to P.I.N. JCB0028400)

1шт.

36a

60-6853T1

BUSHING

- strain relief, floor plate (P.I.N. JCB0028400 and after)

1шт.

37

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

38

60-6127T1

CONNECTION

LOCK RING - connector

1шт.

39

245175C1

SWITCH

- park brake, See Figure 7-004

1шт.

40

60-6804T2

CABLE

STRAP - ground, ROPS

1шт.
