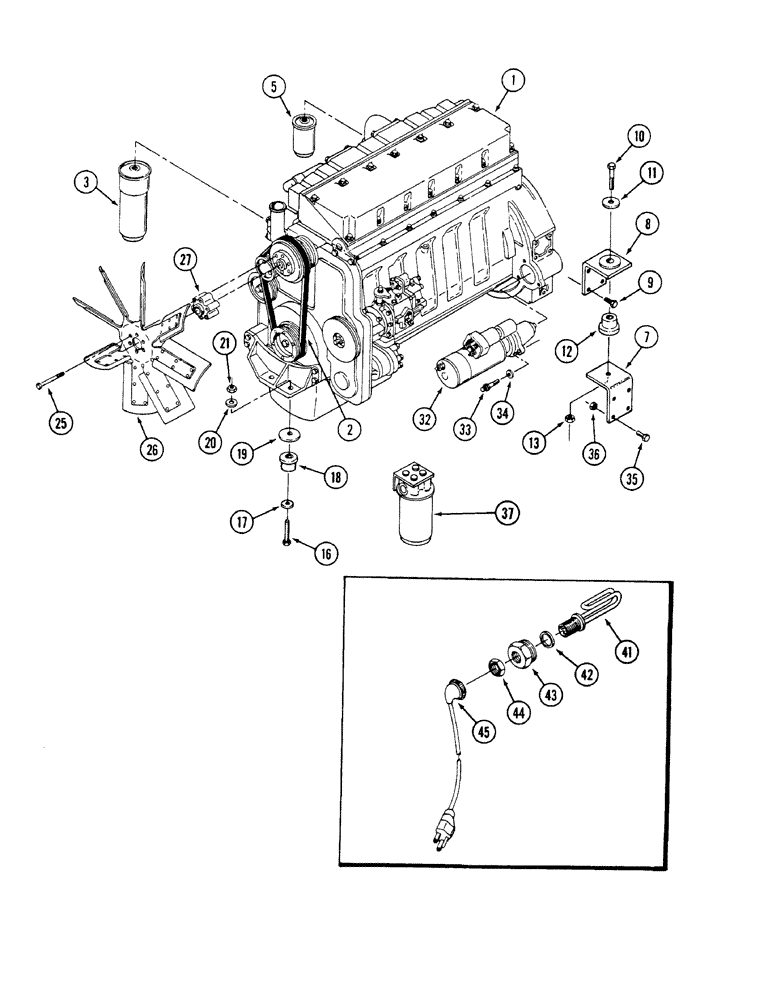

Запчасти Case IH 9260 (2-026) - ENGINE MOUNTING, 9250 AND 9260 TRACTORS (02) - ENGINE

1

90-7623T1

ENGINE ASSEMBLY - Cummins LTA10-A, for service parts see your Cummins dealer, replaces 90-7221T2, Includes: Ref. 2 - 3

1шт.

1

90-7872T1

ENGINE ASSEMBLY - Cummins LTA10-A, with fuel filter mounted on fuel pump, for service parts see your Cummins dealer, Includes: Ref. 2 - 3

1шт.

2

90-7357T1

V-BELT,0.84" W x 50.50" L, 8 Ribs

Fan 0.84" W x 50.50" L, 8 Ribs

1шт.

90-3650T1

V-BELT,0.14" W x 34.50" L, 5 Ribs

Alternator, not shown 0.14" W x 34.50" L, 5 Ribs

1шт.

3

90-7101T1

FILTER, ENGINE OIL

FILTER - engine oil

1шт.

5

A77544

FILTER

- water conditioning, precharge, coolant conditioner, service

1шт.

7

70-5709T1

SUPPORT

MOUNT - engine, lower

2шт.

8

70-5729T1

SUPPORT

MOUNT - engine, upper

2шт.

9

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

8шт.

10

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

2шт.

11

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, special

2шт.

12

47-4172

SHOCK ABSORBER

INSULATOR - engine mount, rubber, rear

2шт.

13

232-46114

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

2шт.

16

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

17

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

18

24-231

RUBBER MOUNTING

INSULATOR - engine mount, rubber, front

2шт.

19

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

20

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

21

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

25

275804R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8

6шт.

26

90-4672T1

FAN

- engine

1шт.

27

90-3638T1

SPACER

- fan

1шт.

32

REF

INSTRUCTION

STARTER ASSEMBLY - 12 volt, for correct assembly and components See Figures 4-044 - 4-047C

1шт.

33

80-11032

12 PT SCREW,Flg, 5/8"-11 x 2", Gr 8

BOLT - 12 point flange, 5/8 NC x 2 inch, grade 8

2шт.

34

19-912

WASHER

- flat, 21/32 ID x 1-3/16 OD x 3/16 inch thick

3шт.

35

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

36

425-1010

NUT,5/8"-11, G5

8шт.

37

90-3941T1

SEPARATOR

FILTER - fuel, mounts on fuel pump

1шт.

90-3648T91

GLOW PLUG

HEATER ASSEMBLY - coolant, engine block, Includes: Ref. 41 - 45

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - heater, block

1шт.

42

NSS

NOT SOLD SEPARAT

GASKET - element, block heater

1шт.

43

NSS

NOT SOLD SEPARAT

FITTING - reducer, block heater

1шт.

44

NSS

NOT SOLD SEPARAT

NUT - hex, jam, block heater

1шт.

45

90-3491T1

CABLE

- heater, block

1шт.
