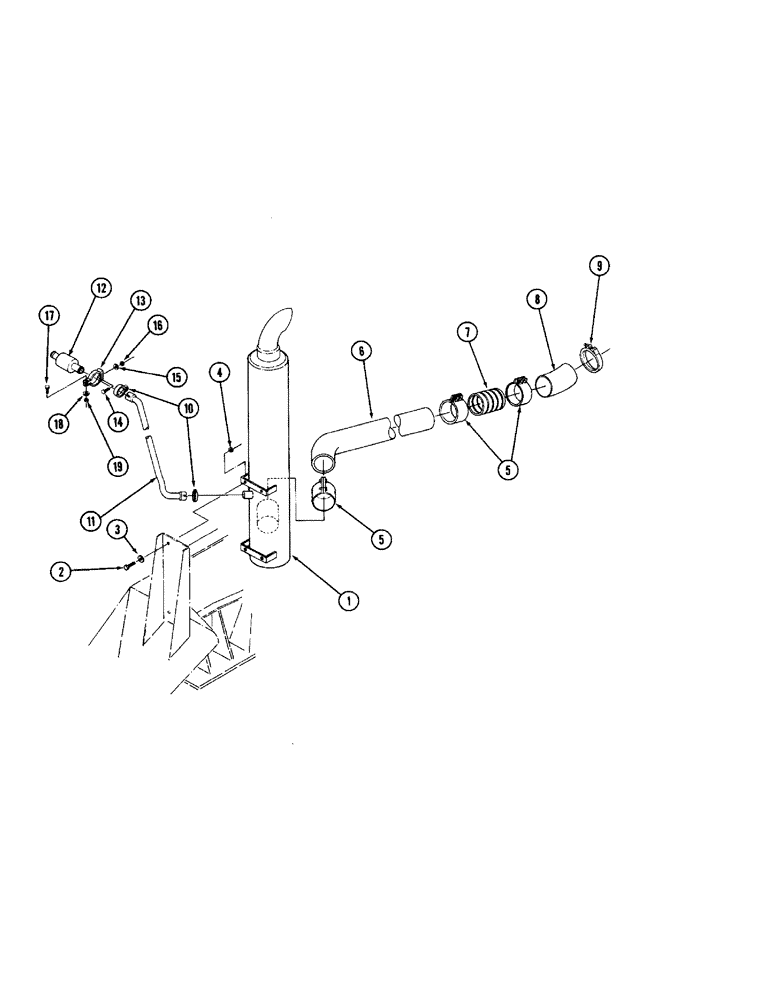

Запчасти Case IH 9260 (2-023A) - EXHUAST SYSTEM, MUFFLER SUPPORT IS WELDED TO FRONT FRAME (02) - ENGINE

1

90-7607T1

MUFFLER

- exhaust

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

3

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

4

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

5

90-7635T1

CLAMP

- exhaust

3шт.

6

90-7665T1

EXHAUST SYSTEM PIPE,4" OD

TUBE - exhaust

1шт.

7

90-5858T1

TUBE,4" ID x 4.25" OD x 9" L

- flex, exhaust

1шт.

8

90-7659T1

EXHAUST SYSTEM PIPE,4" OD x 9.09" L

TUBE - exhaust, flex tube to turbocharger

1шт.

9

A170807

CLAMP,102mm ID

tube retaining (Replaces 90-3606T1)

1шт.

10

31-2434

CLAMP

- tube

2шт.

11

90-7666T1

TUBE,1.5" OD

- aspirator

1шт.

12

A190699

VALVE

- check, aspirator

1шт.

13

1-8563

CLAMP BRACKET

CLAMP - check valve

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

- hex lock, 5/16 inch

1шт.

17

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
