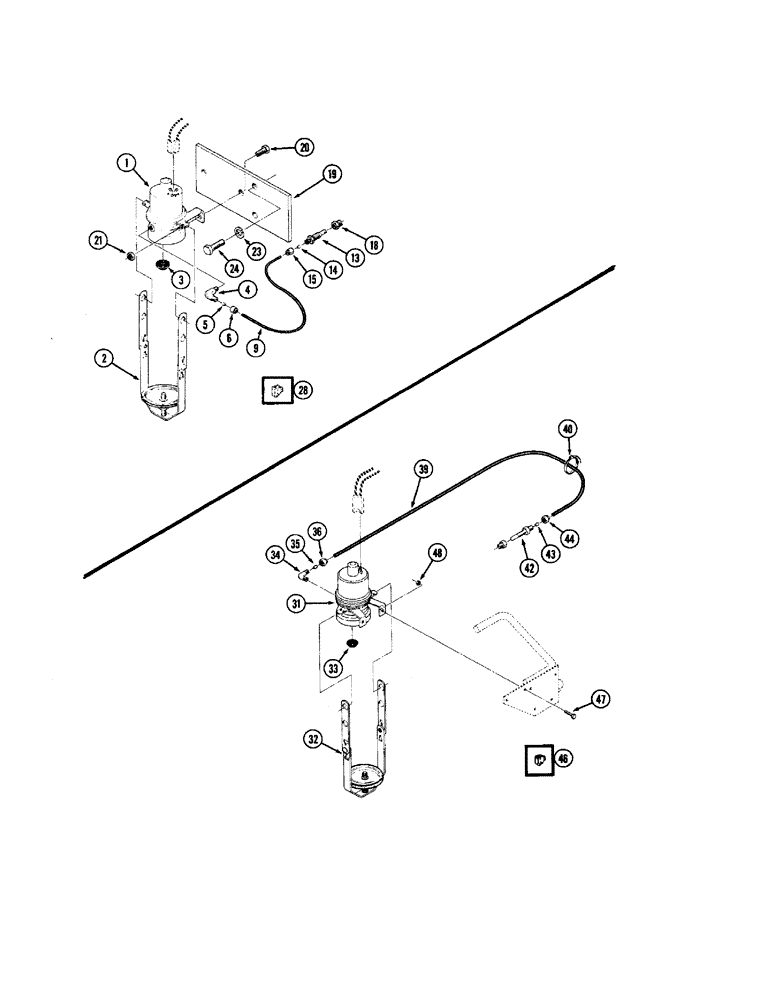

Запчасти Case IH 9260 (2-018) - ETHER STARTING SYSTEM, USED WITH 9240 TRACTOR (02) - ENGINE

1

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Ref. 2 - 6

1шт.

2

D77648

BAIL

HANGER - can, ether

1шт.

3

1963571C1

GASKET

GASKET - injector solenoid, 19/32 inch diameter

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

9

31-1347

TUBE,0.125" OD, 24" Length

- ether, solenoid, 1/8 OD x 24 inch (Order hose 29-53T3 and cut to length)

1шт.

13

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, Includes: Ref. 14 & 15

1шт.

14

222-650

SLEEVE,1/8" Tube, Comp

1шт.

15

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

18

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- pipe, 1/4 male x 1/8 inch female

1шт.

19

90-6276T1

PLATE

- mounting, solenoid

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

21

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

24

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

2шт.

28

1964751C1

SWITCH

- rocker, ether start (In cab)

1шт.

31

A143381

SOLENOID

ASSEMBLY - ether injection, used with 9250 and 9260 tractors, Includes: Ref. 32 - 36

1шт.

32

D77648

BAIL

HANGER - ether can, used with 9250 and 9260 tractors

1шт.

33

395686R1

GASKET

- can, used with 9250 and 9260 tractors

1шт.

34

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Used with 9250 and 9260 tractors, Incl. Ref 35 & 36 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

35

222-650

SLEEVE,1/8" Tube, Comp

Used with 9250 and 9260 tractors 1/8" Tube, Comp

1шт.

36

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD, used with 9250 and 9260 tractors 5/16"-24, 45º Fl, Comp

1шт.

39

31-1861

TUBE,0.073" ID, 48" Length

- ether, 1/8 inch (Order 29-53T3 and cut to length), used with 9250 and 9260 tractors

1шт.

40

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon, used with 9250 and 9260 tractors

2шт.

42

90-7034T1

PACKAGE

NOZZLE ASSEMBLY - atomizer, used with 9250 and 9260 tractors, Includes: Ref. 43 & 44

1шт.

43

222-650

SLEEVE,1/8" Tube, Comp

Used with 9250 and 9260 tractors 1/8" Tube, Comp

1шт.

44

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD, used with 9250 and 9260 tractors 5/16"-24, 45º Fl, Comp

1шт.

46

1964751C1

SWITCH

- rocker (In cab), used with 9250 and 9260 tractors

1шт.

47

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, used with 9250 and 9260 tractors

2шт.

48

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Used with 9250 and 9260 tractors

2шт.
