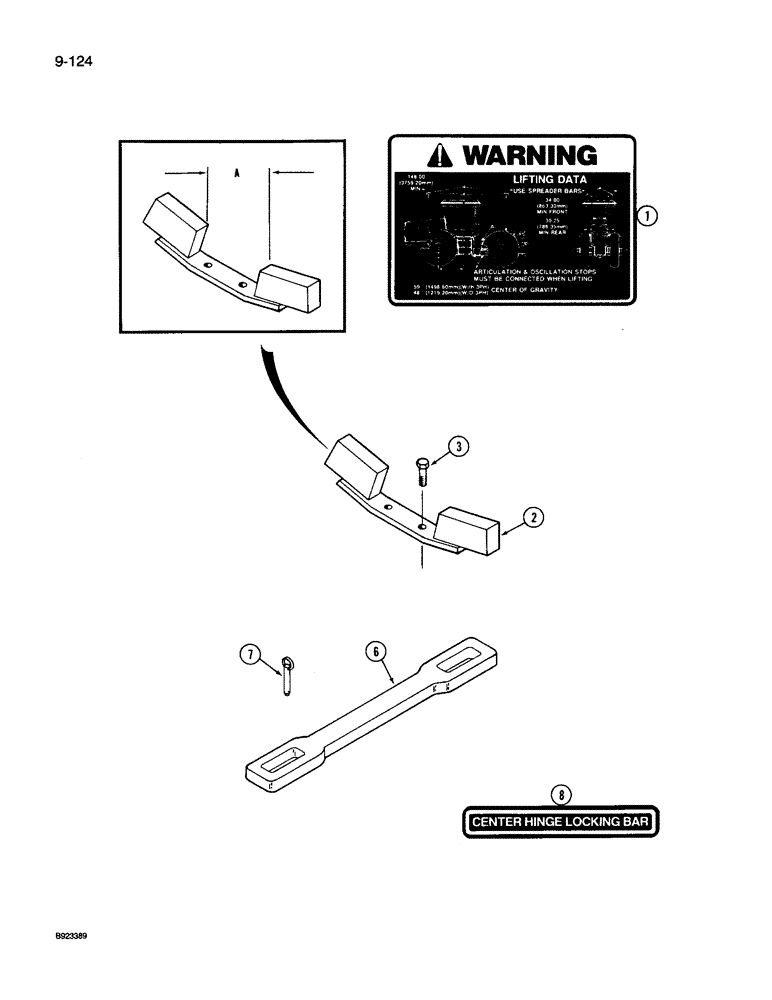

Запчасти Case IH 9260 (9-124) - LIFTING AND SHIPPING ACCESSORIES (09) - CHASSIS/ATTACHMENTS

1

2-7239T1

DECAL

- Warning, lifting data

2шт.

2

70-5825T1

STOP

- oscillation, "A" dimension is 5-5/32 inch

1шт.

2

70-6384T1

STOP

- oscillation, "A" dimension is 5-21/32 inch

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

6

70-5448T1

BAR

- lock, articulation stop (9250 Tractor only)

1шт.

7

19-5774

PIN

- retaining, 3/8 x 2-1/2 inch (9250 Tractor only)

2шт.

8

2-6874T1

DECAL

- Center Hinge Locking Bar (9250 Tractor only)

1шт.
