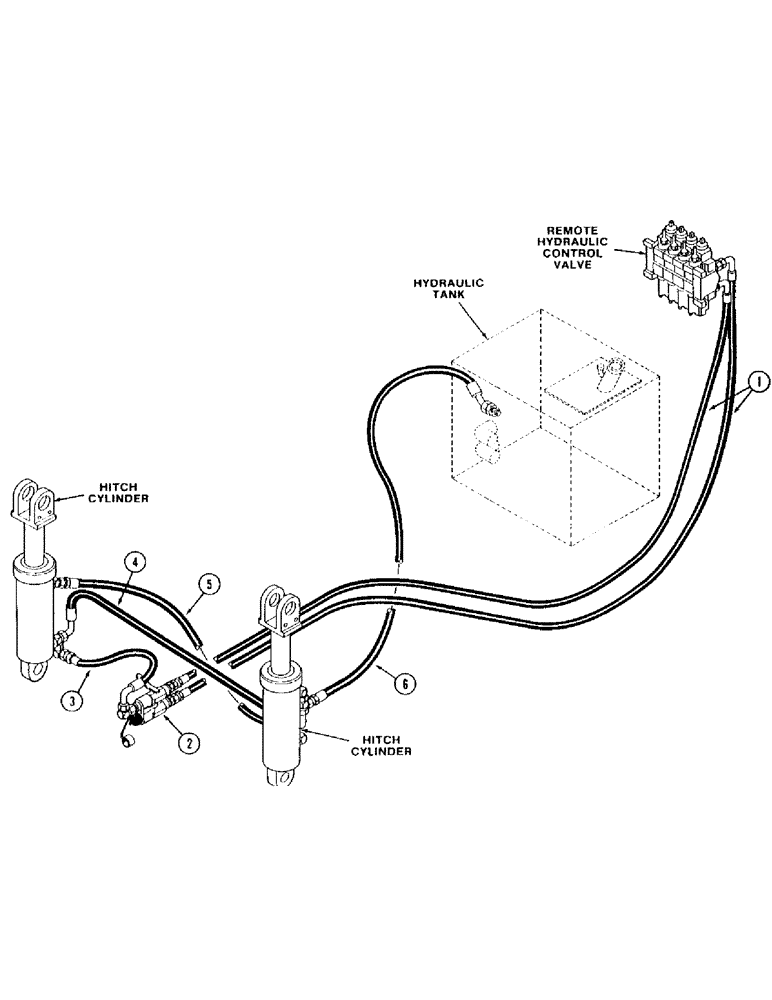

Запчасти Case IH 9260 (1-028) - PICTORIAL INDEX, HITCH HYDRAULICS, MANUAL CONTROLLED (00) - PICTORIAL INDEX

1

Remote Hydraulic Hose (9240 and 9260 Tractor), Figure 8-024

1шт.

1

Remote Hydraulic Hose (9250 Tractor), Figure 8-026

1шт.

2

Remote Hydraulic Coupler (9240 and 9260 Tractor), Figures 8-024, 8-078

1шт.

2

Remote Hydraulic Coupler (9250 Tractor), Figures 8-026, 8-078

1шт.

3

Hitch Cylinder Supply Hose (9240 and 9260 Tractor), Figure 8-046

1шт.

3

Hitch Cylinder Supply Hose (9250 Tractor), Figure 8-048

1шт.

4

Hitch Cylinder Supply Hose (9240 and 9260 Tractor), Figure 8-046

1шт.

4

Hitch Cylinder Supply Hose (9250 Tractor), Figure 8-048

1шт.

5

Hitch Cylinder Drain Hose (9240 and 9260 Tractor), Figure 8-046

1шт.

5

Hitch Cylinder Drain Hose (9250 Tractor), Figure 8-048

1шт.

6

Hitch Cylinder Drain Hose (9240 and 9260 Tractor), Figure 8-046

1шт.

6

Hitch Cylinder Drain Hose (9250 Tractor), Figure 8-048

1шт.
