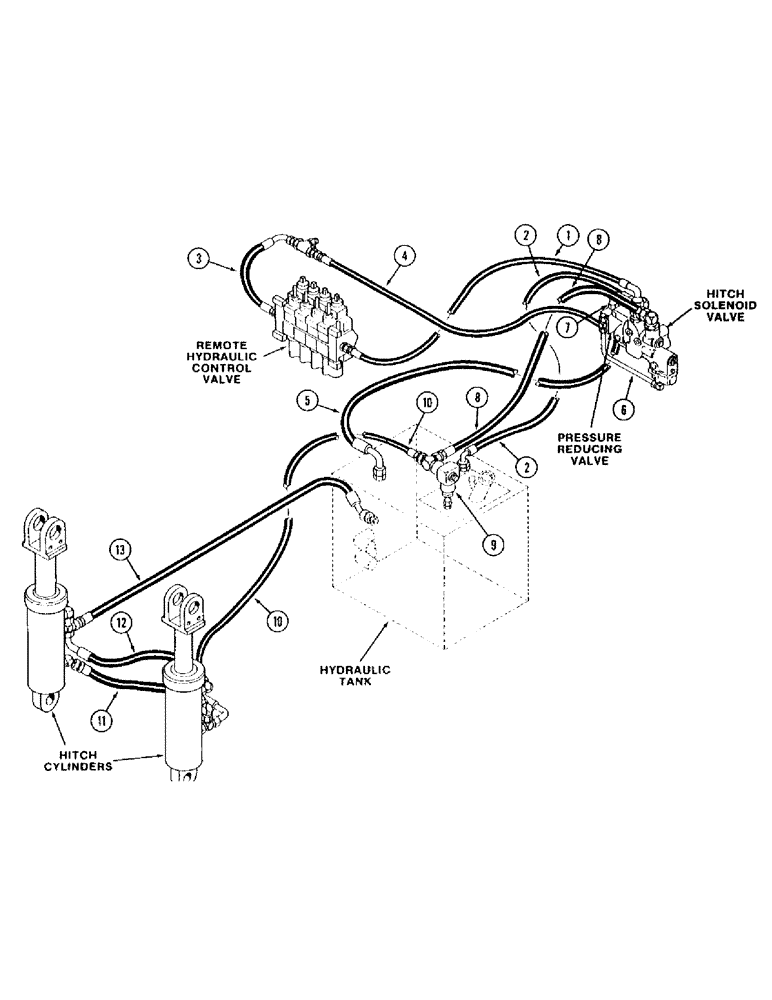

Запчасти Case IH 9260 (1-026) - PICTORIAL INDEX, HITCH HYDRAULICS, ELECTRONIC CONTROLLED (00) - PICTORIAL INDEX

1

Hitch Valve Supply Hose, Figure 8-052

1шт.

2

Hitch Valve Drain Hose, Figure 8-052

1шт.

3

Hydraulic Pump Pressure Sensing Hose, Figure 8-052

1шт.

4

Hitch Valve Pressure Sensing Hose, Figure 8-052

1шт.

5

Pressure Reducing Valve Drain Hose, Figure 8-052

1шт.

6

Pressure Reducing Valve Tube, Figure 8-052

1шт.

7

Pressure Reducing Valve Tube, Figure 8-052

1шт.

8

Hitch Cylinder Supply Hose, Figure 8-052

1шт.

9

Pressure Relief Valve, Figures 8-052, 8-066

1шт.

10

Hitch Cylinder Supply Hose, Figure 8-052

1шт.

11

Hitch Cylinder to hitch Cylinder Supply Hose, Figure 8-056

1шт.

12

Hitch Cylinder to Hitch Cylinder Drain Hose, Figure 8-056

1шт.

13

Hitch Cylinder Drain Hose, Figure 8-056

1шт.
