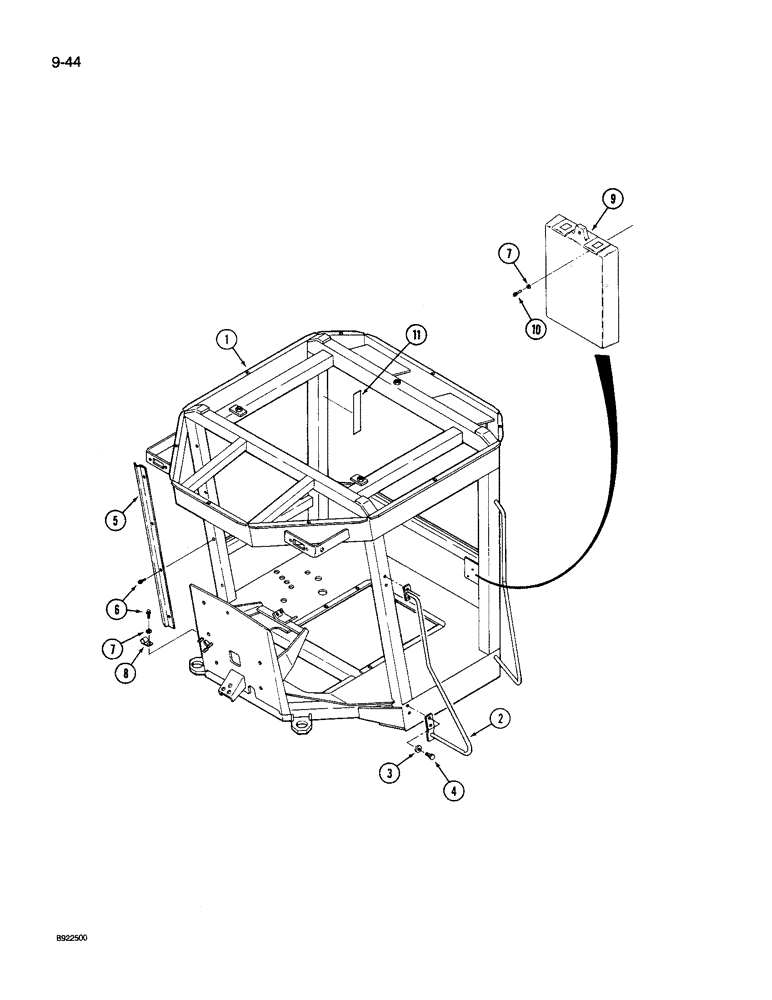

Запчасти Case IH 9260 (9-044) - ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1

60-6556T3

FRAME

- ROPS (Prior to P.I.N. JCB0028400)

1шт.

1

60-6809T1

CHASSIS

FRAME - ROPS (P.I.N. JCB0028400 and after)

1шт.

2

60-5861T1

HANDLE

- grab, side

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

26-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

- hex, 3/8 NC x 5/8 inch, grade 8

4шт.

5

60-5855T1

GUARD

- wire

1шт.

6

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - flange head tap, No. 10 NC x 1/2 inch

6шт.

7

495-31022

WASHER,#10

- flat, 9/32 x 5/8 x 1/16 inch

5шт.

8

31-1349

MOUNTING CLIP

CLAMP - harness

2шт.

9

R46464

CASE

BOX - operators manual

1шт.

10

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- flange head machine, No. 10 NC x 3/4 inch

3шт.

11

60-6468T1

DECAL

- Warning, avoid injury or death, See Figure 9-128

1шт.
