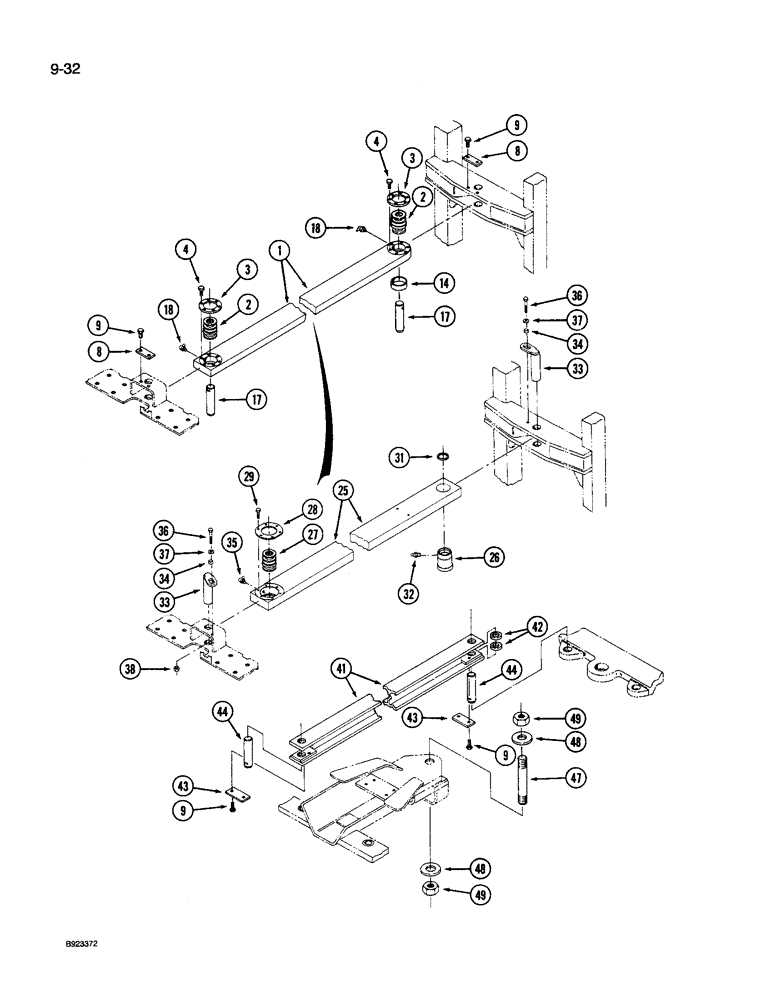

Запчасти Case IH 9260 (9-032) - FRAME CONNECTING LINK AND KING PINS, 9240 AND 9260 TRACTOR (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - frame connecting (With two sealed bearings) (Order components) (If used), Includes: Ref. 1 - 4

1шт.

1

70-5628T2

LINK, CONNECTING

LINK - frame connecting

1шт.

2

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge lower

2шт.

3

2-10T1

RETAINER

RING - bearing retaining

2шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

12шт.

8

70-1910T1

RETAINER

- connecting link pin

2шт.

9

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

9

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

14

70-5714T1

SPACER

- connecting link

1шт.

17

70-4077T1

PIN

- connecting link, rear

2шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - frame connecting (With one sealed bearing) (Order components) (If used), Includes: Ref. 25 - 29

1шт.

25

70-6239T1

CONNECTOR, ELEC

LINK - frame connecting

1шт.

26

70-6217T1

BUSHING

- pivot, link

1шт.

27

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge lower

1шт.

28

2-10T1

RETAINER

RING - bearing retaining

1шт.

29

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

6шт.

31

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - sealing

2шт.

32

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

33

70-6232T1

PIN ASSY.

PIN - link retaining

2шт.

34

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

2шт.

35

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

36

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

2шт.

37

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

38

425-1010

NUT,5/8"-11, G5

1шт.

41

70-5856T1

LINK

- frame connecting (34.8 inch long)

1шт.

41

70-5855T1

LINK

- frame connecting (34.9 inch long)

1шт.

41

70-5852T1

LINK

- frame connecting (35.0 inch long)

1шт.

41

70-5853T1

LINK

- frame connecting (35.1 inch long)

1шт.

41

70-5854T1

LINK

- frame connecting (35.2 inch long)

1шт.

42

70-5907T1

SPACER

- connecting link

4шт.

43

70-3082T2

LARGE PLATE

RETAINER - connecting link pin

2шт.

44

70-5906T1

PIN,38.02mm OD x 153.67mm L

- connecting link

2шт.

47

70-4662T2

PIN,44.3mm OD x 251mm L

- king, lower frame (Used with three point hitch) O.A.L. is 9.88in

1шт.

47

70-4189T1

PIN,44.37mm OD x 339.85mm L

- king, lower frame (Used without three point hitch) O.A.L. is 13.38in

1шт.

48

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

2шт.

49

70-6221T1

JAM NUT

- hex jam, 1-3/4 inch NF

2шт.
