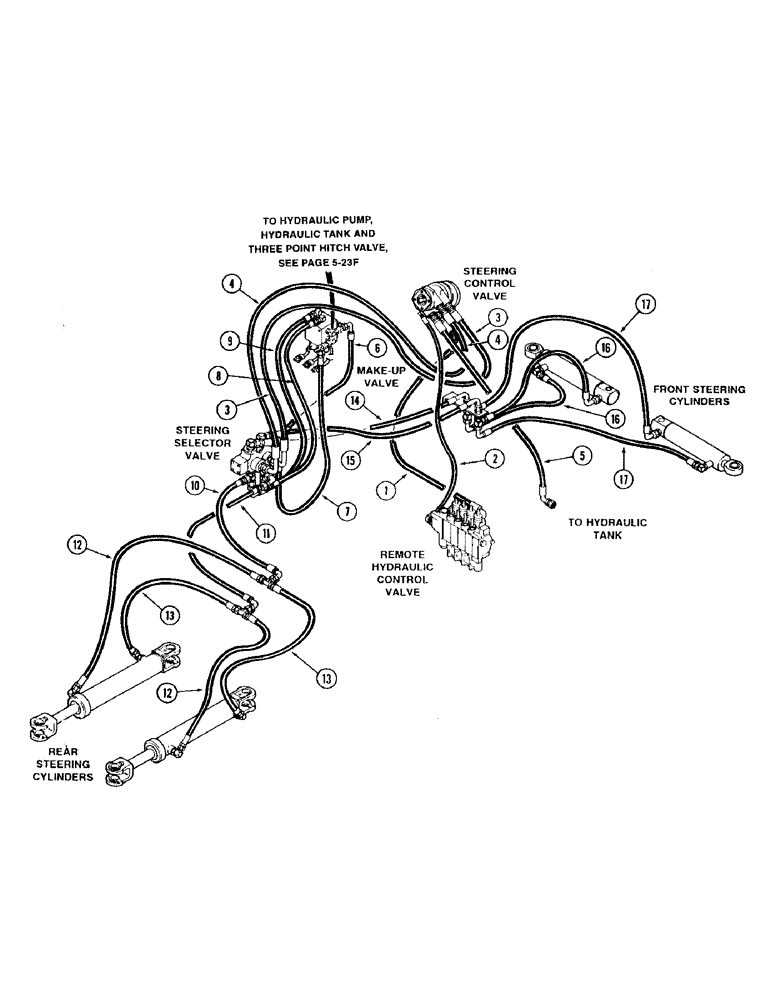

Запчасти Case IH 9260 (1-023A) - PICTORIAL INDEX, STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Steering Supply Hose, Figure 5-023A

1шт.

2

Steering Pressure Sensing Hose, Figure 5-023A

1шт.

3

Steering Control Valve to Selector Valve Hose, Figure 5-023A

1шт.

4

Steering control Valve to Selector Valve Hose, Figure 5-023A

1шт.

5

Steering Drain Hose, Figure 5-023A

1шт.

6

Selector Valve External Drain Hose, Figure 5-023C

1шт.

7

Selector Valve Pilot Port Hose, Figure 5-023C

1шт.

8

Selector Valve Front Port to Make Up Valve Hose, Figure 5-023C

1шт.

9

Selector Valve Rear Port to Make Up Valve Hose, Figure 5-023C

1шт.

10

Selector Valve to Upper Bulkhead Tee Hose, Figure 5-023C

1шт.

11

Selector Valve to Lower Bulkhead Tee Hose, Figure 5-023C

1шт.

12

Tee to Rear Steering Cylinder Rod End Hoses, Figure 5-023C

1шт.

13

Tee to Rear Steering Cylinder Base End Hoses, Figure 5-023C

1шт.

14

Selector Valve Rear Port to Bulkhead Tee Hose, Figure 5-013A

1шт.

15

Selector Valve Front Port to Bulkhead Tee Hose, Figure 5-013A

1шт.

16

Left Front Steering Cylinder Hoses, Figure 5-013A

1шт.

17

Right Front Steering Cylinder Hoses, Figure 5-013A

1шт.
