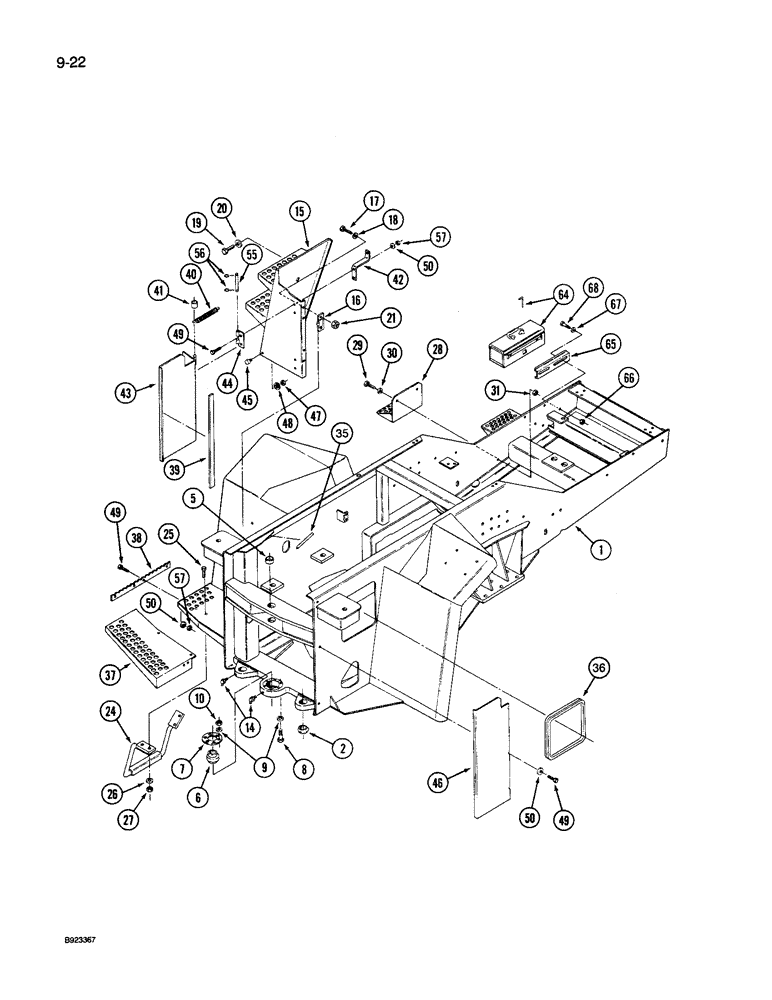

Запчасти Case IH 9260 (9-022) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

70-6273T1

FRAME ASSY

FRAME ASSEMBLY - front, Includes: Ref. 2

1шт.

2

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - steering cylinder pivot

2шт.

5

70-4621T2

BUSHING,44.5mm ID x 57.12mm OD x 25.4mm L

- pivot, hinge upper

2шт.

6

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge lower

1шт.

7

70-4596T1

LARGE PLATE

CAP - bearing retainer

1шт.

8

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.

9

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch

12шт.

10

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

6шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

3шт.

15

70-5520T3

STEP

- cab access

1шт.

16

70-3158T2

HINGE

- swing out step

2шт.

17

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

4шт.

18

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

4шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

20

495-11053

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 3/32 inch

2шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

24

70-4819T2

STEP

- rear

1шт.

25

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

26

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

27

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

4шт.

28

70-2142T3

STEP

- front

1шт.

29

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

30

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

2шт.

31

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

35

31-2787

GROMMET

- edge, 7 inch long (Order 31-2404 and, Serial Range: cut-length)

1шт.

36

50-2535T1

GROMMET

- edge, 56-1/2 inch long (Order 31-2404 and, Serial Range: cut-length)

1шт.

37

70-5904T2

STEP

- bolt on

1шт.

38

70-5903T1

PLATE

- step edge

1шт.

39

70-5902T1

FOAM

SEAL - foam, door, 27-1/2 inch long (Order 60-4596T2 and, Serial Range: cut-length)

1шт.

40

90-2902T1

SPRING

- door retaining

1шт.

41

31-2917

HOSE

- retaining spring, 5/8 inch long (Order 32-80T1 and, Serial Range: cut-length)

1шт.

42

70-5900T1

BRACKET

- spring

1шт.

43

70-5898T3

DOOR ASSY.

DOOR - access, center frame

1шт.

44

70-6210T1

HINGE

- mounting, door (Replaces 70-5896T1)

2шт.

45

70-5895T1

BUMPER

- door

1шт.

46

70-5897T1

PANEL

SHIELD - bolt on

1шт.

47

225-14210

NUT,#10-32

1шт.

48

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

49

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

50

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

11шт.

55

70-1996T3

PIN,6.35mm OD x 111mm L

ROD - hinge

2шт.

56

70-2600T2

CIRCLIP

RING - retaining

4шт.

57

425-106

NUT,3/8"-16, Cl 5

8шт.

35-1742T91

BOX, TOOL

KIT - tool box, tractor, not available (Order components), Includes: Ref. 64 - 68

1шт.

64

A181436

TOOL BOX

BOX, TOOL

1шт.

65

A181434

SUPPORT

BRACKET - tool box

1шт.

66

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Tool box 1/2"-13, G5

2шт.

67

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch, tool box

2шт.

68

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, tool box

2шт.
