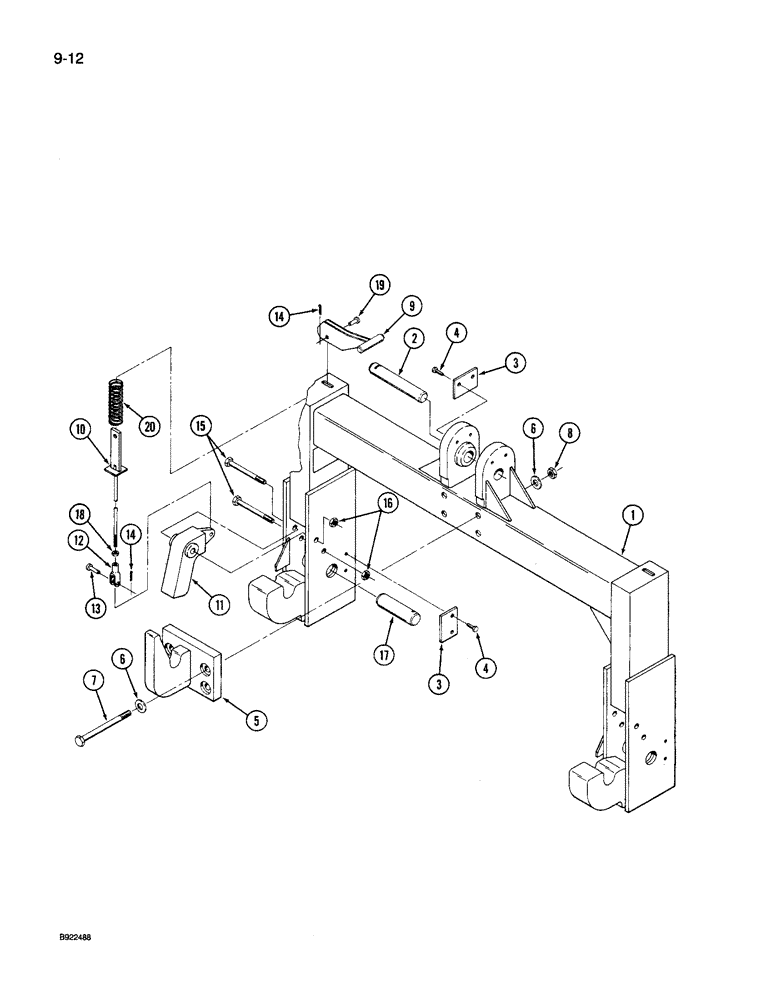

Запчасти Case IH 9260 (9-012) - QUICK HITCH COUPLER, CATEGORY III, WITH BOLTED ON QUICK ATTACHMENT HOOK (09) - CHASSIS/ATTACHMENTS

1

70-6430T1

ATTACHMENT

HITCH - quick attachment (Order 70-6430T1) (Replaces 70-5653T1)

1шт.

2

70-4256T1

PIN

- center link mounting

1шт.

3

70-3082T2

LARGE PLATE

BLOCK - pin retaining

3шт.

4

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

6шт.

5

70-4317T2

HOOK

- quick attachment

1шт.

6

19-6120

WASHER

- flat, 7/8 x 1-3/4 x 5/32 inch

8шт.

7

9430319

SCREW,7/8" - 9 x 6 1/2"

BOLT - hex, 7/8 NC x 6-1/2 inch, grade 8

4шт.

8

9422309

LOCK NUT,7/8"-9, GC

NUT - hex lock, 7/8 inch NC

4шт.

9

70-4320T1

HANDLE

- hitch release (Order 70-6461T1)

2шт.

10

70-4324T1

THREADED ROD

LINK - hitch release

2шт.

11

70-6310T1

TRIGGER

CATCH - hitch release (Replaces 70-4328T1)

2шт.

12

213-41

ADJUSTABLE CLEVIS,3/8"-24

2шт.

13

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

14

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

15

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

16

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

17

70-4293T1

PIN,36.5mm OD x 125.73mm L

- lower hitch

2шт.

18

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

2шт.

19

19-5423

CLEVIS PIN

3/8 x 7/8"

2шт.

20

70-4340T1

COMPRESSION SPRING

2шт.
