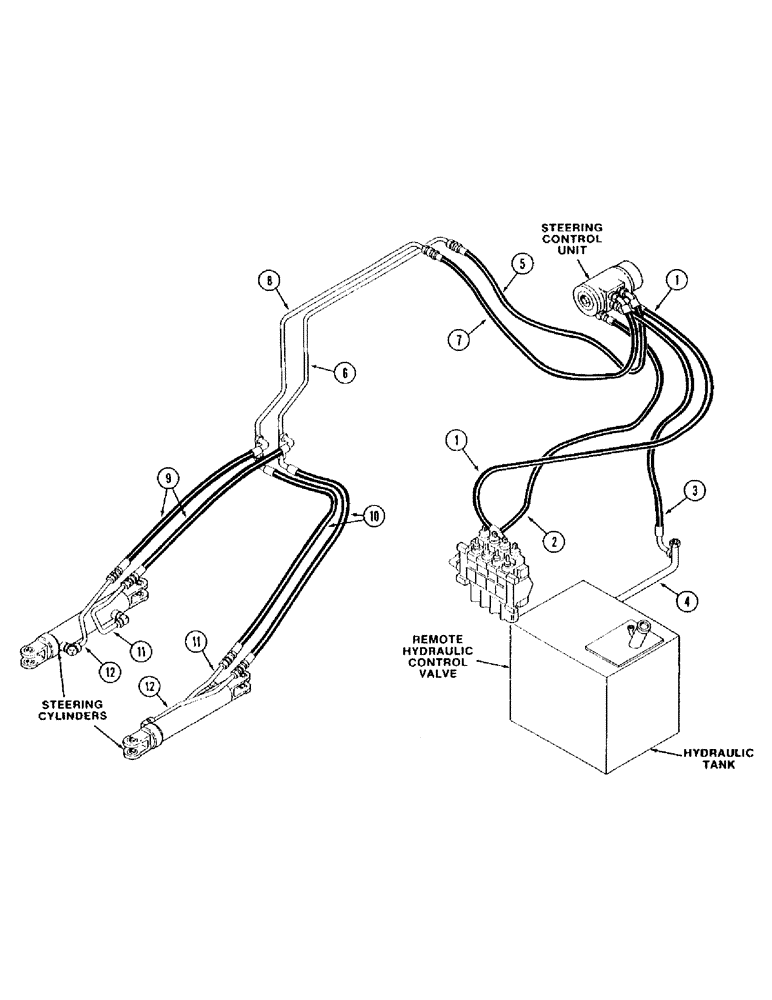

Запчасти Case IH 9260 (1-022) - PICTORIAL INDEX, STEERING HYDRAULICS (00) - PICTORIAL INDEX
№
Артикул
Название
Примечание
Количество
1
Steering Supply Hose, Figure 5-018
1шт.
2
Steering Pressure Sensing Hose, Figure 5-018
1шт.
3
Steering Drai Hose, Figure 5-018
1шт.
4
Gear Pump drain Tube, Figure 8-016
1шт.
5
Right Turn Steering Hose, Figure 5-020
1шт.
6
Right Turn Steering Tube, Figure 5-020
1шт.
7
Left Turn Steering Hose, Figure 5-020
1шт.
8
Left Turn Steering Tube, Figure 5-020
1шт.
9
Left Cylinder Steering Hoses, Figure 5-020
1шт.
10
Right Cylinder Steering Hoses, Figure 5-020
1шт.
11
Right Turn Steering Tube, Figure 5-020
1шт.
12
Left Turn Steering Tube, Figure 5-020
1шт.
Выбрано товаров: 12
