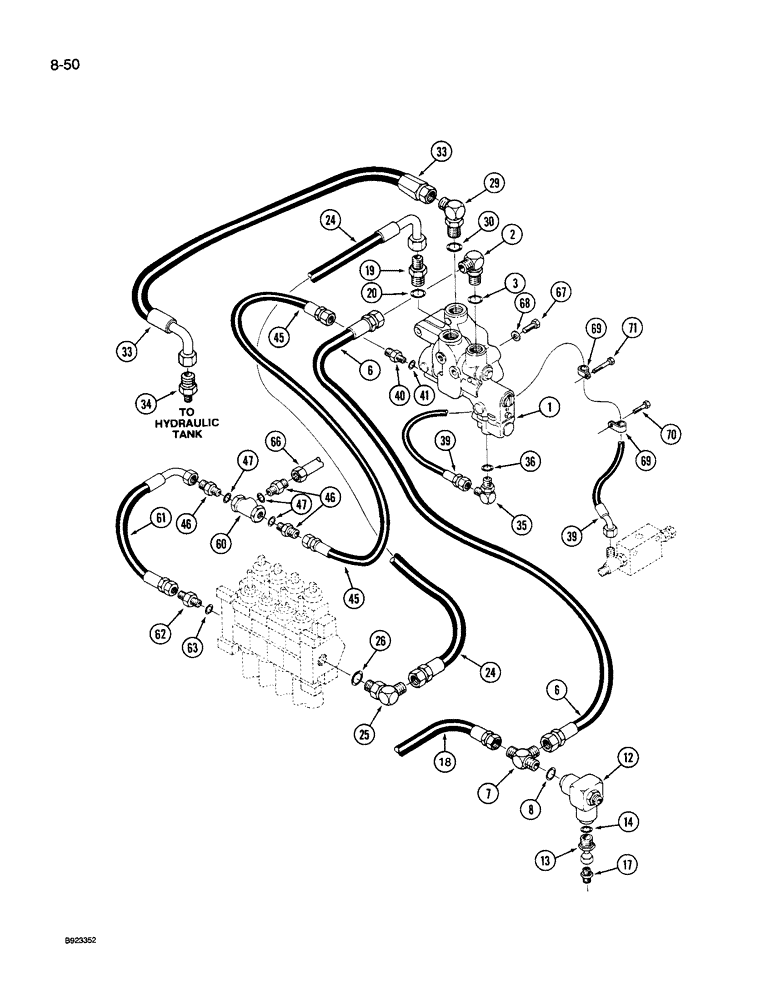

Запчасти Case IH 9260 (8-050) - THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED, 9240 AND 9260 TRACTOR (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
35-1796T91
KIT - hitch, electronic controlled (With PTO) (Machinery Item)
1шт.
35-1797T91
KIT - hitch, electronic controlled (Without PTO) (Machinery Item)
1шт.
1
50-3321T91
VALVE
ASSEMBLY - control, three point hitch, See Figure 8-064
1шт.
2
18-569
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring
- 90 degree adjustable, 7/8 inch thread, Includes: Ref. 3
1шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
6
31-2841
HOSE
- valve to relief valve, 20 inch long
1шт.
7
218-5241
TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 8
1шт.
8
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
12
50-2291T91
VALVE
ASSEMBLY - relief, See Figure 8-066
1шт.
13
31-117
ADAPTER
- straight, 1/2 PT x 7/8 inch thread, Includes: Ref. 14
1шт.
14
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
17
217-196
FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF
CONNECTOR - straight, 1/2 inch PT
1шт.
18
31-2882
HOSE ASSY.
HOSE - relief valve to cylinder, 71 inch long, See Figure 8-054, Ref. 13
1шт.
19
218-5063
HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB
ADAPTER - straight, 7/8-14 thread x 1-1/16-12 inch thread, Includes: Ref. 20
1шт.
20
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
25
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 26
1шт.
26
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
29
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 30
1шт.
30
31-587
O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk
- 1-11/64 ID x 1/8 inch
1шт.
33
31-2713
HOSE
- valve to tank, 20 inch long
1шт.
34
218-458
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF
ADAPTER - straight, 1-1/16-12 flare x 1/2 inch PT
1шт.
35
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
- 90 degree adjustable, 9/16-18 inch thread, Includes: Ref. 36
1шт.
36
31-1099
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
39
31-2880
HOSE ASSY.
HOSE - reducing valve to control valve, 72 inch long, See Figure 8-002, Ref. 53 for, Serial Range: tee-valve
1шт.
40
674681R1
HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring
ADAPTER - straight, 1/2 x 9/16 inch thread, Includes: Ref. 41
1шт.
41
31-1099
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
45
31-2861
HOSE ASSY.
HOSE - valve to shuttle valve, 27 inch long
1шт.
46
218-5352
HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring
ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 47
3шт.
47
31-1019
O-RING,4-1, 90 Duro, .351" ID x .072" Thk
1шт.
60
31-1778
VALVE
- shuttle
1шт.
61
31-2606
HOSE ASSY.
HOSE - shuttle valve to control valve, 18 inch long
1шт.
62
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 63
1шт.
63
31-1099
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
66
31-2606
HOSE ASSY.
HOSE - shuttle valve to tube, 18 inch long, See Figure 8-004, Ref. 72
1шт.
67
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
2шт.
68
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
2шт.
69
31-1776
MOUNTING CLIP
CLAMP - retaining (Replaces 31-2488)
2шт.
70
SM8124085
BOLT
BOLT - hex, 10 mm - 1.25 x 85 mm
1шт.
71
SM8124003
BOLT
BOLT - hex, 10 mm - 1.25 x 115 mm
1шт.
Выбрано товаров: 40
