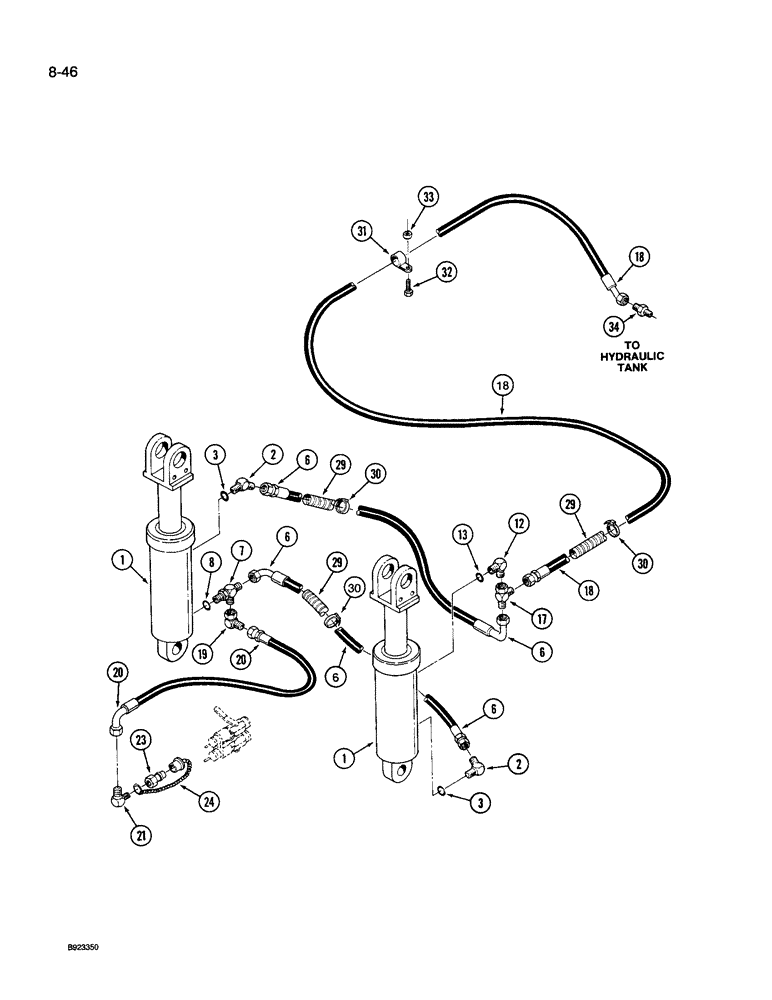

Запчасти Case IH 9260 (8-046) - THREE POINT HITCH HYDRAULICS, MANUAL CONTROLLED, 9240 AND 9260 TRACTOR (08) - HYDRAULICS

35-1901T91

KIT - hitch, manual controlled (With PTO) (Machinery Item)

1шт.

35-1796T91

KIT - hitch, manual controlled (With PTO) (Machinery Item)

1шт.

35-1902T91

KIT - hitch, manual controlled (Without PTO) (Machinery Item)

1шт.

35-1797T91

KIT - hitch, manual controlled (Without PTO) (Machinery Item)

1шт.

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, three point hitch, See Figure 8-062 for correct cylinder

2шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 3

2шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

2шт.

6

31-1769

HOSE

- hydraulic, cylinder to cylinder, 50 inch long (If used)

2шт.

6

32-206

HOSE

- hydraulic, cylinder to cylinder, 67 inch long (If used)

2шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Include: Ref. 8

1шт.

8

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

12

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread

1шт.

13

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

1шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

1шт.

18

31-2883

HOSE ASSY.

HOSE - cylinder to tank, 93 inch long

1шт.

19

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch thread

1шт.

20

31-1288

HOSE

- cylinder to coupler, 28 inch long

1шт.

21

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 PT x 3/4 inch thread

1шт.

23

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

24

1-7142

CAP

- dust, coupler (rubber)

1шт.

29

50-3087T1

CONDUIT

GUARD - hose, 59 inch (Order S119717 conduit and, Serial Range: cut-length)

3шт.

30

19-135

CABLE TIE

STRAP - nylon

9шт.

31

31-1776

MOUNTING CLIP

CLAMP - retaining (Replaces 31-2488)

1шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

33

425-106

NUT,3/8"-16, Cl 5

1шт.

34

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.
