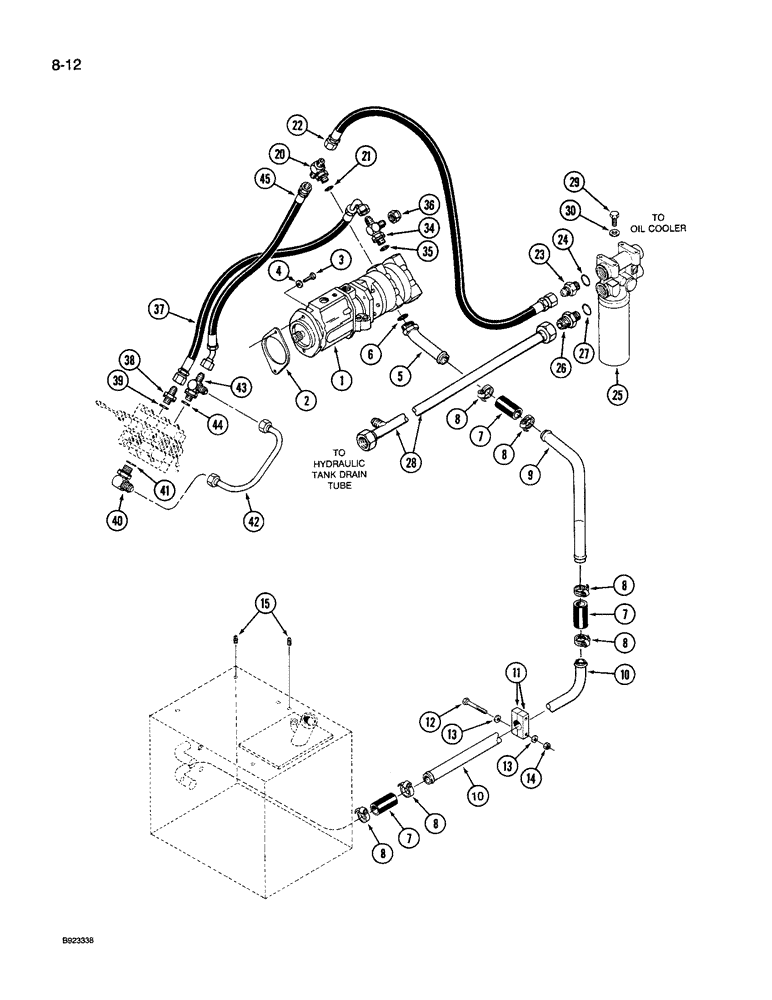

Запчасти Case IH 9260 (8-012) - HYDRAULIC SYSTEM, PUMP TO FILTER AND REAR STEERING VALVE, P.I.N. JCB0028400 AND AFTER (08) - HYDRAULICS

1

50-3287T91

PUMP

ASSEMBLY - hydraulic, See Figure 8-030

1шт.

2

18-1176

GASKET

- pump

1шт.

3

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

4

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

5

31-2529

TUBE

- tank to pump, at pump, Includes: Ref. 6

1шт.

6

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - hydraulic drain, 6 inch long (Order 1-4482T1 and, Serial Range: cut-length)

3шт.

8

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

6шт.

9

50-2838T2

TUBE

-, Serial Range: pump-tank

1шт.

10

50-2840T1

TUBE

-, Serial Range: pump-tank

1шт.

11

50-2884T1

CLAMP

- tube, set

1шт.

12

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

- hex, 1/4 NC x 3 inch, grade 8

2шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

14

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

15

31-35

PLUG

- pipe, square head, 1/2 inch PT

2шт.

20

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch adj O-ring branch x flare, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

31-2877

HOSE ASSY.

HOSE - hydraulic, pump to filter, 46 inch long

1шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

25

50-3493T91

FILTER, ENGINE OIL

FILTER - hydraulic, See Figure 8-042

1шт.

26

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-5/16-12 inch O-ring, Includes: Ref. 27

1шт.

27

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

1шт.

28

50-3483T3

HYD TUBE

TUBE - hydraulic drain

1шт.

29

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

34

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch flare branch x flare x adj O-ring boss, Includes: Ref. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

1шт.

37

31-2888

HOSE ASSY.

HOSE - hydraulic, pump to valve, 25 inch long

1шт.

38

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 39

1шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

40

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 41

1шт.

41

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

42

50-3506T1

HYD TUBE

TUBE - valve

1шт.

43

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch flare branch x flare x adj O-ring boss, Includes: Ref. 44

1шт.

44

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

45

31-3004

HOSE ASSY.

HOSE - hydraulic, pump to valve, 24 inch long, if used

1шт.

45

31-3022

HOSE ASSY.

HOSE - hydraulic, pump to valve, 21 inch long, if used

1шт.
