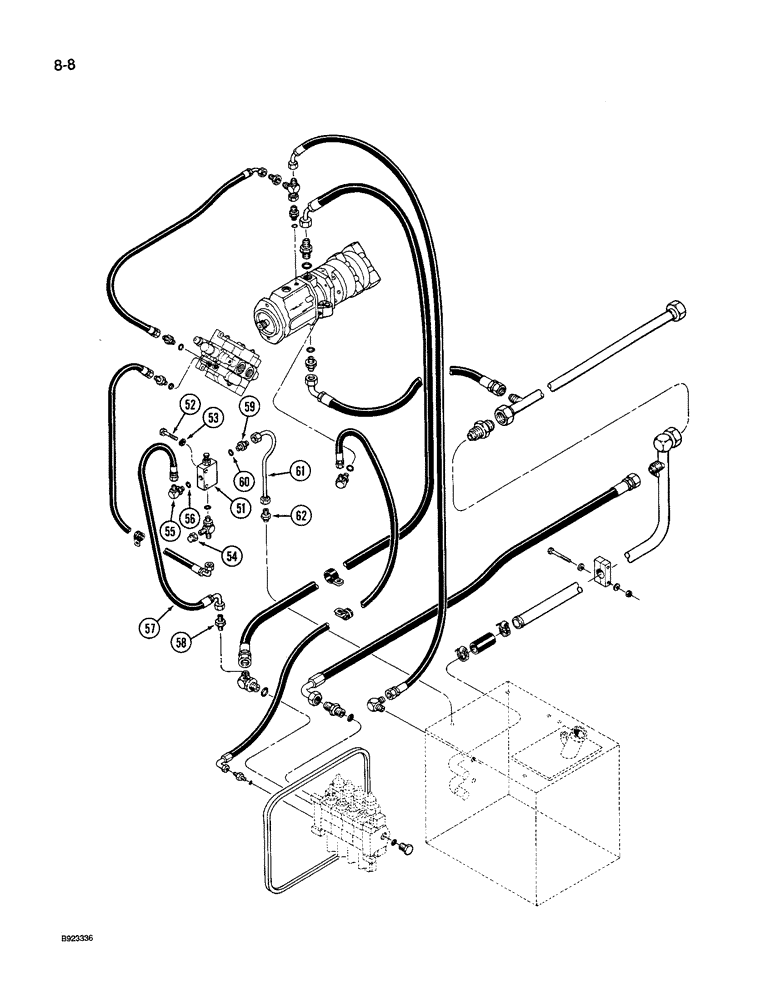

Запчасти Case IH 9260 (8-008) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE, P.I.N. JCB0028400 AND AFTER (CONTD) (08) - HYDRAULICS

51

50-3293T91

VALVE

ASSEMBLY - pressure reducing, See Figure 8-066

1шт.

52

426-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

- hex, 1/4 NC x 2 inch, grade 8

2шт.

53

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

54

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

1шт.

55

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 56

1шт.

56

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

57

31-1799

HOSE

- pressure reducing valve, 18 inch long

1шт.

58

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight, Includes: Ref. 60 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

59

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 60

1шт.

61

50-3507T1

HYD TUBE

TUBE - pressure reducing, Serial Range: valve-drain

1шт.

62

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/2 inch PT

1шт.

60

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
