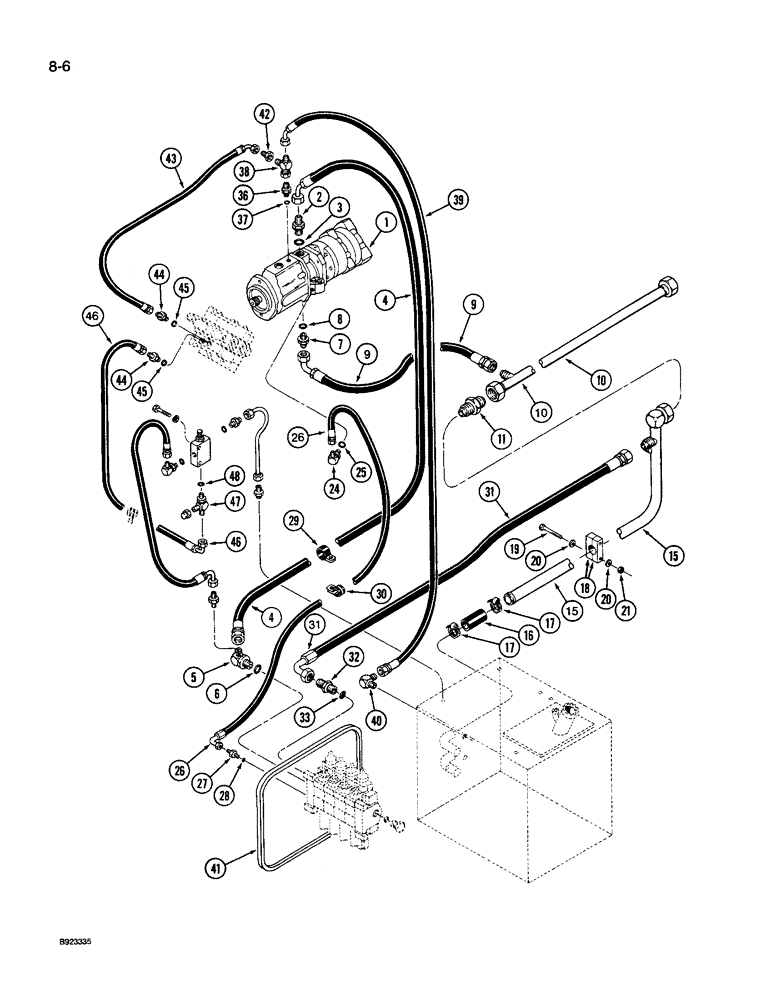

Запчасти Case IH 9260 (8-006) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE, P.I.N. JCB0028400 AND AFTER (08) - HYDRAULICS

1

50-3287T91

PUMP

ASSEMBLY - hydraulic, See Figure 8-030

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

4

31-2992

HOSE

- hydraulic, pump to valve, 54 inch long

1шт.

5

31-2695

ELBOW

- 45 degree adjustable, Includes: Ref. 6

1шт.

6

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

7

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, 1-5/16-12 flare x 1-5/8-12 inch O-ring, Includes: Ref. 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .116" Thk

1шт.

9

31-2990

HOSE

- hydraulic, pump to drain, 23 inch long

1шт.

10

50-3483T3

HYD TUBE

TUBE - hydraulic drain

1шт.

11

50-2565T1

VALVE

- check

1шт.

15

50-3484T1

HYD TUBE

TUBE - hydraulic, drain

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - hydraulic drain, 6 inch long (Order 1-4482T1 and, Serial Range: cut-length)

1шт.

17

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

18

50-2884T1

CLAMP

- tube, set

1шт.

19

426-448

BOLT,Hex, 1/4" - 20 x 3", Gr 8

2шт.

20

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

21

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

24

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj O-ring, Incl. Ref. 25

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

26

31-2612

HOSE ASSY.

HOSE - pump to control valve, 70 inch long

1шт.

27

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 28

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

29

31-1349

MOUNTING CLIP

CLAMP - hose retaining

1шт.

30

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

31

31-2989

HOSE

- hydraulic, valve to drain, 29 inch long

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 33

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

36

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 3/4 inch thread, Includes: Ref. 37

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

38

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

1шт.

39

31-3021

HOSE

- hydraulic, tank to pump, 68 inch long

1шт.

40

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

41

50-2535T1

GROMMET

- edge protector, 56-1/2 inch (Order 31-1785 and, Serial Range: cut-length)

1шт.

42

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

ADAPTER - reducing, 3/4-16 straight thread x 9/16-18 inch

1шт.

43

31-3003

HOSE ASSY.

HOSE - hydraulic, pump to valve, 26 inch long

1шт.

44

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 45

2шт.

45

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

46

31-3006

HOSE

- hydraulic, pressure reducing valve, 87 inch long

1шт.

47

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, Includes: Ref. 48

1шт.

48

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.
