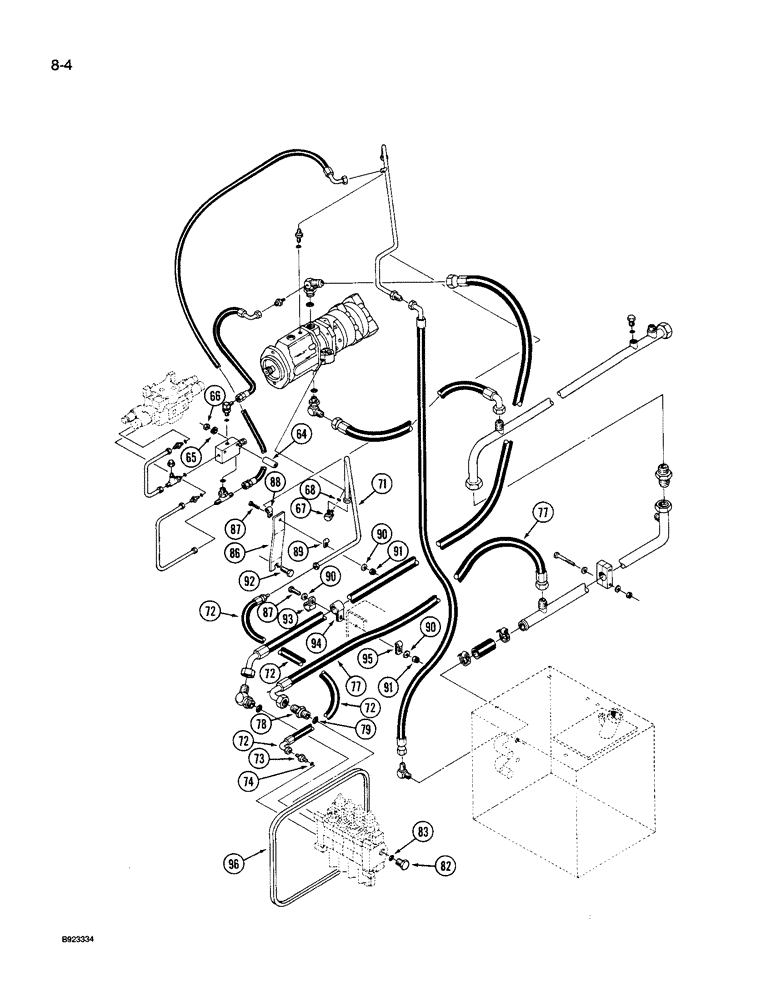

Запчасти Case IH 9260 (8-004) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE, PRIOR TO P.I.N. JCB0028400, 9240 AND 9260 TRACTOR (CONTD) (08) - HYDRAULICS

64

50-3312T1

SPACER

- mounting

1шт.

65

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

66

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

67

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree adjustable, 9/16 x 7/16 inch thread, Incl. Ref. 68

1шт.

68

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

71

50-3231T1

HYD TUBE

TUBE - pump, Serial Range: compensator-hose

1шт.

72

31-2863

HOSE ASSY.

HOSE - tube to control valve, 18 inch (Without three point hitch)

1шт.

72

31-2606

HOSE ASSY.

HOSE - tube to shuttle valve, 18 inch (With three point hitch), See Figure 8-050, Ref. 66

1шт.

73

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight, 9/16 inch thread, Incl. Ref. 74

1шт.

74

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

77

31-2921

HOSE ASSY.

HOSE - drain tube to control valve, 22 inch

1шт.

78

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 79

1шт.

79

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.

82

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 83 Hex Hd, 1 1/16"-12 ORB

1шт.

83

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

86

50-2883T2

BRACKET

- support, clamp

1шт.

87

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

88

31-1776

MOUNTING CLIP

CLAMP - retaining (Replaces 31-2488)

1шт.

89

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining, tube

1шт.

90

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

91

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

92

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

93

31-1348

CLAMP

- hose

1шт.

94

31-1349

MOUNTING CLIP

CLAMP - hose

1шт.

95

31-1776

MOUNTING CLIP

CLAMP - retaining (Replaces 31-2488)

1шт.

96

50-2535T1

GROMMET

- edge protector, 56-1/2 inch

1шт.

Order 31-1785 and cut to length.

1шт.

31-1785

GROMMET

- bulk roll, 1/2 inch, 10 foot roll

1шт.
