(1-014) - PICTORIAL INDEX, LUBE HYDRAULICS, WITHOUT PTO

Запчасти Case IH 9260 (1-014) - PICTORIAL INDEX, LUBE HYDRAULICS, WITHOUT PTO (00) - PICTORIAL INDEX

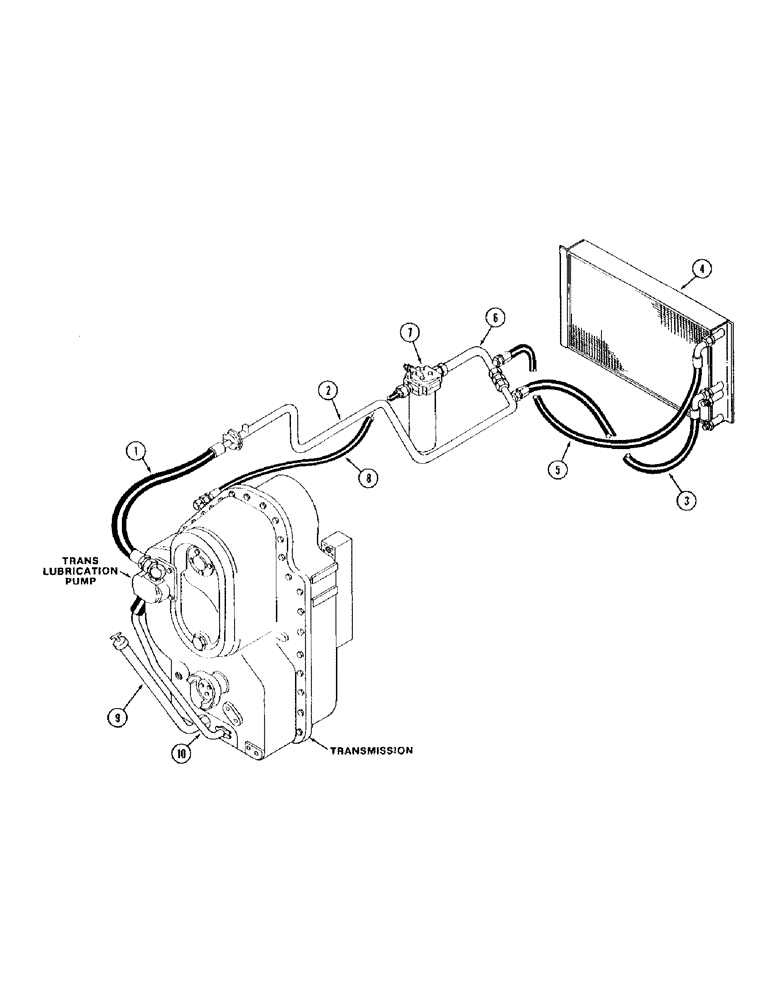

Схема запчастей Case IH 9260 - (1-014) - PICTORIAL INDEX, LUBE HYDRAULICS, WITHOUT PTO (00) - PICTORIAL INDEX
8
1
10
4
3
6
9
7
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Transmission Lubrication Supply Hose, Figure 6-044

1шт.

2

Transmission Lubrication Supply Hose, Figure 6-044

1шт.

3

Oil Cooler Supply Hose, Figure 6-044

1шт.

4

Oil Cooler, Figure 8-022

1шт.

5

Oil Cooler Return Hose, Figure 6-044

1шт.

6

Check Valve to Filter Tube, Figure 6-044

1шт.

7

Oil Filter, Figure 8-042

1шт.

8

Transmission, Figure 6-044

1шт.

9

Dipstick Tube, Figure 6-044

1шт.

10

Transmission to Pump Supply Tube, Figure 6-044

1шт.
