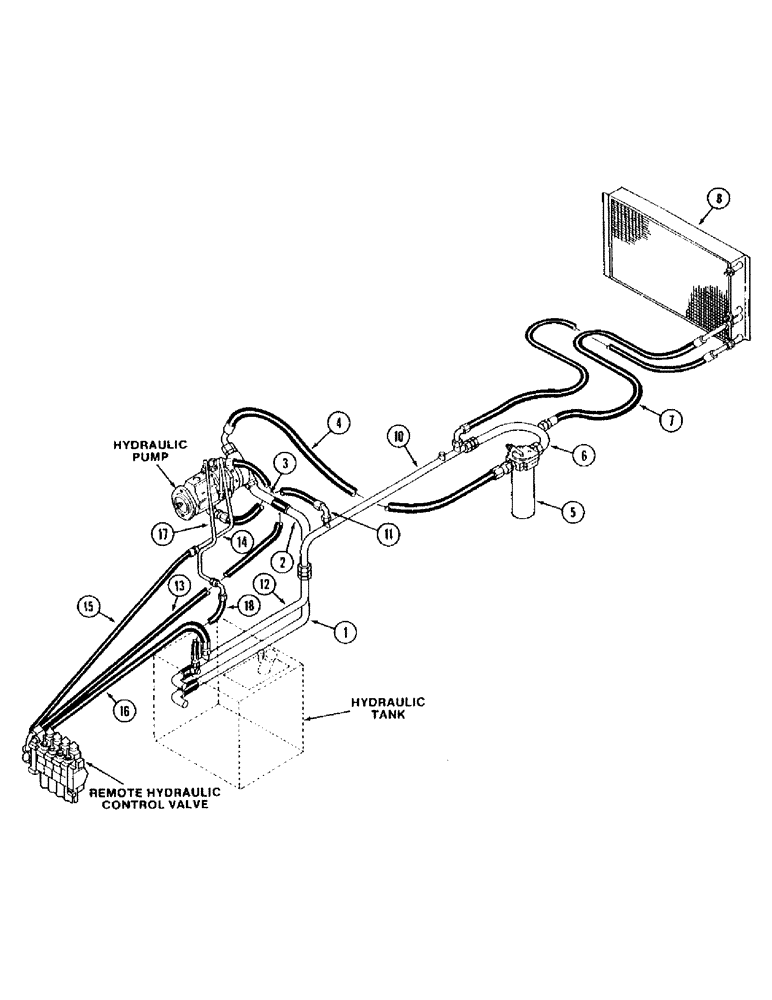

Запчасти Case IH 9260 (1-012) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Gear Pump Inlet Tube, Figure 8-014

1шт.

2

Gear Pump Inlet Tube, Figure 8-014

1шт.

3

Gear Pump Inlet Elbow, Figure 8-014

1шт.

4

Gear Pump to Filter Hose, Figure 8-014

1шт.

5

Oil Filter, Figure 8-042

1шт.

6

Oil Filter Outlet Tube, Figure 8-014

1шт.

7

Oil Cooler Supply Hose, Figure 8-022

1шт.

8

Oil Cooler, Figure 8-022

1шт.

9

Oil Cooler Return Hose, Figure 8-022

1шт.

10

Hydraulic Pump Supply Tube, Figure 8-016

1шт.

11

Hydraulic Pump Supply Hose, Figure 8-016

1шт.

12

Gear Pump Drain Tube, Figure 8-016

1шт.

13

Control Valve Supply Hose, Figure 8-016

1шт.

14

Hydraulic Pump Sensing Tube, Figure 8-016

1шт.

15

Hydraulic Pump Sensing Hose, Figure 8-016

1шт.

16

Control Valve Drain Hose, Figure 8-016

1шт.

17

Hydraulic Pump Drain Tube, Figure 8-016

1шт.

18

Hydraulic Pump Drain Hose, Figure 8-016

1шт.
