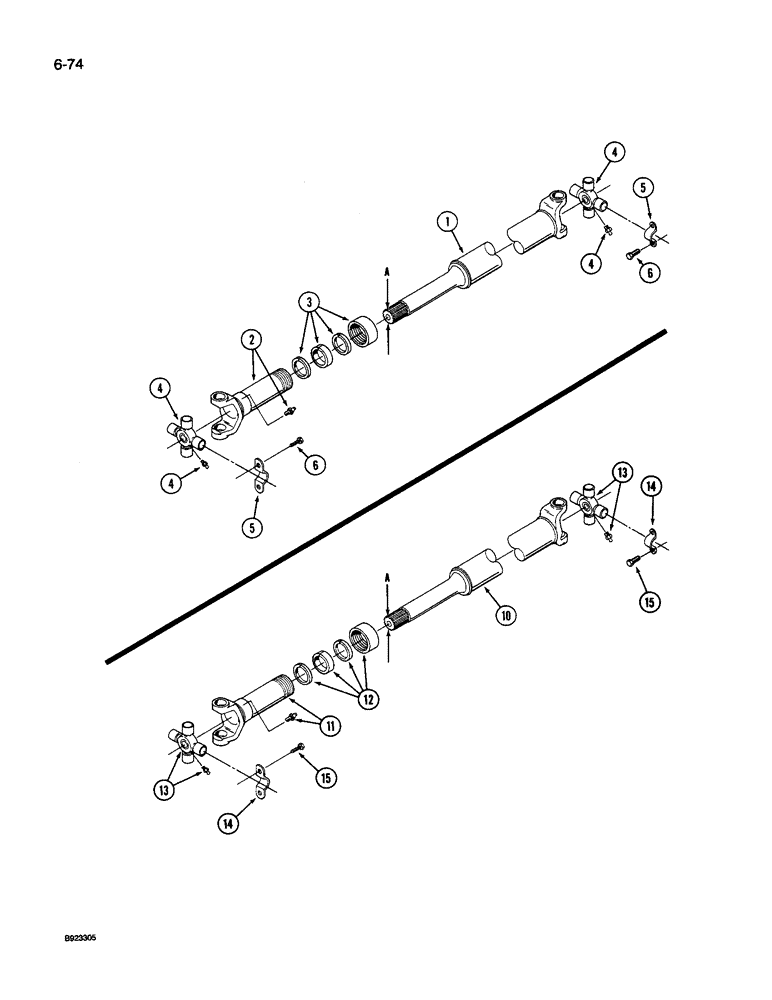

Запчасти Case IH 9260 (6-074) - POWER TAKEOFF DRIVE SHAFT (06) - POWER TRAIN

90-7236T91

DRIVE SHAFT

SHAFT ASSEMBLY - PTO drive, compressed length between centers of spiders is 68-7/8 inch, Includes: Ref. 1 - 4

1шт.

Check dimensions for spline size and overall compressed length of shaft before ordering repair parts.

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke,spline size is 1-1/2 inch (See dimension "A")

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

33-1002T1

SEAL ASSY.

SEAL - shaft retainer

1шт.

4

33-1003T2

UNIVERSAL JOINT

SPIDER - shaft

2шт.

5

90-6682T1

CLAMP

RETAINER - drive shaft (Replaces L116943)

4шт.

6

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

- special, 12 point head

8шт.

90-7222T91

DRIVE SHAFT

SHAFT ASSEMBLY - PTO drive, compressed length between centers of spiders is 69-3/8 inch, Includes: Ref. 10 - 13

1шт.

Check dimensions for spline size and overall compressed length of shaft before ordering repair parts.

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke,spline size is 1-3/4 inch (See dimension "A")

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

12

33-1001T1

SEAL RETAINER

SEAL - shaft retainer

1шт.

13

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

SPIDER - shaft

2шт.

14

L116943

SECURING STRAP

RETAINER - drive shaft

4шт.

15

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.
