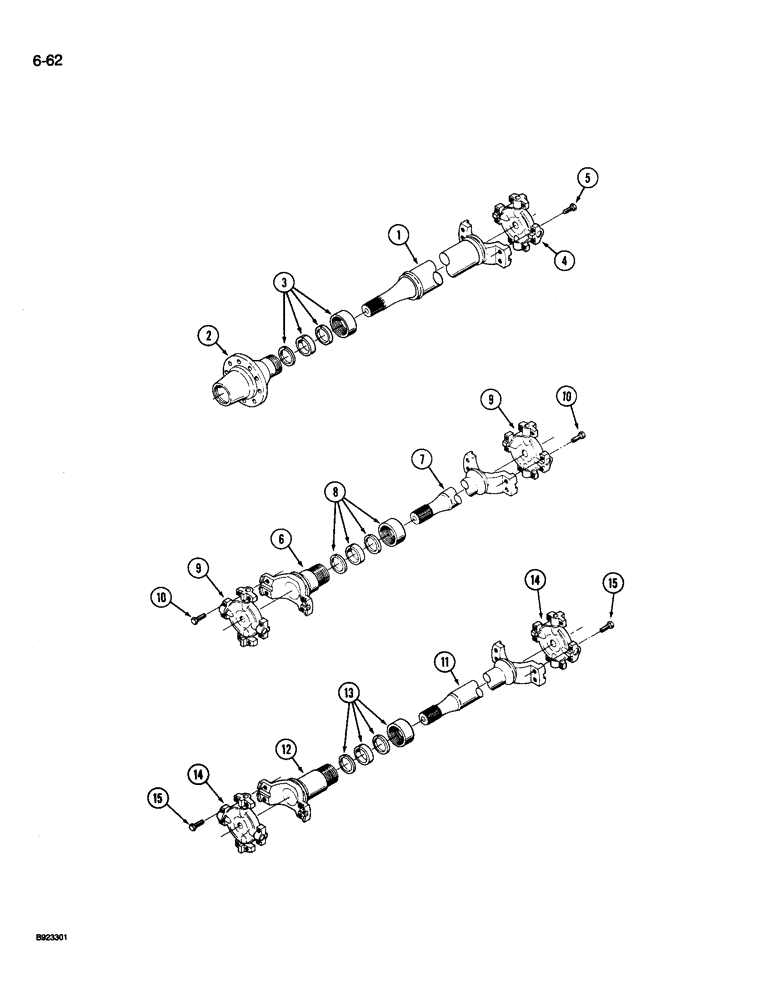

Запчасти Case IH 9260 (6-062) - DRIVE SHAFT, ENGINE TO TRANSMISSION, 9260 TRACTOR (06) - POWER TRAIN

90-6185T92

DRIVE SHAFT

SHAFT ASSEMBLY - input, drive, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

2-3843T1

RING, SET

SEAL - shaft retainer

1шт.

4

90-5882T2

U-JOINT SPIDER

SPIDER - shaft, 7C

1шт.

5

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

4шт.

90-7134T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke, front axle

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - tube, front axle

1шт.

8

2-3843T1

RING, SET

SEAL - shaft retainer, front axle

1шт.

9

90-5882T2

U-JOINT SPIDER

SPIDER - shaft, 7C, front axle

2шт.

10

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Front axle Hex, 1/2"-20 x 2", G8

8шт.

90-7136T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear axle, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke, rear axle

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - tube, rear axle

1шт.

13

2-3843T1

RING, SET

SEAL - shaft retainer, rear axle

1шт.

14

90-5882T2

U-JOINT SPIDER

SPIDER - shaft, 7C, rear axle

2шт.

15

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Rear axle Hex, 1/2"-20 x 2", G8

8шт.
