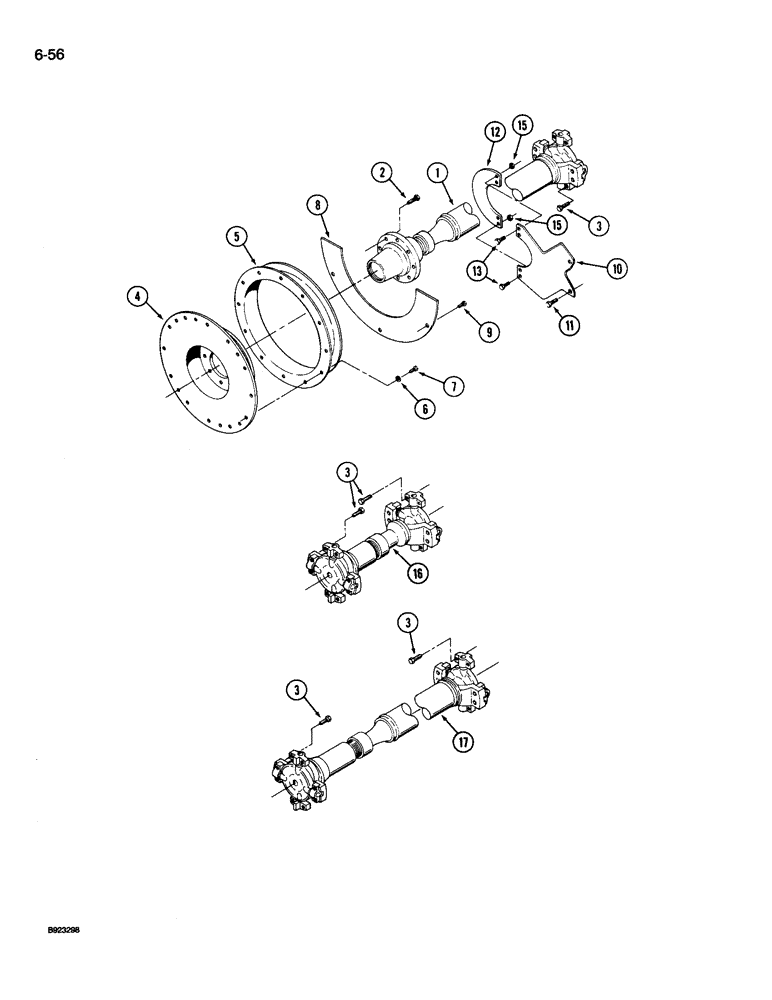

Запчасти Case IH 9260 (6-056) - DRIVE SHAFT MOUNTING, 9260 TRACTOR (06) - POWER TRAIN

1

90-6185T92

DRIVE SHAFT

ASSEMBLY - input, 7C, engine to transmission, See Figure 6-062

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

3

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

20шт.

4

90-1272T1

DAMPER

- vibration

1шт.

5

90-6190T1

LARGE PLATE

SLINGER - flywheel

1шт.

6

96-81003

WASHER,13/32" x 3/4" x .220", HDN

- flat, 13/36 x 3/4 x 7/32 inch

8шт.

7

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

8

90-6188T1

COVER

- flywheel housing

2шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

10

90-6657T2

SUPPORT

BRACKET - drive shaft guard

1шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

12

50-2852T1

LARGE PLATE

PLATE - drive shaft shield

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

15

27254R1

NUT

- hex lock, 5/16 inch NC

4шт.

16

90-7134T91

DRIVE SHAFT

ASSEMBLY - front axle, See Figure 6-062

1шт.

17

90-7136T91

DRIVE SHAFT

ASSEMBLY - rear axle, See Figure 6-062

1шт.
