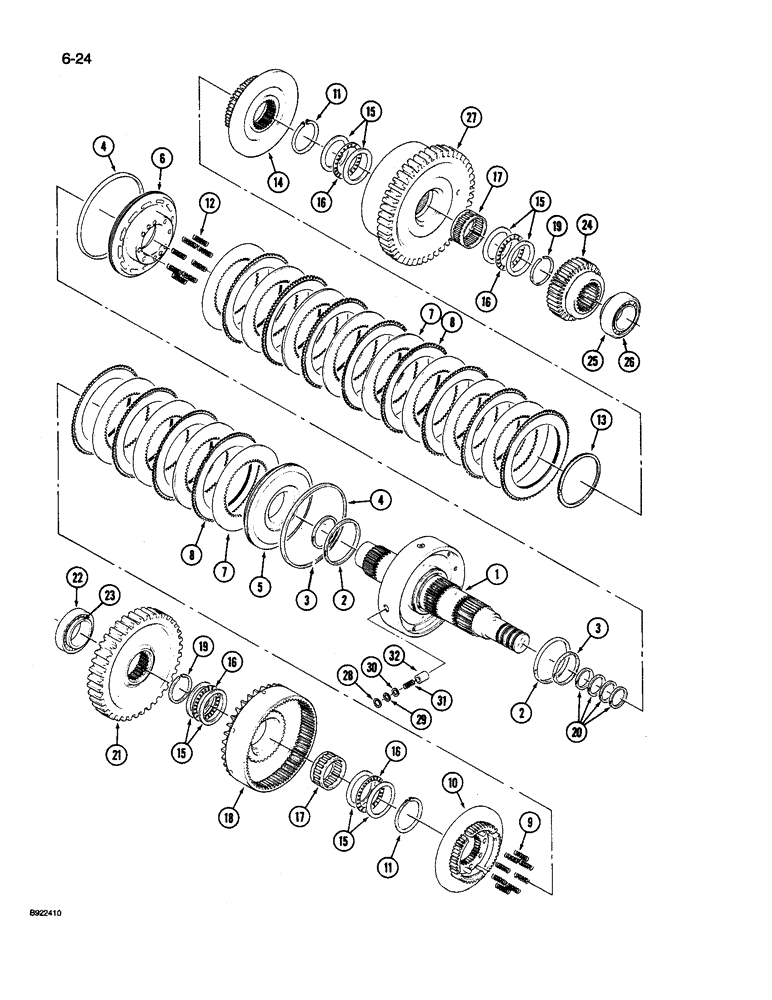

Запчасти Case IH 9260 (6-024) - TRANSMISSION, 9 INCH CLUTCH PACK (06) - POWER TRAIN

90-7354T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9240 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 32

1шт.

90-7015T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9250 and 9260 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 32

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S5000S00H

CLUTCH

CLUTCH PACK ASSEMBLY - 9 inch (9240 Tractor), Includes: Ref. 1 - 32

1шт.

S5000S00F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 9 inch (9250 and 9260 Tractor), Includes: Ref. 1 - 32

1шт.

1

S5900S00F

SHAFT ASSY.

SHAFT - drum

1шт.

2

S5520S00F

RING

RING - piston

2шт.

3

S5510S00F

RING

RING - piston

2шт.

4

S4430S00F

RING

RING - sealing

2шт.

5

33-1523T1

PISTON

PISTON - clutch

1шт.

6

33-1522T1

RACE

PISTON - clutch

1шт.

7

S5120S00F

CLUTCH DISC

CLUTCH DISK PLATE - flat steel, 2.6 mm thick

1шт.

For 9240 Tractor, Ref. 7, a total of 8 steel plates must be used. For 9250 and 9260 Tractor, Ref. 7, a total of 12 steel plates must be used.

1шт.

7

S5130S00F

CLUTCH DISC

CLUTCH DISK PLATE - flat steel, 2.4 mm thick

1шт.

For 9240 Tractor, Ref. 7, a total of 8 steel plates must be used. For 9250 and 9260 Tractor, Ref. 7, a total of 12 steel plates must be used.

1шт.

8

33-1520T1

NOTCHED DISK

PLATE - faced

12шт.

9

S5550S00F

SPRING

SPRING - return, piston

8шт.

10

S5850S00H

HUB

HUB - clutch (9240 Tractor) (35-1930T91 kit only)

1шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

10

S5850S01G

HUB

HUB - clutch (9250 and 9260 Tractor) (35-1931T91 kit only)

1шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

11

S5100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

12

S5540S00F

SPRING

SPRING - return, piston

8шт.

13

S5490S00F

RING

RING - retaining

1шт.

14

S5840S00H

HUB

HUB - clutch (9240 Tractor) (35-1930T91 kit only)

1шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

14

S5840S01G

HUB

HUB - clutch (9250 and 9260 Tractor) (35-1931T91 kit only)

1шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

15

S5230S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

16

S5050S00F

THRUST BEARING

BEARING - thrust

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

18

S5080S00F

PINION

GEAR - clutch (37 tooth)

1шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

19

S5040S00F

RING

RING - retaining

2шт.

20

S3070S00F

RING

RING - sealing

4шт.

21

S5060S00F

PINION

GEAR - input (43 tooth)

1шт.

22

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

1шт.

23

ST2016A

BEARING

CONE - bearing

1шт.

24

S5270S00F

PINION

GEAR - drive (21 tooth)

1шт.

25

90-6579T1

BEARING CUP

CUP - bearing

1шт.

26

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

CONE - bearing

1шт.

27

S5280S00F

GEAR

GEAR - clutch (46 tooth)

1шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

28

SM9222160

RING, SNAP

RING SNAP RING - snap

2шт.

29

S3220S00F

SHIM

SHIM - valve

1шт.

30

S3230S00F

SHIM

SHIM - valve

1шт.

31

S3210S00F

SPRING

SPRING - valve

2шт.

32

S3200S00F

DRAIN VALVE

VALVE - drain

2шт.

35-1930T91

KIT

KIT - transmission, rebuild (9240 Tractor), Includes: Ref. 10, 11, 14, 18 and 27 and parts on Figures 6-018, 6-020, 6-022, 6-028 and all parts of 33-1559T1 gasket kit on Figure 6-030

1шт.

35-1931T91

KIT

KIT - transmission, rebuild (9250 and 9260 Tractor), Includes: Ref. 10, 11, 14, 18 and 27 and parts on Figures 6-018, 6-020, 6-022, 6-028 and all parts of 33-1559T1 gasket kit on Figure 6-030

1шт.
