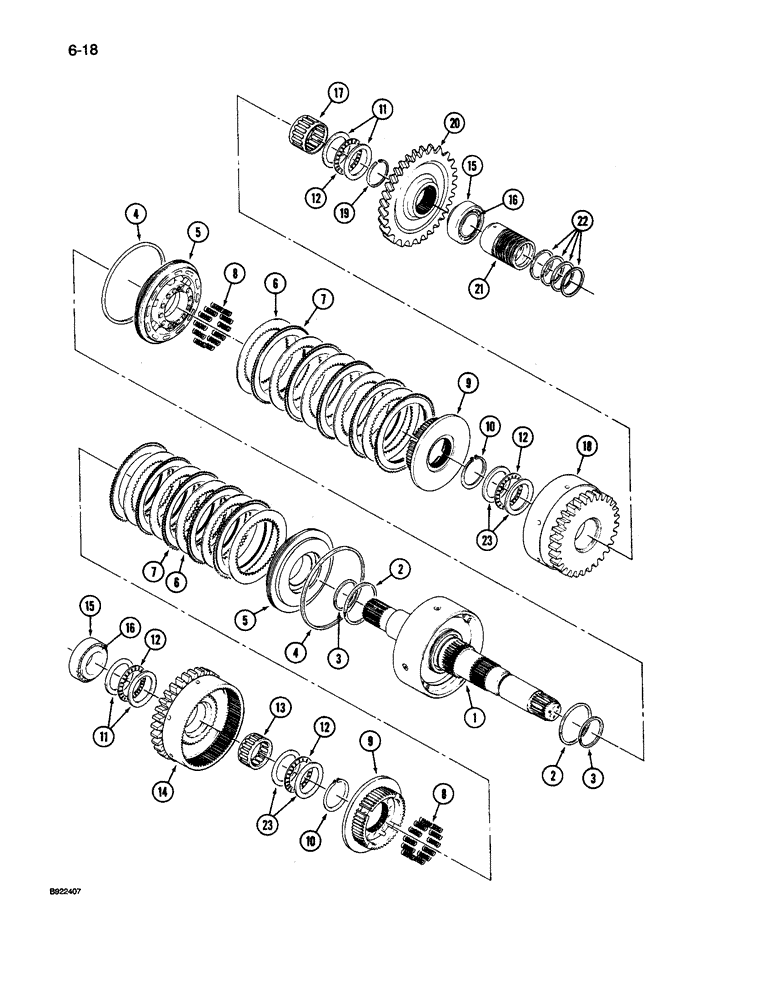

Запчасти Case IH 9260 (6-018) - TRANSMISSION, 7 INCH INPUT CLUTCH PACK (06) - POWER TRAIN

90-7354T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9240 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 23

1шт.

90-7015T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9250 and 9260 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 23

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S2000S01H

CLUTCH

CLUTCH PACK ASSEMBLY - 7 inch input (9240 Tractor), Includes: Ref. 1 - 23

1шт.

S2000S01A

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 7 inch input (9250 and 9260 Tractor) (Replaces S2000S01F), Includes: Ref. 1 - 23

1шт.

1

S2900S01F

SHAFT ASSY.

SHAFT - drum

1шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

2

S2620S00F

RING

RING - piston

2шт.

3

S2610S00F

RING

RING - piston

2шт.

4

S2630S00F

RING

RING - sealing

2шт.

5

33-1521T1

PISTON

PISTON - clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - steel, flat, 2.4 mm thick

1шт.

For 9240 Tractor, Ref. 6, a total of 6 steel plates must be used. For 9250 and 9260 Tractor, Ref. 6, a total of 10 steel plates must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - steel, flat, 2.1 mm thick

1шт.

For 9240 Tractor, Ref. 6, a total of 6 steel plates must be used. For 9250 and 9260 Tractor, Ref. 6, a total of 10 steel plates must be used.

1шт.

7

33-1518T1

NOTCHED DISK

PLATE - faced

10шт.

8

S2640S00F

SPRING

SPRING - return, piston

24шт.

9

S2850S00H

HUB

HUB - clutch (9240 Tractor) (35-1930T91 kit only)

2шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

9

S2850S00F

HUB

HUB - clutch (9250 and 9260 Tractor) (35-1931T91 kit only)

2шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

10

S2100S00F

RING, SNAP

RING SNAP RING - snap, external retaining

2шт.

Part of transmission rebuild kits P/N 35-1930T91 (9240 Tractor) and P/N 35-1931T91 (9250 and 9260 Tractor).

1шт.

11

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

WASHER - thrust, bearing (3.2 mm thick)

4шт.

12

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - thrust

4шт.

13

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

14

S2040S00F

PINION

GEAR - drive (32 Tooth)

1шт.

15

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

16

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - bearing

2шт.

17

S2210S00F

BEARING, ROLLER

BEARING - roller

1шт.

18

S2280S00F

PINION

GEAR - drive (29 Tooth)

1шт.

19

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

20

S2270S01F

PINION

GEAR - input (41 Tooth)

1шт.

For transmission prior to S/N 0C137 order 35 tooth gear S2270S00F.

1шт.

21

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

22

S2250S00F

SEALING RING

RING - sealing

4шт.

23

S2220S00F

THRUST WASHER

WASHER - thrust, bearing (2.4 mm thick)

4шт.

35-1930T91

KIT

KIT - transmission, rebuild (9240 Tractor), Includes: Ref. 1, 9, 10, 20 and 23 and parts on Figures 6-020, 6-022, 6-024, 6-028 and all parts of 33-1559T1 gasket kit on Figure 6-030.

1шт.

35-1931T91

KIT

KIT - transmission, rebuild (9250 and 9260 Tractor), Includes: Ref. 1, 9, 10, 20 and 23 and parts on Figures 6-020, 6-022, 6-024, 6-028 and all parts of 33-1559T1 gasket kit on Figure 6-030.

1шт.
