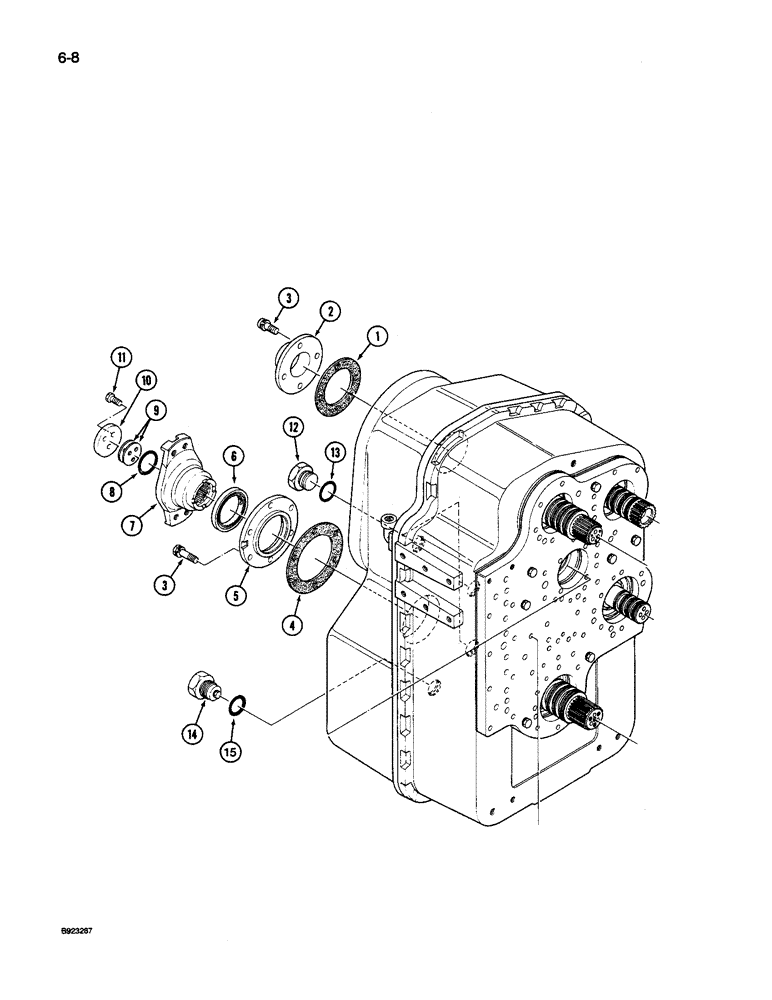

Запчасти Case IH 9250 (6-008) - TRANSMISSION (06) - POWER TRAIN

90-7354T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9240 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 15

1шт.

90-7015T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9250 and 9260 tractor, complete parts list list on Figures 6-006 through 6-034, Includes: Ref. 1 - 15

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

1

33-1470T1

GASKET

GASKET - PTO shaft cover

1шт.

2

33-1442T1

COVER

COVER - PTO shaft (Without PTO)

1шт.

3

SM8124230

BOLT

BOLT - hex, 12 mm - 1.25 x 30 mm

10шт.

4

33-1417T1

GASKET

GASKET - bearing retainer

1шт.

5

33-1418T1

RETAINER

RETAINER - bearing

1шт.

6

33-1428T1

OIL SEAL

SEAL - output shaft

1шт.

7

90-7482T1

FORK

YOKE - output, rear (9240 Tractor)

1шт.

7

33-1421T1

YOKE

UNIVERSAL JOINT YOKE YOKE - output, rear (9250 and 9260 Tractor)

1шт.

8

33-1422T1

O-RING

O-RING - yoke sealing

1шт.

9

33-1450T1

SHIM

SHIM - yoke, 0.10 mm thick

1шт.

9

33-1451T1

SHIM

SHIM - yoke, 0.30 mm thick

1шт.

10

33-1432T1

WASHER

WASHER - yoke retainer

1шт.

11

SM8134235

BOLT

BOLT - hex, 12 mm - 1.25 x 35 mm

3шт.

12

S1010S00F

PLUG, DRAIN

PLUG - hex, housing, Includes: Ref. 13

3шт.

13

S1080S00F

O-RING

O-RING - plug

1шт.

14

S1090S00F

PLUG

PLUG - magnetic, Includes: Ref. 15

1шт.

15

S1080S00F

O-RING

O-RING - plug

1шт.
