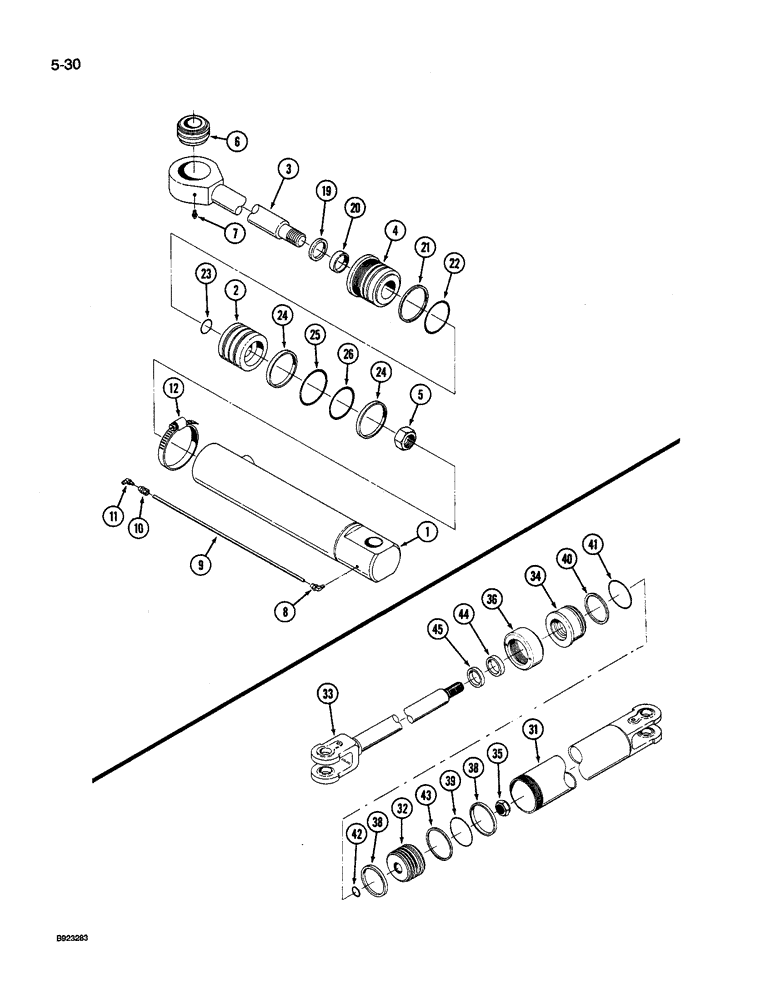

Запчасти Case IH 9250 (5-030) - STEERING CYLINDER, USED WITH 9240 AND 9260 TRACTORS (05) - STEERING

50-3272T94

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 26

1шт.

1

50-3273T4

HYD CYL SLEEVE

BARREL - steering cylinder

1шт.

2

50-3026T1

JACK PISTON

PISTON - cylinder

1шт.

3

50-3439T1

PISTON ROD

ROD - cylinder (Replaces 50-3271T3)

1шт.

4

50-3336T1

CYLINDER END CAP

GUIDE - rod

1шт.

5

19-5578

LOCK NUT

- special, hex lock

1шт.

6

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self aligning

1шт.

7

31-1093

FITTING

- grease, 1/4 inch NF

1шт.

8

31-599

ELBOW

- 90 degree, 1/8 inch PT x 1/4 tube

1шт.

9

50-3335T2

TUBE

- grease

1шт.

10

31-2785

FITTING

CONNECTOR - straight, 1/8 inch PT x 1/4 tube

1шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

12

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

CLAMP - adjustable, 3-3/4 to 4-5/8 inch diameter

1шт.

50-3420T1

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 19 - 26

1шт.

19

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod

1шт.

20

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- rod

1шт.

21

50-2299T1

SEAL,69.85mm ID x 76.2mm OD x 1.09mm Thk

- backup

1шт.

22

18-1006

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- seal, rod guide

1шт.

23

18-1164

O-RING,1" ID x 40544" OD x 1"

O-RING - seal, piston

1шт.

24

2-1287

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 6.35mm Thk

RING - wear, piston

2шт.

25

18-1010

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- seal, piston

1шт.

26

2-1289

SEAL,71.02mm ID x 76.86mm OD x 2.92mm Thk

- piston

1шт.

50-2292T94

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, used with 9250 tractor, Includes: Ref. 31 - 45

1шт.

31

50-2293T2

HYD CYL SLEEVE

BARREL - cylinder body, used with 9250 tractor

1шт.

32

50-3026T1

JACK PISTON

PISTON - cylinder, used with 9250 tractor

1шт.

33

50-3243T2

PISTON ROD

ROD - cylinder, used with 9250 tractor

1шт.

34

50-2297T1

CYLINDER END CAP

GUIDE - rod, used with 9250 tractor

1шт.

35

19-5578

LOCK NUT

- special, hex lock, used with 9250 tractor

1шт.

36

50-2298T1

CLAMP

COLLAR - locking, rod guide, used with 9250 tractor

1шт.

35-1592T91

SEAL KIT

KIT - seal, cylinder, used with 9250 tractor, Includes: Ref. 38 - 45

1шт.

38

2-1287

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 6.35mm Thk

RING - wear, piston, used with 9250 tractor

2шт.

39

2-1289

SEAL,71.02mm ID x 76.86mm OD x 2.92mm Thk

- piston, used with 9250 tractor

1шт.

40

50-2299T1

SEAL,69.85mm ID x 76.2mm OD x 1.09mm Thk

- backup, seal, used with 9250 tractor

1шт.

41

18-1006

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- seal, rod guide, used with 9250 tractor

1шт.

42

18-1164

O-RING,1" ID x 40544" OD x 1"

O-RING - seal, piston, used with 9250 tractor

1шт.

43

18-1010

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- seal, piston, used with 9250 tractor

1шт.

44

1-7796

SEAL

- rod, used with 9250 tractor

1шт.

45

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, used with 9250 tractor

1шт.
