(5-026) - STEERING CONTROL VALVE, 9250 TRACTOR

Запчасти Case IH 9250 (5-026) - STEERING CONTROL VALVE, 9250 TRACTOR (05) - STEERING

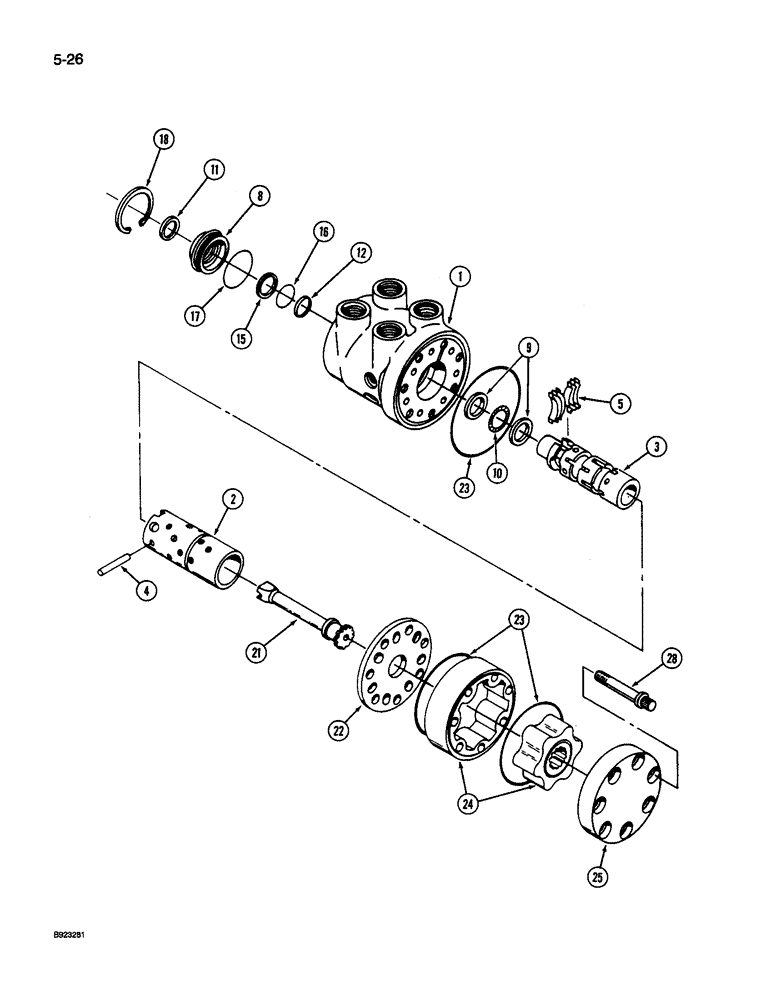

Схема запчастей Case IH 9250 - (5-026) - STEERING CONTROL VALVE, 9250 TRACTOR (05) - STEERING
22
1
17
23
9
2
12
21
18
24
4
11
8
5
28
16
10
15
25
3
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

50-2304T91

UNIT

VALVE ASSEMBLY - control steering, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering

6шт.

8

50-2701T1

RETAINER

- front

1шт.

9

D82804

RACE

WASHER - thrust, bearing

2шт.

10

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

11

18-137

OIL SEAL

- input

1шт.

12

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

- teflon (Replaces 50-2702T1)

1шт.

15

50-2703T1

BACK-UP RING

RING - backup

1шт.

16

50-2704T1

O-RING

- seal

1шт.

17

50-2705T1

O-RING

- seal

1шт.

18

D77388

SNAP RING,2.375", Int, #237

Ring, Snap, 2.375", Int, #237

1шт.

21

50-2706T1

SHAFT

- drive

1шт.

22

50-2707T1

WEAR PLATE

PLATE - wear

1шт.

23

50-2708T1

O-RING

- seal

3шт.

24

50-2709T1

GEROTOR

- matched set

1шт.

25

50-2710T1

CAP

- end, steering valve

1шт.

28

19-1716

12 PT SCREW,Flg, 1/2" - 20 x 3", Gr 8

BOLT - 12 point flanged, 1/2 NF x 3 inch, grade 8

7шт.
