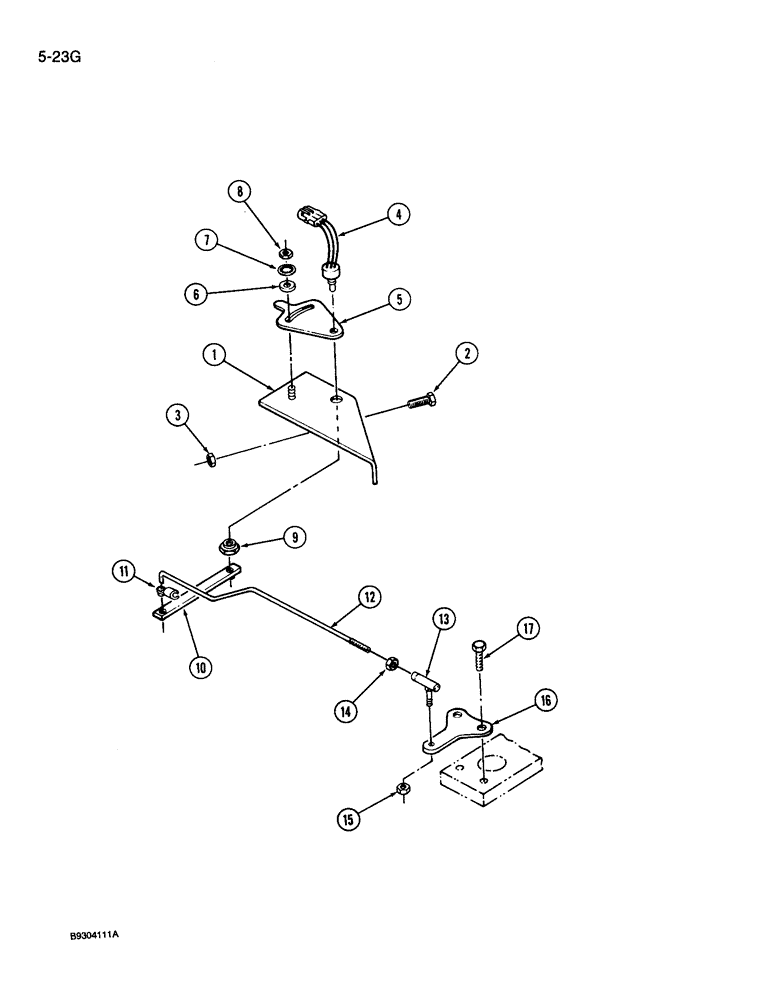

Запчасти Case IH 9250 (5-023G) - STEERABLE AXLE CONTROLS, POTENTIOMETER MOUNTING AND LINKAGE (05) - STEERING

1

70-6493T1

BRACKET

Mounting, Potentiometer

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

4

20-2322T1

POTENTIOMETER

Electrical, See Figure 4-087A, Ref. 23

1шт.

5

60-6118T1

BRACKET

Potentiometer Adjusting

1шт.

6

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

7

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, internal tooth, 1/4 inch

1шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

9

60-6119T1

NUT

Potentiometer

1шт.

10

70-4678T1

LEVER

Potentiometer, Actuating

1шт.

11

60-2404T1

RETAINER

- actuating rod

1шт.

12

70-6505T1

STEM

Rod, actuating, Potentiometer Lever

1шт.

13

6-1431

BALL JOINT

JOINT - ball

1шт.

14

225-14210

NUT,#10-32

1шт.

15

9411893

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 inch NF

1шт.

16

70-6087T1

SUPPORT

BRACKET - mounting, ball joint

1шт.

17

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.
